Type BL (Mild Steel)
Verified by manufacturer 10 days ago
BL-S-1
BL-S-1
Industrial standard mild steel fixed vertical ladder, in lengths between 2.0 and 6.0 metres (other sizes to order).
Application
Suitable for industrial use when moving between platforms at differing heights.
Description
Galvanized steel, industrial standard fixed vertical ladder, available to suit floor to ceiling heights of between 2–6 m (special sizes available upon request).
Features and benefits:
- Manufactured to meet the requirements of BS 4211.
- LadderUP® safety post also available for use with the ladder.
- Stiles: 50 x 10 mm flat bar.
- Rung: 20 mm round bar.
- Stand-off brackets: 50 x 10 mm flat bar.
- Overall ladder width: 488 mm.
General information
Finish | Galvanized |
Material | Steel |
Uniclass | |
CAWS | L35/130 Ladder system |
Product range |
Specification data - Permanently-fixed vertical ladder systems
System accessories | None.LadderUP® safety post. |
Product Reference | BL-S-1 Guidance for specification option: For 2.0–2.8 m height, 35–41 kg weight (approximate). |
Dimensions – height | 2.0–2.8 m height. |
Nominal weight | 35–41 kg weight (approximate). |
Sustainability data
Material | Steel |
Literature
TYPE BL Fixed Vertical Ladder - No Safety Cage

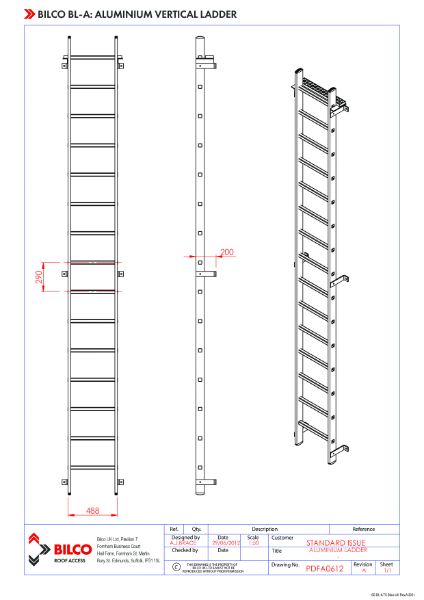

SUBMITTAL DRAWINGS - TYPE BL FIXED LADDER
