Type 300

Description

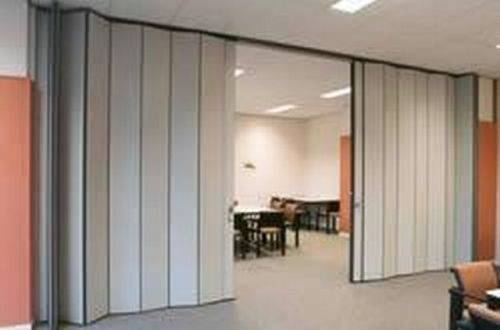

Timber sliding folding shutter doors.

  • Top hung or bottom running.
  • Concealed steel pantograph frame with solid timber framing and panels to both sides. Wide choice of panel finishes available from manufacturer's standard range.
  • Suitable for internal use only.

Installation size:

  • Height: up to 3.7 m.
  • Width: unlimited.

General information

Uniclass 2015

Pr_25_71_57_80 Sliding stacking panel partitionsPrimary

CAWS

L20/535 Sliding folding shutter doors

Specification data - Sliding stacking panel partitions

Product Reference

Type 300

Partition assembly

See drawing ___

See schedule ___

Track type

Bottom running

Top hung, exposed track, with floor guide

Top hung, exposed track, no floor guide

Top hung, concealed track, with floor guide

Top hung, concealed track, no floor guide

Panel

-

Panel Type

325

350

Stacking layout

Single unit

Bi-parting

Finish

Veneer. Species, cut, finish ___

Melamine. Colour ___

Laminate. Range, colour, texture ___

Factory spray painted. Paint type, colour ___

Leading edge fittings

Flush pull handle and roller catch as standard

Flush pull handle and roller catch with lock

Standard product features

Panels:

  • Thickness: 100 mm when unfurled.
  • Width: to suit application.
  • Centre hung only.
  • Top and bottom rubber sweep strips.
  • Leading profile, track, wall jamb, handles: satin anodized aluminium.
  • Hinges: satin anodized aluminium with loose pins and silicon rubber seals.

Acoustic performance:

  • Can be used to limit noise transmission between rooms.
  • Type 300 partitions have been tested to achieve sound reduction ratings of up to Rw 39 dB, measured in accordance with EN ISO 140 - 3. Insulation typically related to panel weight. Average achieved site insulation typically less than laboratory conditions.

Fire performance:

  • Not available fire rated.

Product Options

Panel type:

  • 325. When unfurled, adjacent panels are canted at shallow angles, with shadow gaps between pairs.
  • 350. When unfurled, adjacent panels sit flush, with shadow gaps between pairs.

Panel finish:

  • Veneer. Manufacturer's range.
  • Melamine. Coated board type. Manufacturer's range.
  • Laminate. Manufacturer's range.
  • Factory spray painted.
