Type 1 Manual Sliding Gate
Verified by manufacturer 20 days ago
QA Certificate
Certificate type
QA Certificate
Certificate type
QA Certificate
Certificate type
Manual sliding security gate.
Application
Our Manual Sliding Security Gates (Type 1) are of a heavy duty design and construction. They are available in a cantilever style for spans of up to 9.5 metres (single leaf) or 19 metres (double leaf).
Description
A robust and heavy duty design, the CE approved Type 1 Manual Sliding Gate delivers high performance levels and is available in two styles:
- Cantilever for spans of up to 9.5 m (single leaf) or 19 m (double leaf);
- Tracked for spans up to 15 m (single leaf) or 30 m (double leaf).
The double roller assembly located at the top and bottom of the gate ensures maximum rolling efficiency when opening and closing.
UKCA & CE.
General information
Color | Black Blue Green Yellow White |
Finish | Other Guidance for specification option: Manufacturer's standard - three coat paint treatment, insert colour requirements. Zinc plated |
Material | Steel Guidance for specification option: Rectangular hollow section Manufacturer guidanceFrame: |
Shape | Other |
Length | Bespoke |
Width | Bespoke Manufacturer guidanceSpan. |
Height | Bespoke |
Warranty description | One year |
Uniclass | |
CAWS | Q40/45 Proprietary gates Q40/570 Proprietary gates and posts Q50/130 Gate Q50/20 Gate |
SKU Code | N/A |
Specification data - Sliding vehicular barriers
Classification data | |
Format | Cantilevered, sliding. |
Barrier dimension | |
Span | 9.5 m. Guidance for specification option: Cantilever. 15 m. Guidance for specification option: Tracked. |
Barriers | |
Material | Steel, rectangular hollow section. Manufacturer guidanceFrame: |
Finish as delivered | |
Applied finish | Manufacturer's standard. Guidance for specification option: Three coat paint treatment, insert colour requirements. Galvanized. Zinc coated. |
Accessories | None. Barbed wire. Rotor spikes. |
Infill | Bar. Louvre. Mesh. Palisade. Tube. Wood. |
Sustainability data
Material | Steel Guidance for specification option: Rectangular hollow section Manufacturer guidanceFrame: |
Product certifications
Literature

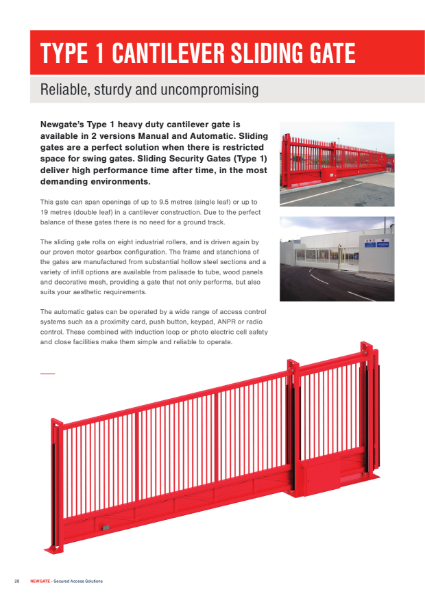

Type 1 Sliding Gate
Case studies
Royal Residences
Elstree Studios
Alexandra Dock – Kings Lynn
