Twin Plus Aluminium Trunking

Verified by manufacturer 25 days ago

Marshall-Tufflex Ltd

An extra deep cable management solution incorporating two large segregated high capacity compartments.

Jump to:
+44 (0)1424 856600 Website

Application

Suitable for use in dado and skirting applications.

Description

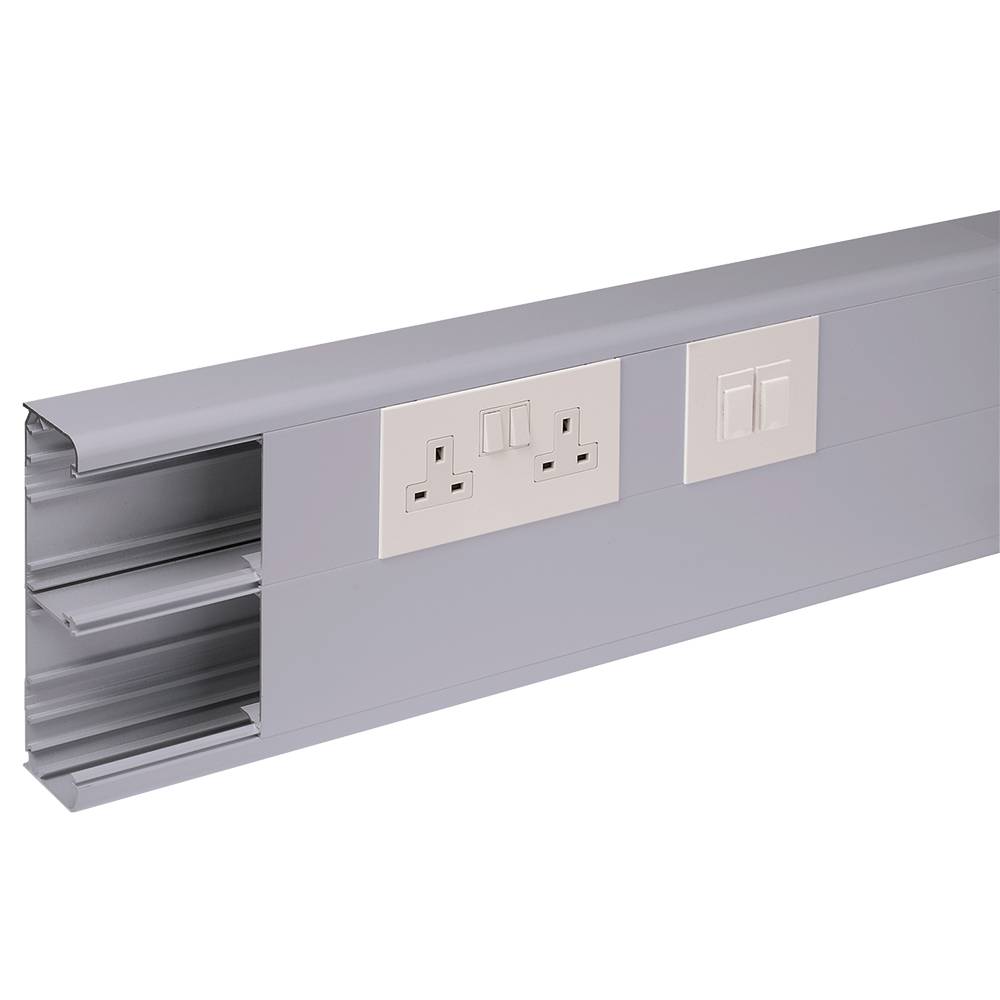

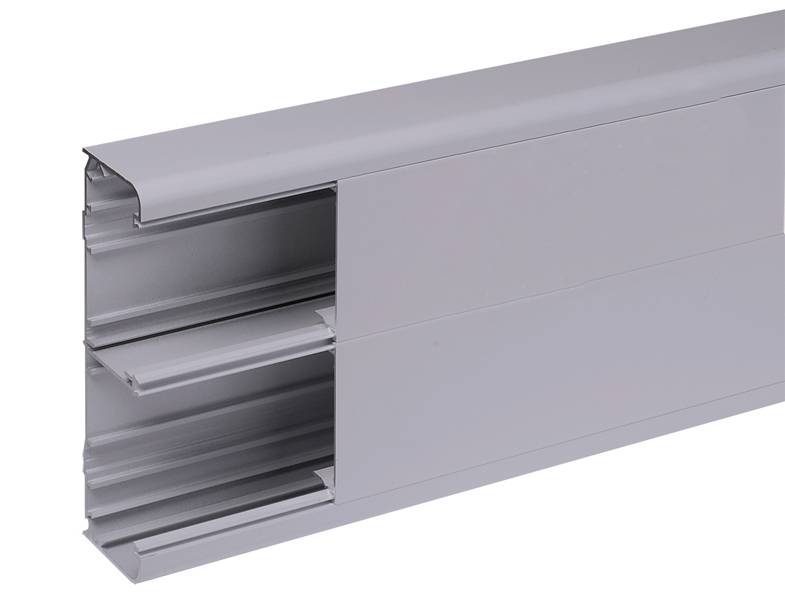

An extra deep cable management solution incorporating two large segregated high capacity compartments. Specifically designed for carrying large quantities of Cat 7a data cabling.


Features and benefits:

  • Two large permanent segregated compartments.
  • Each compartment can be subdivided.
  • Bends angles and tees with a large bend radius.
  • Includes a range of clip-on fittings with built-in overlaps.
  • Fully compatible with Sterling flush power and data accessories.
  • All fittings are polycarbonate.
  • Available in silver grey as standard.
  • Aluminium systems specified with polycarbonate fittings meet accepted requirements for LS0H.
  • Individual tamper proof covers for each compartment.
  • Flush fitting accessories.
  • First class EMC/EMI screening performance.
  • Built in cable tray.
  • Fabricated flat tee’s and angles.
  • Part M boxes.
  • CE and UKCA marked.


Data information:

  • Compliant up to Cat 7a.
  • 50 mm bend radius fittings.
  • Adjustable data box 32-47 mm.
  • Screened divider and data boxes.


Note: Allowance must be made for earthing the trunking system to comply with the current version of the BS 7671 Wiring Regulations.

General information

Color

Silver

Guidance for specification option:

Silver grey (RAL9006).

Finish

Powder-coated

Material

Aluminium

Guidance for specification option:

Extruded aluminium.

Shape

Rectangle

Length

3000 mm

Width

57 mm

Height

210 mm

Uniclass

Pr_65_70_11_96 Wall and ceiling-mounted cable trunking and ductingPrimary

CAWS

V90/350 Cable trunking and cable ducting for wall and ceiling mounting

V90/350 Cable trunking and cable ducting for wall and ceiling mounting

Specification data - Wall and ceiling-mounted cable trunking and ducting

Standards

To BS EN 50085-1:2005+A1:2013 BS EN 50085-2-1:2006+A1:2011; BS 7671:2018; IEC 61084-1:2017; IEC 61084-2-1:2017 and BS 5733:2010+A1:2014.

Installation position

Surface mounted on the wall.

Resistance to flame propagation

Non-flame-propagating.

Protection by enclosure

-

Protection against ingress of solid objects (minimum)

IP4X.

Screening

Aluminium containment will protect all internal circuits from external electromagnetic interference.

Guidance for specification option:

For internal segregation and screening, use a screened dividing fillet.

Sizes

210 x 57 mm.

Compartments

Two.

Accessories and fittings

-

Types

Not required.

Coupler.

End cap.

Internal bend cover.

Internal bend assembly.

Standard external bend cover.

External bend assembly - standard.

External bend assembly - large.

Flat angle cover.

Flat angle assembly.

Flat tee assembly.

Dividing fillet (PVC–U).

Earth bonding kit.

Coupler pin.

Bonding strap.

RCD/MCB housing.

1 gang accessory box 30mm deep.

2 gang accessory box 30mm deep.

1 gang adjustable depth box.

2 gang adjustable depth box.

1 gang accessory plate.

2 gang accessory plate.

1 gang screened accessory box (polycarbonate).

2 gang screened accessory box (polycarbonate).

Third-party certification

CE and UKCA marked.

Sustainability data

Country of product manufacture

United Kingdom

Material

Aluminium

Guidance for specification option:

Extruded aluminium.

Recyclability

100%
