Twin 100mm Specwall (Strong, Durable, Mould resistant Masonry Fire partition walls) - Insulated Twin Concrete Panel

Name: Twin 100mm Specwall (Strong, Durable, Mould resistant Masonry Fire partition walls) - Insulated Twin Concrete Panel
Brand: Specwall SP
SKU: qqBCw49zxiKPxu1d7t1HK1

Verified by manufacturer 2 months ago

Specwall SP

Third party certifications:

BBA Agrément Certificate
Certificate type
FIS Acoustic Verification Scheme
Certificate type
BRE Certificate
Certificate type
UKAS
Certificate type

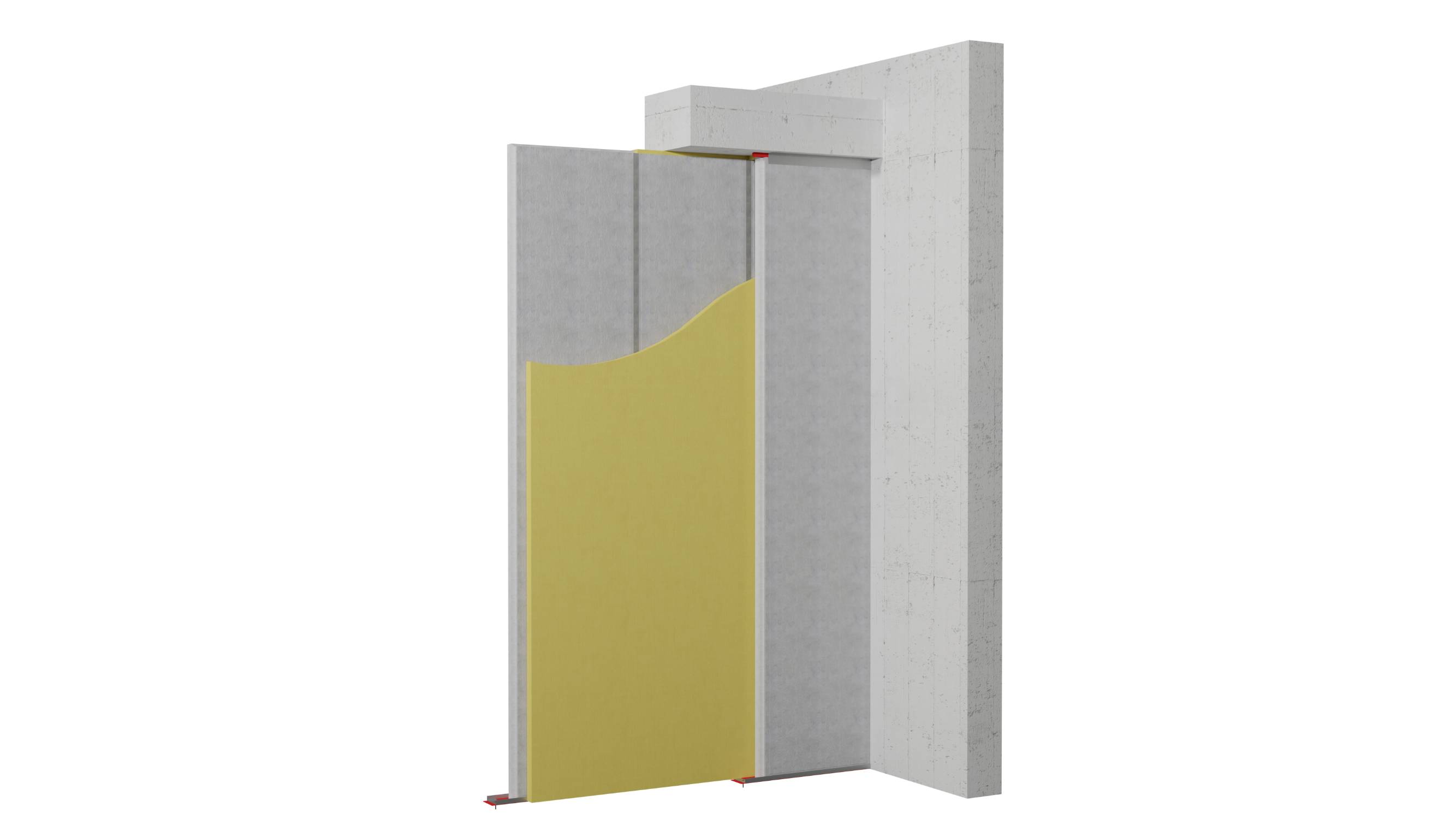

Standard insulated twin wall system based on two 100 mm-thick Specwall panels with 50 mm-thick RW45 Rockwool insulation in between.

Jump to:

+44 (0)161 511 4790 Website

Application

Housing developments;
Residential buildings;
Commercial buildings;
Hotels;
Public sector buildings;
Hospitals and healthcare;
Airports;
Industrial buildings;
Modular construction;
Room and bathroom pods;
Precast structures;
Traditional buildings;
Refurbishment projects;
Data centres;
Custody facilities.

Description

Specwall 100mm insulated twin wall is an advanced wall system with inherent insulation, acoustic and fire ratings, and allows for direct finishing including tiles and paint. It is water permeable and doesn’t break down when submerged in water, making it suitable for pre-build, Cat A and Cat B installs.

Specwall 75mm twin wall is composed of 2x 100 mm panels with 50 mm RW45 Rockwool insulation in between (bespoke options are available). MEP design can accommodate service openings which can be formed off-site or on-site depending on the client preference.

All joints are PU adhesive bonded and filled with grout. Taping and jointing can be requested by the client. The wall can have finishes applied directly, including tiles, skim and paint. Additionally, timber pattressing is not required with the system as pattresses can be cut straight into the panels.

Advantages:

1. A2 fire rated - fire resistance inherent to Specwall. Good thermal properties.

2. Reduced labour - Time and motion case studies show Specwall can reduce labour hours needed for installation by more than 55%.

3. Reduced costs - Specwall can save on overall costs through programme savings, reducing waste, resisting damage and more.

4. Water permeable - Specwall is not affected or damaged by water or mould and can be installed before the building is water tight. Does not promote mould growth.

5. Sustainable - Manufactured all-in-one product means Specwall achieves minimal wastage, and all of which can be recycled. Specwall panels are demountable and can be reconfigured at any point through a simple process as per design.

6. More efficient - Streamline your project management process by reducing wall types and requiring fewer trades on site.

7. Robust construction.

8. Quick installation.

9. Easy to install, lower skillset is required.

10. Walls constructed in one visit.

11. Better thermal and acoustic properties.

General information

Color	Grey
Finish	Cement Smooth
Material	Concrete Cement Fibre cement Composite Rock fibre mineral wool
Shape	Rectangle
Length	Bespoke Guidance for specification option: Maximum: 6000 mm.
Width	250 mm
Height	Bespoke Guidance for specification option: Maximum (unsupported): 6000 mm. Maximum panel length: 3000 mm.
Warranty description	Ten year

Uniclass	Ss_25_12_65_65 Panel partition systemsPrimary
CAWS	K30/130 Relocatable partition system K30/10 Relocatable partition system

Specification data - Panel partition systems

System performance	Manufacturer's standard. Guidance for specification option: BS EN 1363-1:2020 - Fire resistance test Part1. BS EN 1363-2:1999/8 - Fire resistance test Part2. BS EN 1364-1:2015 - Fire resistance test for non-loadbearing elements. BS 476-22:1987 - Fire tests on building materials and structures. BS 476-20:1987 - Fire tests on building materials and structures. BS EN 1366-3:2021 - Fire resistance tests for service installations Penetration seals. BS EN 1366-4:2021 - Fire resistance tests for service installations. BS EN ISO 10140-2:2010 - Acoustics. Measurement of airborne sound insulation. BS EN ISO 140-3:1995 - Acoustics. Measurement of sound insulation in buildings and of building elements. BS EN ISO 6946 - Thermal resistance and thermal transmittance. BS EN 12390-5:2019 - Testing hardened concrete - Flexural strength. BS EN 12390-3:2019 - Testing hardened concrete - Compressive strength. BS 5234-2:1992 - Partitions (including matching linings) - Specification for performance requirements for strength and robustness including methods of test. BS 1881: Part 122: 1983 - Testing concrete - Method for determination of water absorption.
Panel partitioning	Two Specwall SP-100 A2 panels with RW45 Rockwool insulation. Guidance for specification option: Maximum unsupported height: 6000 mm. Panel: Grey in colour (similar to RAL 7044). Width: 610 mm. Height: 3000 mm. Skin type: 2 x 4.5mm FCB. Core type: Aerated concrete. Weight: 58.7 kg/m². Average density: 650–750 kg/m³. Consult manufacturer for further details including Rockwool insulation.
Fasteners	Manufacturer's standard. Guidance for specification option: No fasteners required. Screw or dowel for joints, junctions, corners, and wall abutments. Refer to manufacturer's technical manual for guidance.
Joint treatment	Fully filled with PU adhesive, grout applied to close joints. Guidance for specification option: Refer to manufacturer's technical manual for guidance.
Joint finish	Grout, tape and fill. Guidance for specification option: Refer to manufacturer's technical manual for guidance.
System accessories	None. Base track with fixings to suit substrate. Top L angles. Dowel. Guidance for specification option: For corner and/ or T-junction joint finish. 12 x 200 mm, with resin. PU adhesive. Guidance for specification option: For corner and/ or T-junction joint finish. Grout. Guidance for specification option: If required in addition to joint treatment and/ or detail. Intumescent sealant. Rockwool insulation. Guidance for specification option: For use in deflection head in the Specwall between the two angles.
Samples required	On request.
Execution	- Manufacturer guidance Refer to Specwall technical manual.

Fire performance	180 minutes (single Specwall panel).
Fire rating for panels	A2-s1, d0.
Acoustic performance	55 dB Rw.
Thermal transmittance (U-Value)	0.35 W/m²K.
Compressive strength (mean value)	3.97 MPa. Guidance for specification option: Average for single Specwall.
Third-party certification	BBA 22/6145. Guidance for specification option: Product sheets 1 and 2.

Sustainability data

Contains Red List materials	No
Country of material origin	United Arab Emirates
Country of product manufacture	United Arab Emirates
Material	Concrete Cement Fibre cement Composite Rock fibre mineral wool
Manufacturing plant location	Sheikh Mohammed Bin Zayed Road (E311 Road - مجمع دبي للإستثمار - دبي - United Arab Emirates
Embodied carbon A1-A3 (production stage) as defined in BS EN 15804	- Manufacturer guidance Under process; consult manufacturer for details.
Recyclability	Specwall panels are fully demountable and reusable, 70% recyclable
Recycled content As defined in clause 7.8 of BS EN ISO 14021	30 % Guidance for specification option: 20% EPS, 10% Flyash.

BIM objects

Platform	Compatible	Version
Revit	-	1

Third party certifications

BBA Agrément Certificate

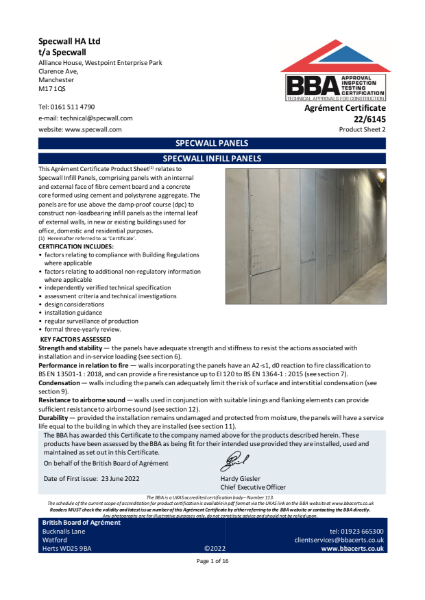

Specwall - BBA Certificate - Infill Panels

BBA Agrément Certificate

Specwall - BBA Certificate - Internal Partitions

BBA Agrément Certificate

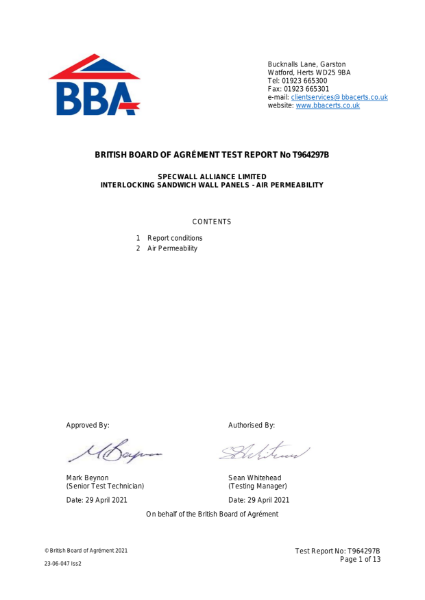

Specwall - BBA - Air Permeability Test - BS EN 1026:2016 - 75mm & 100mm

BBA Agrément Certificate

Specwall - BBA - Compressive Strength - BS EN 12390-3:2019- 75mm & 100mm

FIS Acoustic Verification Scheme

Specwall - FIS Accredited Membership Certificate

BBA Agrément Certificate

Specwall - BBA - Fixing withdrawal - BS EN 1382:1999

BRE Certificate

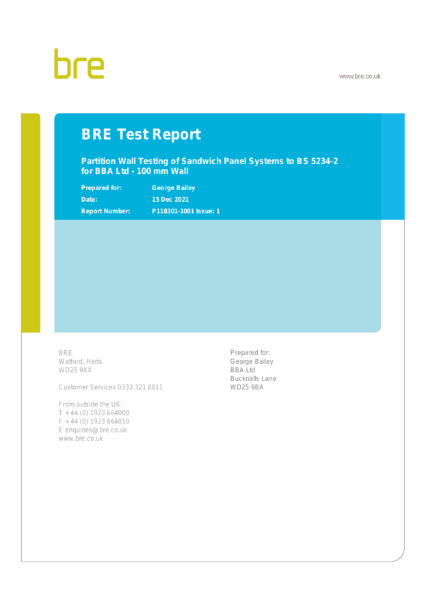

Specwall - BRE - Strength and Robustness test - BS 5234-2:1992 - 100mm

BBA Agrément Certificate

Specwall - BBA - Water Vapour Transmission - BS EN 12572:2016

BBA Agrément Certificate

Specwall - BBA - Tensile Strength - BS EN 14509:2013, BS EN 1607:2013

BBA Agrément Certificate

Specwall - BBA - Shear Performance of Fixings - ETAG 034-1:2012

BBA Agrément Certificate

Specwall - BBA - Resistance at Dowel Hole - EN 13364:2002

BBA Agrément Certificate

Specwall - BBA - Flexural Test - BS EN 12390-5:2019

BBA Agrément Certificate

Specwall - BBA - Fixing Pull Through - BS EN 1382:1999

BBA Agrément Certificate

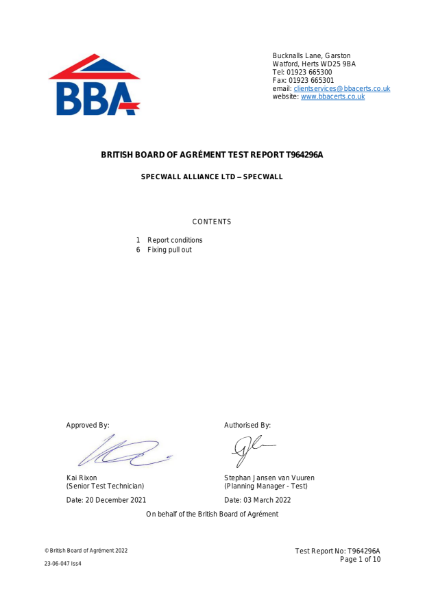

Specwall - BBA - Fixing Pull Out - BS EN 1382:2016

UKAS

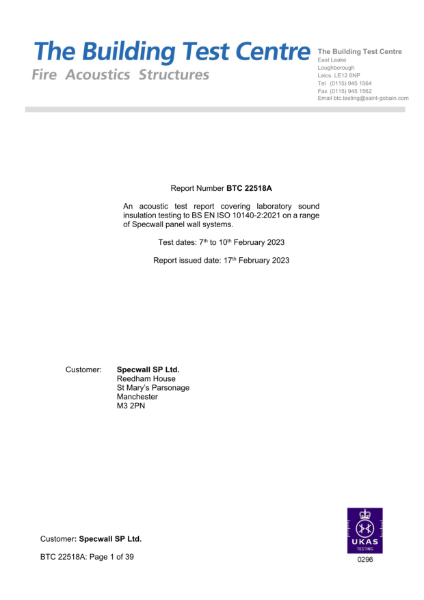

Specwall - The Building Test Centre - Acoustic Test Report - BS EN ISO 10140

Literature

Specwall Material Safety Data Sheet

Specwall Mini Brochure

Specwall Performance Chart

Specwall Physical Properties Document

Specwall Repair Guide

Specwall Systems Document

Specwall Technical Manual

Specwall Door Installation Document

Specwall Alterations Document

Specwall Specpod Brochure

Specwall Training Presentation

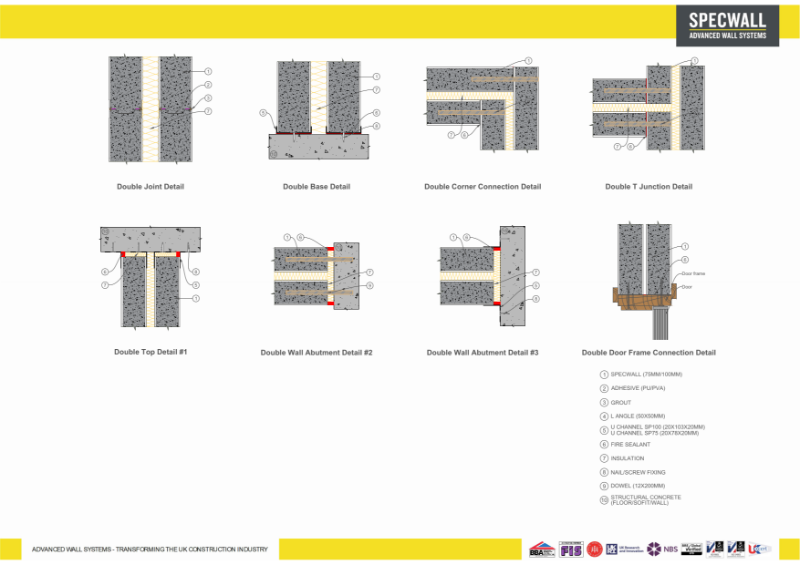

Specwall - Connection details (Double wall)

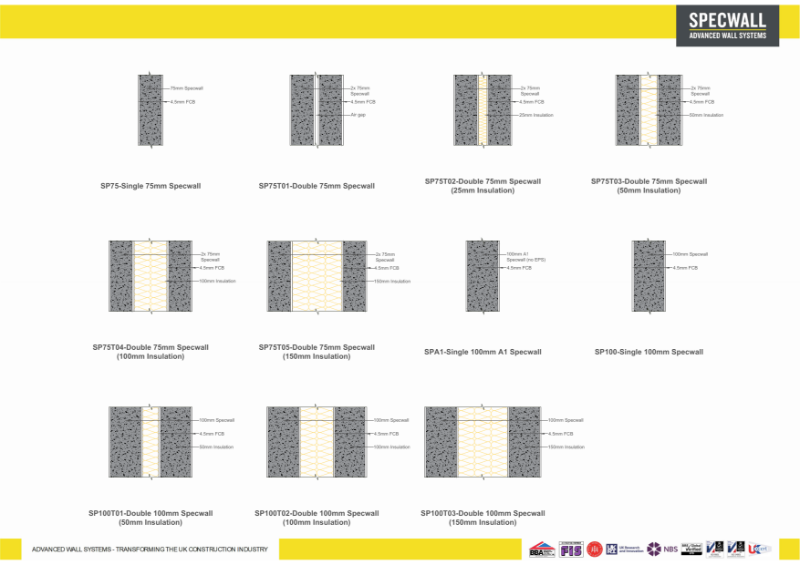

Specwall - Wall types (Single and double walls)
