TVS Cleancare - Ceiling tiles
Verified by manufacturer 2 months ago
TVS Cleancare - White
TVS Cleancare - White

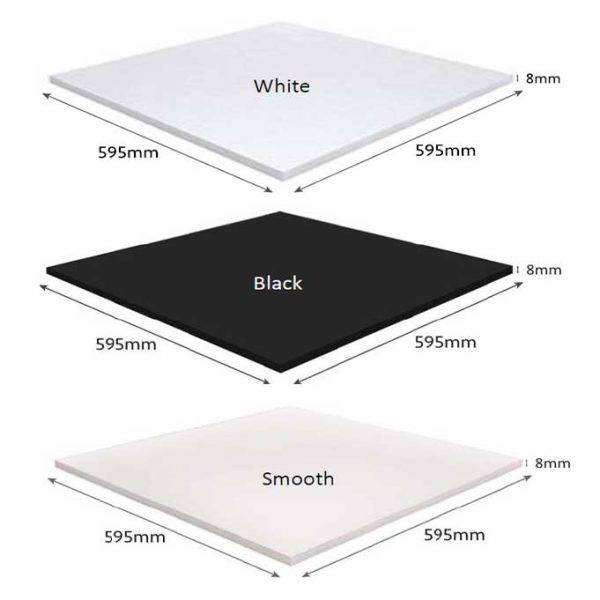

A plain, unperforated gypsum tile, laminated white or black faced with PE foil backing, for use in areas of high humidity.
Application

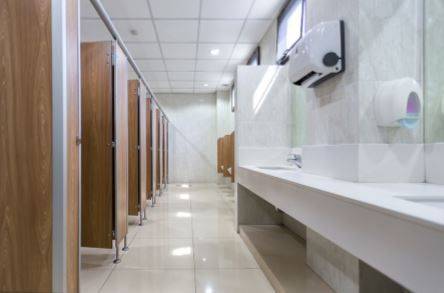

Suitable for use in a range of commercial and residential ceiling applications where high moisture resistance, high light reflectance and resistance to staining are required, including:
- Public areas.
- Kitchens.
- Bathrooms.
- Toilets.
- Retail.
- Warehouses.
- Storerooms.
Description
TVS Cleancare is a vinyl-faced, double laminated gypsum tile, designed for use within a lay-in grid system to form a demountable suspended ceiling. It is manufactured according to the UNE-EN 14190 standard, based on a Type A laminated gypsum board covered with a Polyvinyl Chloride (PVC) film that gives it special waterproofing and easy-cleaning qualities. It incorporates an aluminium-coloured sheet on its back-face that works as a vapour barrier and at the same time protects all the tile, in case of leaks or damage of the housing. It is a simple solution, of great quality and durability.
Features and benefits:
- Cleanable vinyl face.
- Foil backed.
- 90% moisture resistant to 30 degrees Celsius.
- High light reflectance.
- Class A2-s1,d0 fire rating.
- Square edge (A edge) profile.
- Easy to clean.
- Available in white and black.
- Packed in boxes of 8 tiles.
- CE marked to EN 13964: 2006, 89/106/ EEC.
General information
Color | White Black |
Finish | Laminated Guidance for specification option: Factory laminated with a white/ black face. |
Material | Plasterboard Guidance for specification option: Plasterboard, calcium sulphate dihydrate (plaster) between two paper liners and an additional liner of polyvinylchloride film (front face) and back with a metalized polyester film. Boards contain additives in low amounts, such as: foamers, starch, dispersants, small amounts of vermiculite and silicon. The polyvinyl chloride film is made from plasticized polyvinyl chloride and suitable additives for processing or use, e.g. it could contain UV stabilizers, pigments, etc |
Shape | Square Rectangle |
Length | 600 mm 1200 mm |
Width | 600 mm |
Height | 8 mm |
Warranty description | Two year |
Uniclass | |
CAWS | K40/10 Unit/ modular suspended ceilings K40/265 Infill units K45/370 Infill units |
Product range |
Specification data - Fibre-reinforced gypsum infill units
Standard | To UNE-EN 14190. |
Fire performance | |
Fire resistance | 30 minutes (maximum). |
Reaction to fire | To BS EN 13501-1, A2-s1,d0. |
Material | Double laminated gypsum tile. |
Unit size | 600 x 600 mm.600 x 1200 mm. |
Finish | Vinyl plain coating. |
Colour | White face, foil backed. |
Thickness | 8 mm. |
Edge profile | Square edge. |
Form | 15 mm lay-in. 24 mm lay-in. |
Perimeter trims | Shadow line. Wall angle. |
Weight | 5.80 kg/m². |
Moisture resistance | 90% RH to 30°C. |
Thermal Conductivity: | 0.25 W/m.K. |
Sustainability data
Contains Red List materials | No |
Country of material origin | Turkey |
Country of product manufacture | Turkey |
Recyclability | 100% |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 0 % |
Literature
TVS Ceilings Range
