Turnlock 150
Description

The Turnlock full height turnstile range consists of a variety of models that offer a high level of security for both indoor and outdoor applications. A variety of finishes and construction options as well as optional side gates and tandem installation ensure that a suitable solution is available for any situation.

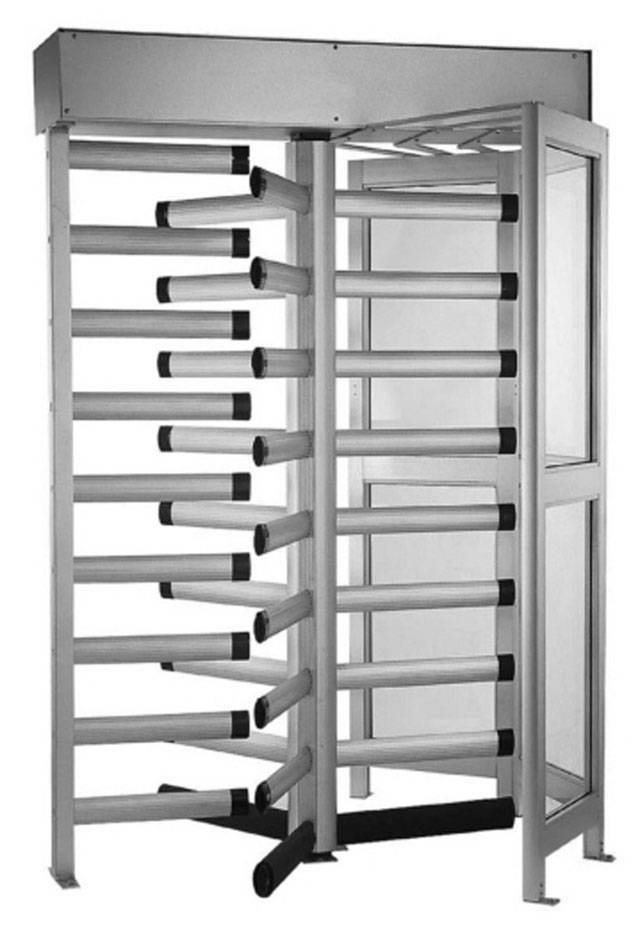

The Turnlock 150 is an attractive and versatile, aluminium three wing turnstile that is suitable for both internal and external applications. Operation of the turnstile range relies on authorization from an access control system, ensuring that only authorized visitors can enter the secured area. Once an authorization signal has been received, the Turnlock unlocks and allows a 120° or 90° turn, depending on the number of door wings. After passage, the Turnlock returns to the start position and relocks, ready for another cycle.

General information

Uniclass 2015

Pr_30_59_34_01 Aluminium full-height turnstilesPrimary

CAWS

L20/500 Manual revolving doors

Q50/160 Turnstile

Specification data - Aluminium full-height turnstiles

Product Reference

Turnlock 150

Turnlock 150 Tandem

For double passage.

Width

1524 mm

For Turnlock 150 only.

2134 mm

For Turnlock 150 Tandem only.

2438 mm

Turnlock 150 Tandem only.

Operation

Electrical

Mechanical

Power failure

Fail-secure

Standard.

Fail-safe

Side gate

Not required

Required

Accessories

None

Adaptations for card reader mounting

Heel protectors

Push button free access

Rotation detection sensor per direction

Second curved wall

Speed control

Standard product features

Height:

  • Internal: 2057 mm.
  • Canopy: 203 mm.

Passage width:

  • Turnlock 100: 648 mm.
  • Turnlock 100 Tandem: 2 x 648 mm.

Construction:

Anodized aluminium. The oval shaped arms are sealed with force-fit synthetic end caps and the walls are inlaid with polycarbonate panels for a clear and transparent look.

Capacity (per turnstile and minute in one direction):

15–18; dependent on authorization system.

Power supply:

110–220 V AC, 50/60 Hz.

Product Options

Power failure:

The fail secure turnstiles ensure that in case of a power failure the entrance remains locked, ensuring no unauthorized visitors can enter the perimeter. The fail-safe system, electrically disengages the locking mechanism, allowing the door set to be operated manually. If a fire alarm system is connected to the Turnlock, the locking mechanism will be disengaged automatically in an alarm situation.
