TurfMesh Grass Reinforcement Mesh

Verified by manufacturer 12 days ago

TM1000G0110: TurfMesh 1000 1 x 10 m

GCL Products Ltd Variant:

Grass reinforcement mesh for vehicle and pedestrian use.

Jump to:
+44 (0) 1246 418144 Website

Application

Possible applications include: grass car parking, events, heavy duty, access routes, paths and walkways as well as domestic parking.

Description

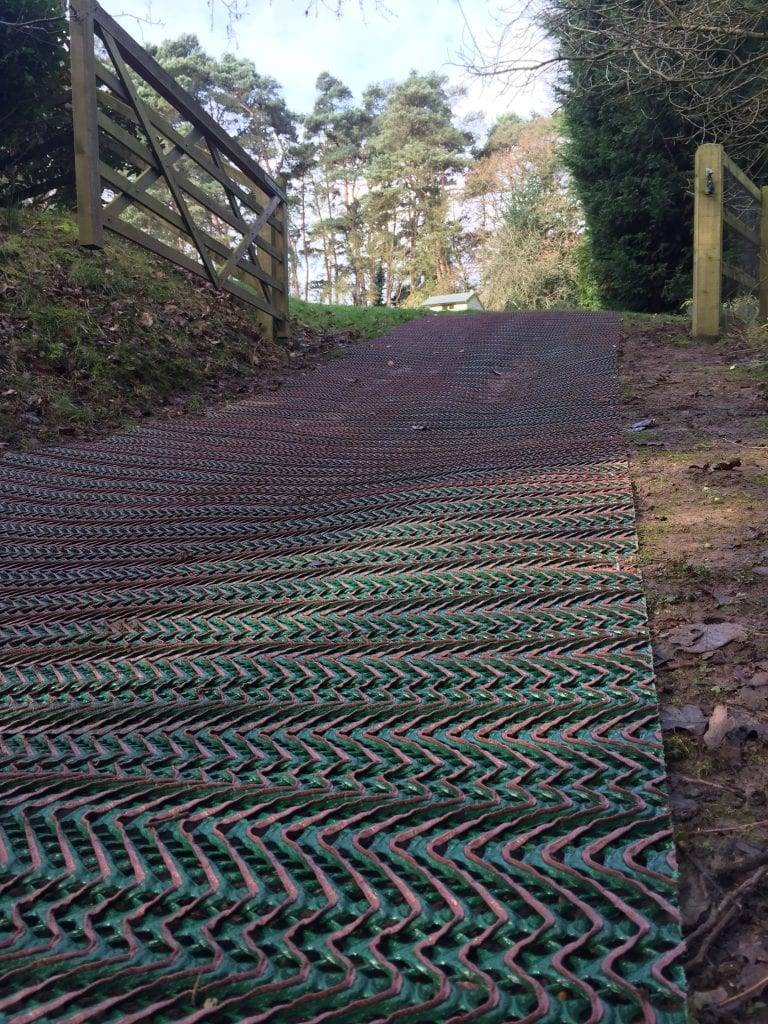

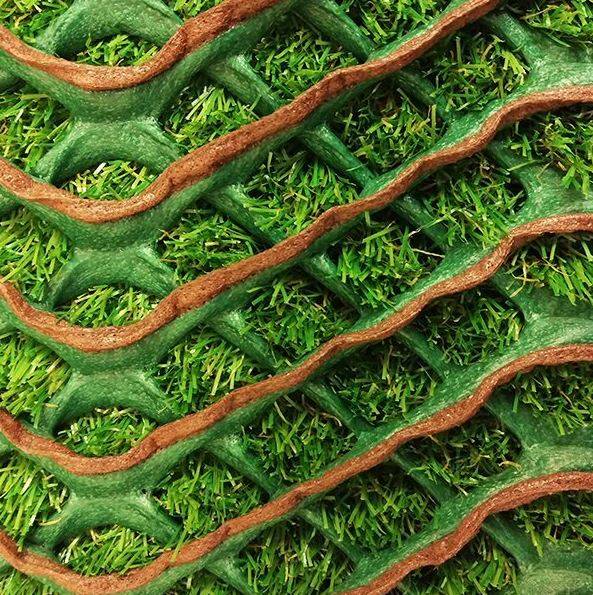

Designed to be installed on existing or newly laid grassed areas, TurfMesh creates a resilient and durable grass surface which can be used as grass roads, light aircraft taxiways, car parking, access routes for emergency services and more. With three grades to suit the specific application, TurfMesh is rolled out over very closely cut or newly seeded grass and pinned into place, usually using durable steel uPins or plastic anchor pegs. Discreet and easy to install, TurfMesh is a fantastic no-dig solution to creating tracks, roads and paths without the need to excavate the existing surface. Suitable for use in short, medium and long term applications.


Features and benefits:

  • Non-slip: with its textured upper surface, TurfMesh can create a non-slip path or roadway from a grassed surface.
  • EVA foam weave: with an integrated, raised EVA foa weave, TurfMesh is sure to increase traction for pedestrians and vehicles.
  • Multi-grade: with multiple different thicknesses of mesh, there’s a variant to suit applications from domestic, commercial to industrial.
  • Eco-friendly: carefully manufactured from 100% recycled polyethylene and fully recyclable at the end of its life.
  • Durable: high-tensile, weather-resistant and UV-resistant formulation means TurfMesh lasts up to 20 years.
  • Contourable: designed to closely follow the contours of the ground in order to reduce installation time and cost.
  • Versatile: useful for many different applications such as pedestrian areas, access routes, car parking and grass verges.

General information

Color

Green

Brown

Finish

Anti-slip

Material

Polyethylene

Foam

Guidance for specification option:

EVA foam.

Shape

Other

Length

10000 mm

20000 mm

Width

1000 mm

2000 mm

Height

9 mm

11 mm

13 mm

Uniclass

Pr_45_63_64_63 Plastics mesh reinforcementPrimary

CAWS

Q25/46 Plastics grass reinforcing paving systems

Q25/180 Plastics grass reinforcing paving system

Q30/361 Reinforced grass system

Q30/570 Plastics mesh reinforcement

Specification data - Plastics mesh reinforcement

Material

Recycled polyethylene and EVA foam.

Duty

Light.

Colour

Green/ brown.

Roll width

1.0 m.

Roll length

10 m.

Roll weight

10 kg.

Thickness

9 mm.

Weight

1.0 kg/m².

TensileStrength

6.5 kN/m.

Elongation

25%.

Manufacturer guidance

MD.

Slip resistance

To BS7976: 1-3.

Fixing method

Steel uPins / plastic anchor pegs.

Guidance for specification option:

Fixings/m²: (avg) 2.5.

Coverage

10 m².

Sustainability data

Country of product manufacture

United Kingdom

Recyclability

100%

Recycled content

As defined in clause 7.8 of BS EN ISO 14021

100 %
