Application

For use with suspended ceilings in commercial buildings as a method to provide a support pattress for the fitting of ceiling fittings and fixtures.

Description

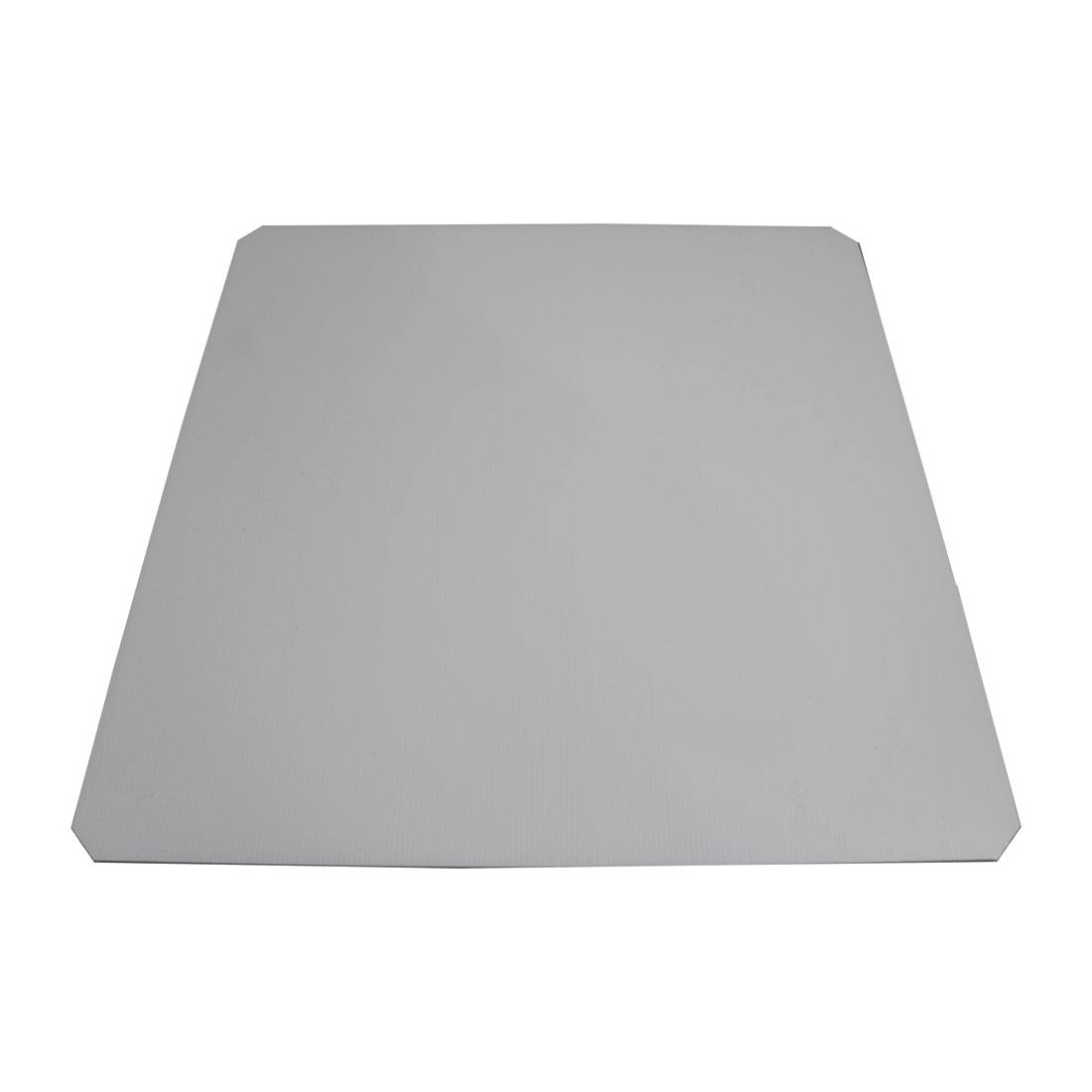

The Tufflex Tile is a quick and easy pattress solution that takes the hassle out of traditional ceiling installations. A cleaner, lighter, safer and faster alternative to wood solutions, the Tufflex Tile is super lightweight, strong and easy to cut or drill meaning installations can be completed

far more quickly. Additionally, the product is flame retardant and low smoke fume (LSF) removing a key component of the fire triangle.

Features and benefits:

  • Super lightweight Correx material that’s easy to handle and store.
  • Pre-cut 595 x 595 mm squares to suit standard ceiling tile dimensions.
  • No need to cut or saw plywood/ MDF.
  • Pre-chamfered edges for a quick fit.
  • Tested to hold a 5 kg load.
  • Flame retardant and low smoke fume (LSF).
  • Requires less PPE (as no need for cutting and sawing).
  • No waste or dust (as no need for cutting and sawing).

General information

Color

White

Finish

Matt

Material

Polypropylene

Shape

Square

Length

595 mm

Width

595 mm

Height

4 mm

Uniclass

Pr_25_71_63_60 Plastics and composite material boardsPrimary
Ss_30_25_22_51 Modular suspended ceiling systems

CAWS

K40/10 Unit/ modular suspended ceilings

K40/115 Unit/ modular suspended ceiling system

SKU Code

CPT1

Specification data - Plastics and composite material boards

Classification data

Material

Twin walled polypropylene.

Guidance for specification option:

Correx.

Thickness

4 mm.

Finish

Manufacturer's standard.

Colour

Manufacturer's standard.

Fire performance

To DIN 4102, Class B1.
To ASTM D635, burning time <5 seconds.
To UL94, V2.

Additional requirements

To BS 4662+A1 15.4.3.3, Pass.
BS 2792 method 508A, Pass.

Size (length x width):

595 x 595 mm.

Load (maximum)

5 kg.

Guidance for specification option:

When used with rigid ceiling tiles.

Weight

373 kg.

Sustainability data

Country of material origin

United Kingdom

Country of product manufacture

United Kingdom

Material

Polypropylene

Literature

DOC03513CPT1

DOC03513CPT1

Tufflex Tile Catalogue

Tufflex Tile Catalogue
