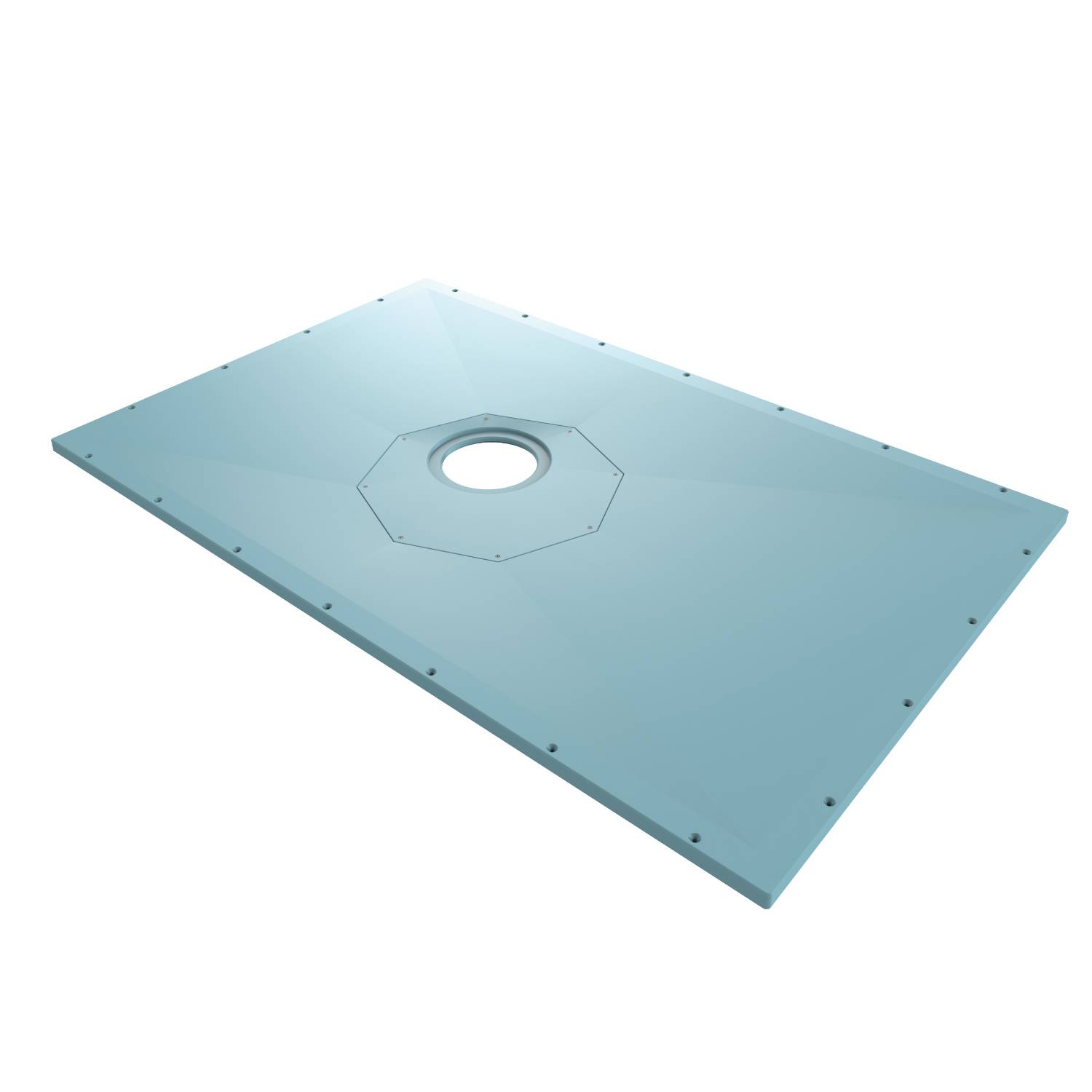

Tuff Form 8 Former
Verified by manufacturer 5 months ago
Floor former to create a wet floor shower area.
Application
- Suitable for accessible bathroom applications.
- Suitable for all UK joist patterns.
- Suitable for both wooden and concrete floor
- Suitable for use with underfloor heating.
Description
The Tuff Form8 has a laminated structure and 15 waste fit positions for nearly all wet room configurations.
Features and benefits:
- Rotatable waste position.
- Wide selection of waste options.
- Easily trimmable within 150 mm from the octagonal plate.
- Waste installation requires no screw-hole drilling.
- Quick and easy installation.
- Ribbed underside eliminates slippage or float during installation.
- Designed with a variety of end-users in mind, able to support chair users and carers.
General information
Color | Blue |
Material | Glass Reinforced Plastic (GRP) Other |
Shape | Square Rectangle |
Length | 900 mm 1000 mm 1135 mm 1200 mm 1300 mm |
Width | 770 mm 820 mm 900 mm 1000 mm 1200 mm |
Height | 22 mm |
Warranty description | Lifetime |
Uniclass | |
CAWS | N13/377 Wet room showers N13/45 Wet room showers |
SKU Code | 21130, 21131, 21132, 21133, 21134, 21135, 21136, 21137, 21138 |
Specification data - Wet room floor formers
Dimensions | |
Tray size | 900 x 900 mm. 1000 x 1000 mm. 1135 x 770 mm. 1200 x 1200 mm. 1300 x 820 mm. 1400 x 900 mm. 1500 x 820 mm. 1500 x 1200 mm. 1800 x 820 mm. |
Thickness | 22 mm. |
Floor finish | Tiles. Vinyl. |
Loading requirements | 60 stone. Guidance for specification option: 60 stone (381 kg) on joists, unlimited on concrete. |
Drainage outlets | |
Type | TF75 Waste 25106. SS-TF75 Stainless Steel Gravity Waste LB00101. GW50 with TFWA Adaptor 25124. GW50 with SS-TFWA Adaptor LB00102. GW90 with Tiled Floor Adaptor 25498-UK. GW90 with Vinyl Floor Adaptor 25499-UK. GW90 Low Depth with Adaptor 25404+25409. DW90 with Tiled Floor Adaptor 25418-UK. DW90 with Vinyl Floor Adaptor 25419-UK. PGTF Pumped Gulley Waste with 15 mm Outlet only 25101. 22 mm SilentFlow+® Waste Pump (PGTF) 25414. Manufacturer guidanceCompatible with gravity, pump and dry wastes GW50, GW90, TF75, PGTF, DW90 and all AKW tanking kits. |
Finish | Manufacturer's standard. |
Sustainability data
Material | Glass Reinforced Plastic (GRP) Other |
Recyclability | Recyclable |
