TUC-S Concealed Fibre Concrete Facade Panel Fastening Solution

Application

Secret fix installation of fibre concrete cladding panels.

Description

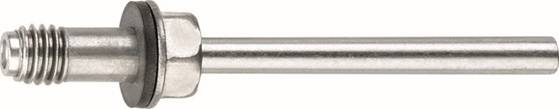

Used on secret fix Rainscreen systems for installing a 3 mm bracket at the back of 13 mm Fibre Concrete Facade Panels. Rivets have a 6 mm diameter body and a 3.3 mm mandrel.

Firstly, a pilot hole will be drilled into the back of the facade panel using a 6 mm stop drill bit. The pre-drilled bracket is then positioned over the hole, and the TUC-S rivet is pushed through the bracket into the hole and the mandrel is completely removed using a riveting tool.

Installation can be performed quickly, securely and easily by one person. Installation time can also be reduced by up to 50% compared with conventional blind attachments. This product can also be removed once installed if required.

This fastening solution cannot be overdriven during installation, due to its radial expansion. When the mandrel is removed, the partially cut thread becomes wedged into the back of the facade panel material, generating very high pull out values. Spontaneous slackening due to expansion or vibration is impossible.


Features and benefits:

  • Rivet specifically designed for secret fixing of cladding panels, thread geometry expands radially into part II.
  • Hollow design prevents moisture from being trapped in panel and hex head allows rivet to be removed without damaging panel.

General information

Finish

Mill

Material

Steel

WarrantyDescription

40 year

Up to 40 years - consult manufacturer.

Uniclass 2015

Pr_20_29_71_77 Semi-tubular rivetsPrimary

CAWS

H20/150 Sheet cladding

H92/120 Rainscreen cladding

Specification data - Semi-tubular rivets Enhanced data

Material

Body: Stainless steel A4; Mandrel: Carbon steel (completely removed at installation).

Head style

8 mm hex head.

(removal only).

Product Reference

TUC-S Concealed Fibre Concrete Facade Panel Fastening Solution
