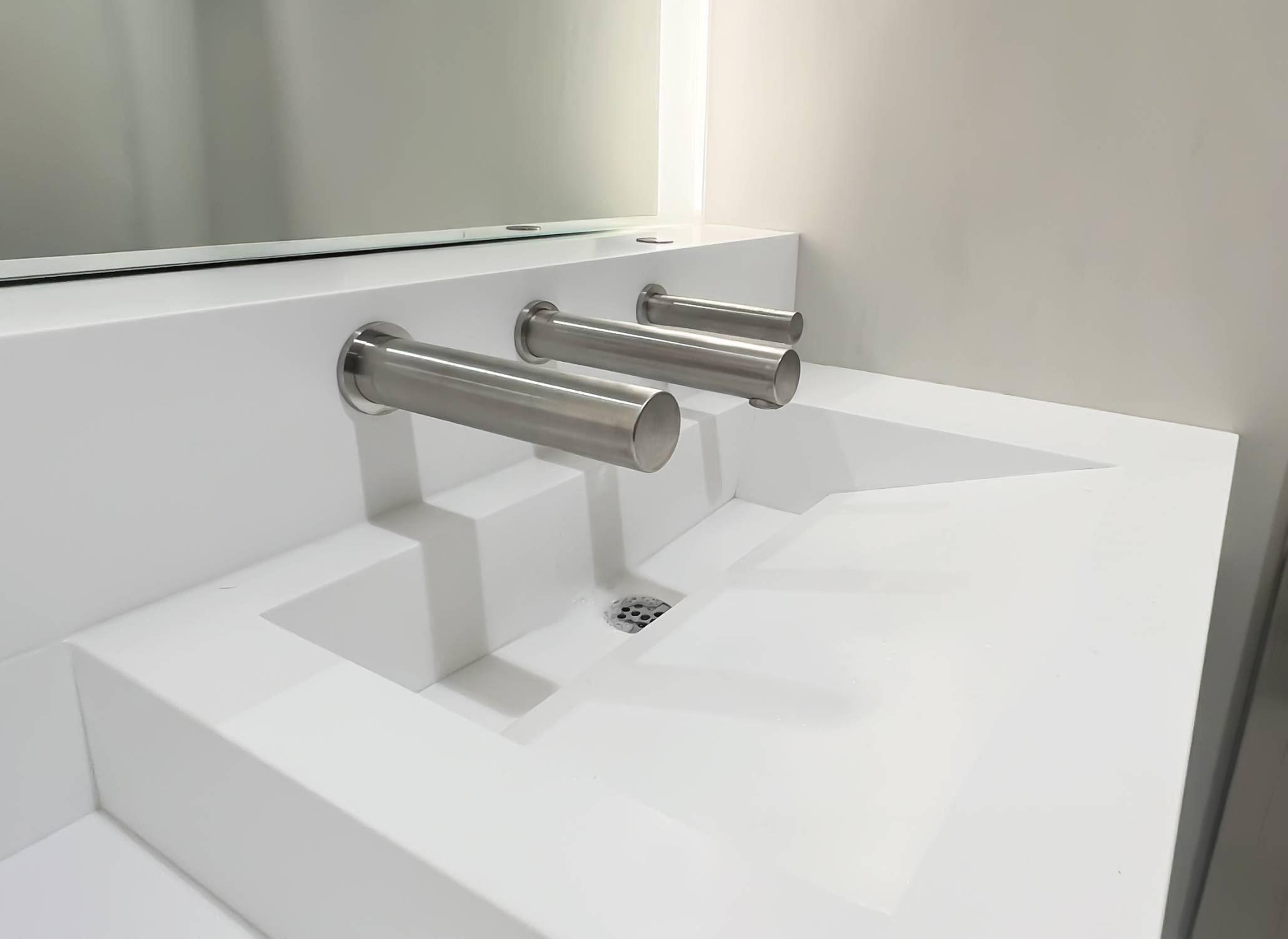

Tubular Trio Stainless Steel AISI 316 - Soap Dispenser, Faucet and Hand Dryer
Verified by manufacturer 7 days ago
Touch free soap dispenser, touch free tap, and hi-speed hand dryer for public bathroom use available in AISI316 material.
Application
Suitable for commercial washrooms requiring durable, hygienic, and contact-free operation. Typical applications include:
- Hospitality & Commercial Buildings: Hotels, office complexes, and corporate facilities seeking modern, touchless washroom solutions.
- Transportation Hubs: Airports, train stations, and bus terminals with continuous high-traffic usage.
- Retail & Public Facilities: Shopping centers, municipal buildings, and general public washrooms needing reliable, low-maintenance systems.
- Healthcare & Education: Clinics, hospitals, universities, and schools where hygiene and durability are essential.
- Large Venues: Stadiums, arenas, and event spaces requiring efficient, hands-free user flow.
Description
Touch free soap dispenser, touch free faucet, and hi-speed hand dryer for public bathroom use.
Features and benefits:
- Drastically reduces water consumption.
- No physical contact, helps to protect users against cross contamination.
- Minimizes hand washing drips to floors and counters.
- Provides a complete electronic soap, water and air experience.
- Available with full brass body or Stainless Steel AISI 316 material.
- Minimalist design suits a range of washrooms.
General information
Color | Silver |
Finish | Stainless steel |
Material | Stainless steel |
Shape | Other |
Length | Manufacturer guidanceTap: 170 mm Soap Dispenser: 144 mm Hand Dryer: 220 mm |
Width | Manufacturer guidanceTap: 50 mm Soap Dispenser: 60 mm Hand Dryer: 60 mm |
Height | Manufacturer guidanceTap: 38 mm Soap Dispenser: 28 mm Hand Dryer: 45 mm |
Warranty description | Two year |
Uniclass | |
CAWS | N13/30 Washbasins N13/335 Washbasins N13/62 Soap dispensers N13/458 Soap dispensers N13/472 Hand dryers N13/64 Hand dryers |
SKU Code | 350117 |
Specification data - Combined tap, soap dispenser and hand dryers
Classification data | |
Form | |
Tap | Automatic-action thermostatic mixer Tubular DP faucet. Guidance for specification option: Timing protection: 90 seconds auto shut off (adjustable via remote). |
Hand dryer | Tubular DP HD hand dryer. Guidance for specification option: Timing protection: 60 seconds auto shut off. Sensor range: 152 mm +/ - 20 mm (self adjusting). |
Soap dispenser | Tubular 2030 soap dispenser. Guidance for specification option: Default setting: 1.2–1.6 mL (adjustable via remote control). Soap priming operated by remote control or manual refill button. |
Operation | |
Tap | Automatic. |
Hand dryer | Automatic. |
Soap dispenser | Automatic. |
Timer | Adjustable. Guidance for specification option: Adjustable via the remote controller. |
Flow rate (maximum) | 6 L/min. Guidance for specification option: SSR PCA stream. 4, 3, 1.39 and 1.3 L/min PCA spray water saving options available. |
Water supply temperature (maximum) | 70°C. |
Electrical supply | |
Power rating | 1.3–1.6 kW. Manufacturer guidanceHand dryer power rating. |
Rated operational voltage (Ue) | 110–120/ 220–240 V a.c. Manufacturer guidanceHand dryer operational voltage. |
Frequency | 50/ 60 Hz. Manufacturer guidanceHand dryer frequency. |
Body | |
Material | Brass. Stainless steel, AISI 316. |
Finish | Manufacturer guidanceConsult manufacturer for more details and insert requirements. |
Colour | Manufacturer guidanceConsult manufacturer for more details and insert requirements. |
Ingress protection (minimum) | IP67 (battery box); IP21 (hand dryer). |
Integral accessories | Stern mechanical mixing valve integrated thermostatic mixing valve. Soap peristaltic pump. |
Mounting | Wall-mounted. |
Capacity | 1 L. Manufacturer guidanceSoap capacity. |
Water supply | Cold water. Premixed water. |
WaterPressureRange | 0.5–0.8 BAR. |
Power supply | 12 V transformer. Guidance for specification option: For faucet and soap dispenser with power splitter. Manufacturer guidanceSoap dispenser and faucet power supply. |
Standby power | 0.3–0.4 W. Manufacturer guidanceHand dryer standby power. |
Thermal protection | Motor: auto resetting thermostat turns unit off, 120 V at 135°C; 240 V at 95°C. Heater thermal protection: auto resetting thermostat turns unit off at 85°C; thermal fuse cuts unit at 142°C. |
Accessories | Not required. Remote controller. Guidance for specification option: For soap and water control. |
Sustainability data
Material | Stainless steel |
