NBS Source

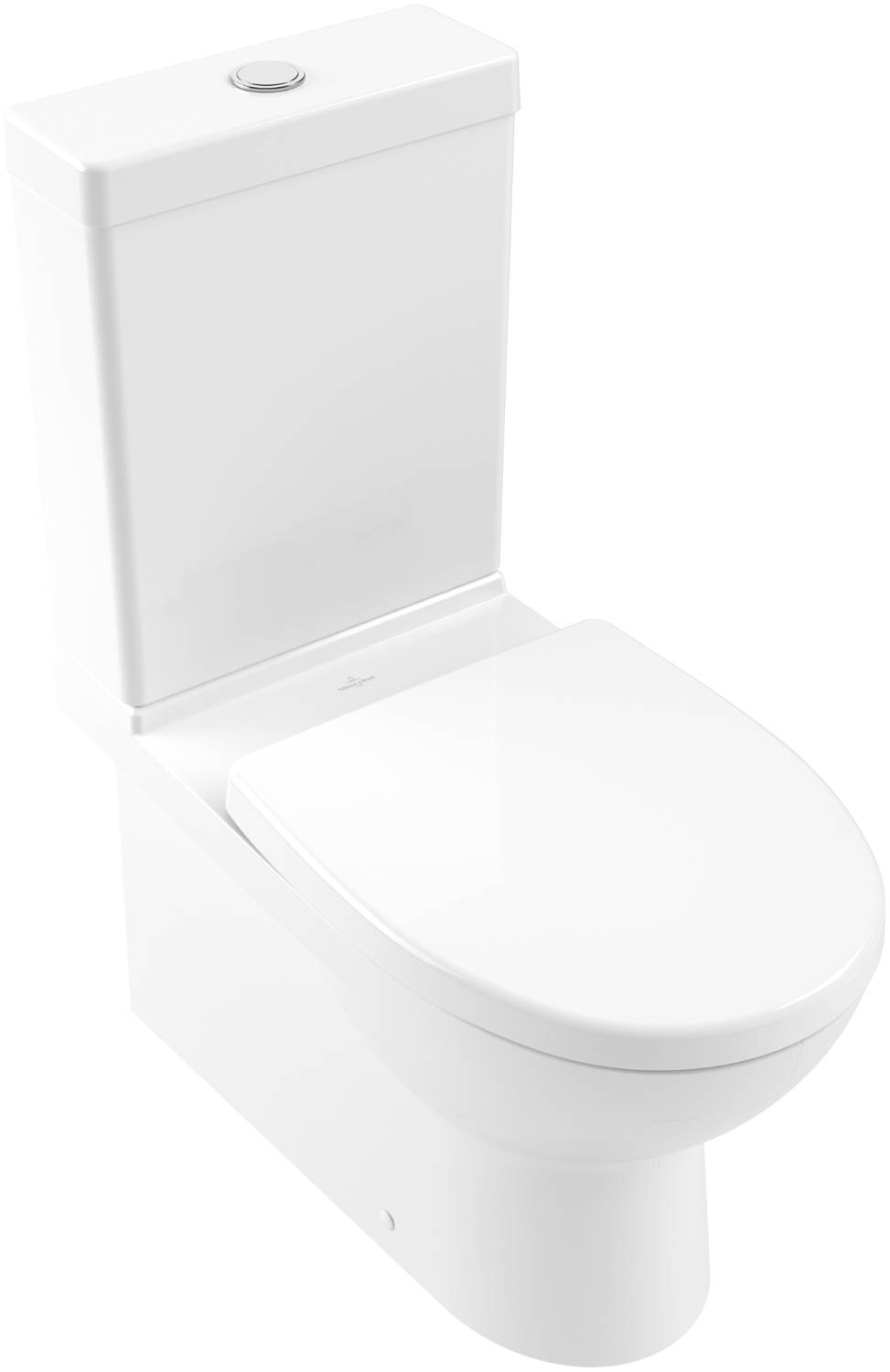

TUBE Floor-standing Close-coupled Toilet Suite 564010

Application

Floor mounted.

Description

Washdown toilet for close-coupled WC-suite.


Features and benefits:

  • Sanitary ceramics.
  • Manufacturer recommends the unit be installed from the wall at 10 mm.
  • Includes fastening set for concealed fastening.
  • Complies with EN 997.
  • Vertical outlet possible with Vario Drainbend.
  • Cistern and seat sold separately.

General information

Color

White

Finish

Gloss

Material

Ceramic

Shape

Other

Width

720 mm

Uniclass

Pr_40_20_93_94 WC pansPrimary
Pr_40_20_93_97 WC suites
Ss_40_15_75_97 WC systems

CAWS

N13/10 WC pans and flushing arrangements

N13/300 WCs and cisterns

Specification data - WC pans Enhanced data

Standard

To BS EN 997.

Form

Pedestal, washdown.

Connecting dimensions

To BS EN 33.

Pan height

400 mm.

Materials

-

Body

Ceramic.

Finish and colour

White Alpin 56401001.

Water supply, outlet and seat holes

-

Water supply

Top inlet.

Outlet

Horizontal back outlet.

Seat holes

Standard pattern.

Integral accessories

Cistern (5740G1).

Cistern (5740N1).

Cistern (5740R1).

Execution

Installing flushing WC assemblies.

Digital objects

Platform Compatible Version Certified to
SketchUp
-

1

1

3Ds Max
-

1

1

OBJ
-

1

1

Download now from NBS National BIM Library
