TTUFS: Countersunk Wood Screw - Electro Galvanised - Panel and Plywood Screw
Verified by manufacturer 7 months ago
TTUFS3.0X16
TTUFS3.0X16
DoP
Certificate type
European Technical Approval (ETA)
Certificate type
An electro galvanized wood screw for interior use.
Application
Suitable for wood to wood. For interior use only.
Description

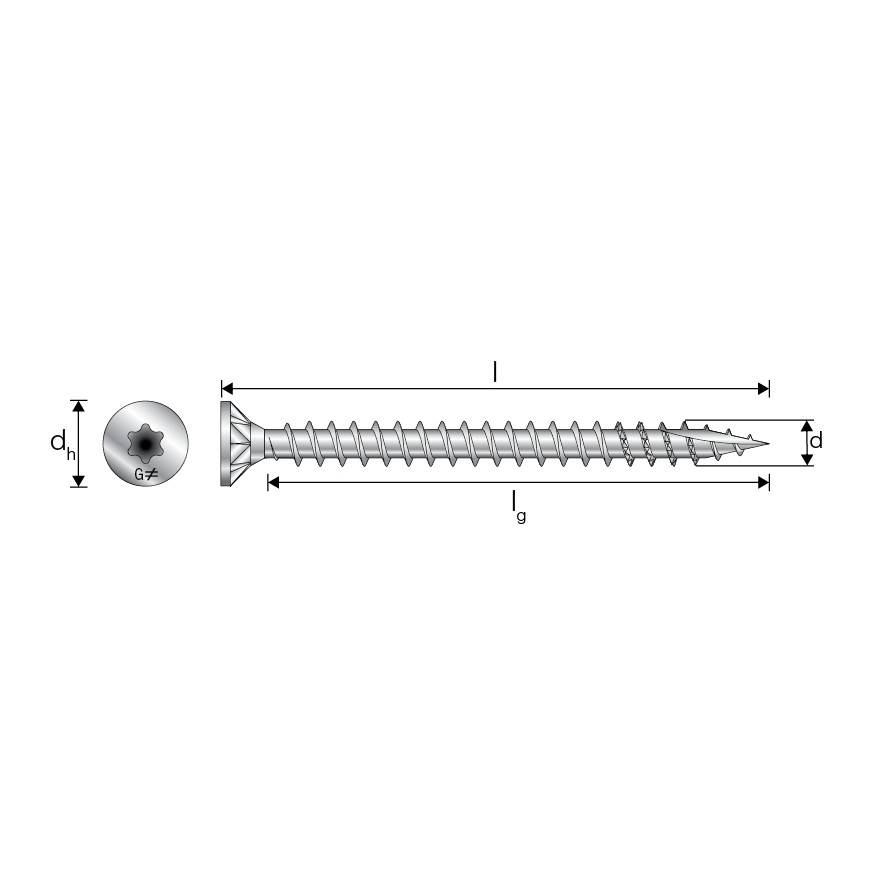

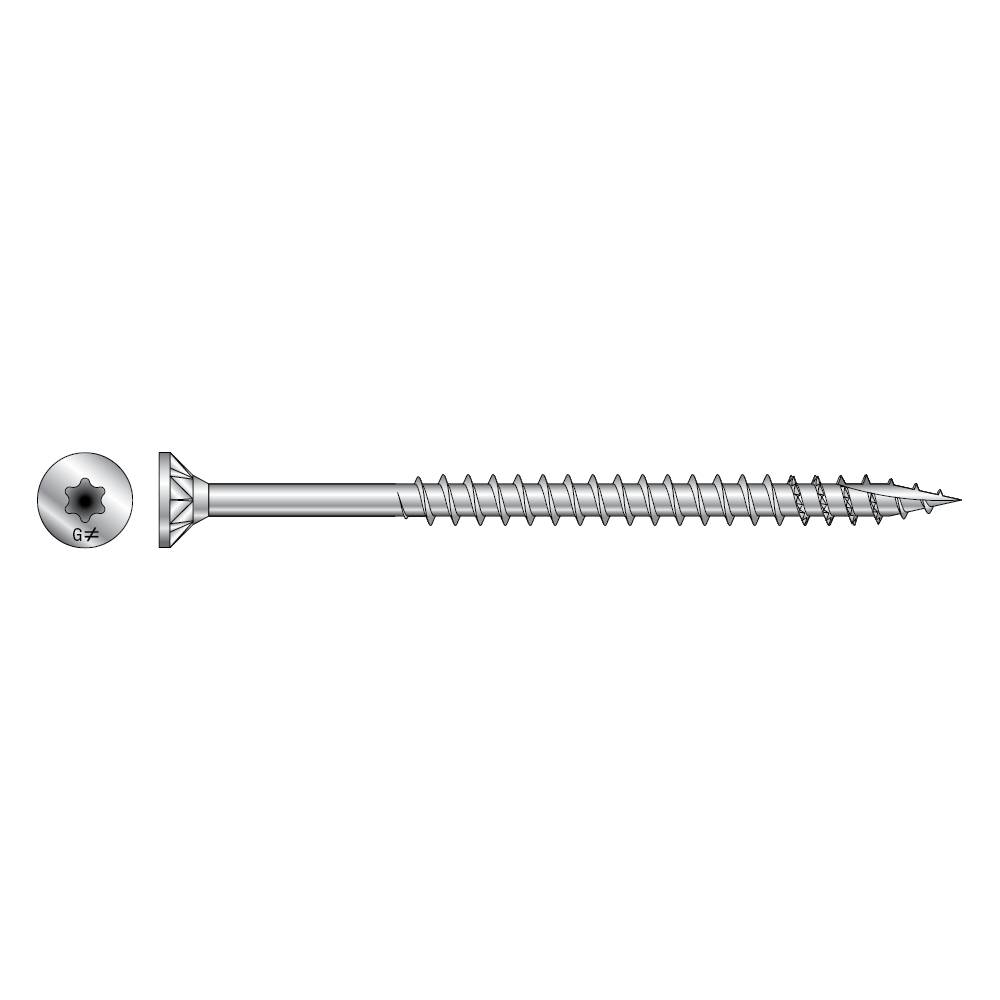

The TTUFS screw has a serrated thread to reduce resistance when driving. It has a cut point which prevents cracking. 70 mm or longer variants have an additional milling thread to further reduce the resistance.
Features:
- Six lobe drive.
- Flat head with facet.
- Type 17 point.
- Serrated thread.
- Electro galvanized.
General information
Color | Silver |
Finish | Galvanized |
Material | Carbon steel |
Shape | Other |
Length | 16 mm 20 mm 25 mm 30 mm 35 mm |
Width | 6 mm |
Uniclass | |
CAWS | G20/41 Bolt/ screw assemblies G20/615 Bolt/ screw assemblies |
Specification data - Wood screws
Standard | To BS EN 14592.Guidance for specification option: Diameters 3.0, 3.5 and 4.0 screws are not CE marked. |
Material | Carbon steel. |
Finish | Electro galvanized. |
Screw details | |
Head option | Flat, countersunk head with facet. |
Screw pattern | Serrated thread. |
Size | |
Diameter | 3 mm. |
Length | 16 mm. |
Service class | 1. |
Third party certifications
Literature
TTUFS: Countersunk Wood Screw - Electro Galvanised
