TT1-400 Tactile / corduroy anti-slip tile - Anti-Slip Corduroy Tactile Tile

Verified by manufacturer 2 months ago

TT1-400 - Aluminium

AATi (Antislip Antiwear Treads International) Variant:
Third party certifications:
  • London Underground

    London Underground

    Certificate type

Tactile / corduroy tiles. Cast metal.

Jump to:
+44 (0)1376 346278 Website

Application

  • Rail and light rail.
  • Tactile and anti-slip.
  • Stair nosing (lower footfall).
  • Tactile or hazard warning.

Description

AATi Type TT1/400 is a cast metal anti-slip tactile / corduroy tile with silicon carbide granules cast into the metal matrix of the wearing surface. These plates are purpose-made in 400 x 400 mm sections to suit the required stair width and in sets of two strips to give the required 800 mm of cover as per BS 8300:2009.


Features and benefits:

  • Anti-slip silicon carbide.
  • High anti-slip performance.
  • Cost-effective, long-term installation.

General information

Color

Beige

Guidance for specification option:

Nickel Bronze.

Black

Guidance for specification option:

Cast Iron Zinc Plated.

Copper

Guidance for specification option:

Gunmetal.

Silver

Guidance for specification option:

Aluminium.

Finish

Natural

Material

Aluminium

Cast iron

Guidance for specification option:

Zinc plated black.

Gunmetal

Nickel bronze

Shape

Square

Length

400 mm

Width

400 mm

Height

8 mm

Warranty description

25 year

Uniclass

Pr_35_90_60_79 Slip-resistant rebate insertsPrimary

CAWS

L30/585 Applied slip-resistant

Specification data - Slip-resistant rebate inserts

Material

Aluminium.

Format

Tile.

Thickness (minimum)

5 mm.

Slip resistance – water wet (minimum)

Guidance for specification option:

All AATi products achieve minimum PTV/SRV to BS 7976-2.

Colour

Silver.

Predrilled holes

-

Manufacturer guidance

All products are supplied cut to length, pre-drilled and countersunk with production drawings submitted for client approval.

Sustainability data

Contains Red List materials

No

Country of material origin

United Kingdom

Country of product manufacture

United Kingdom

Guidance for specification option:

England, UK.

Recyclability

100%

Guidance for specification option:

100% Recyclable Materials.

Recycled content

As defined in clause 7.8 of BS EN ISO 14021

95 %

Third party certifications

London Underground

London Underground

AATi certificate for AATi Anti-slip Corduroy Tacile Tiles ref TT1 400

Literature

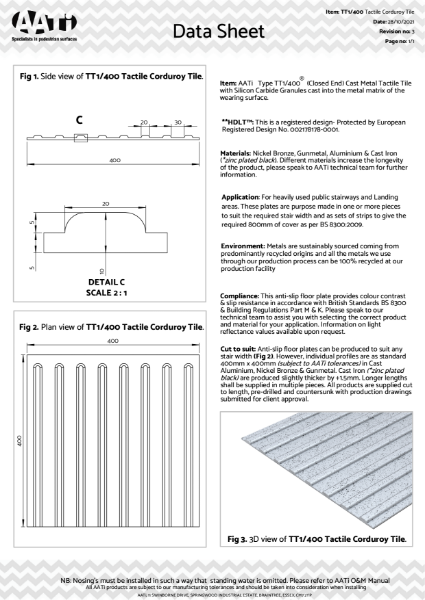

TT1-400 Closed End Data Sheet

TT1-400 Closed End Data Sheet

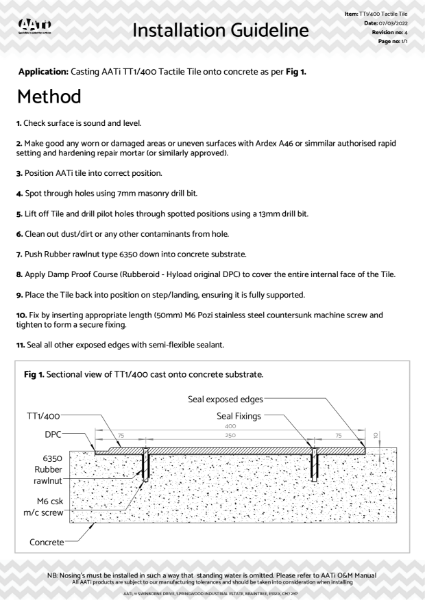

TT1-400 rawlnut into concrete installation guidelines Rev. 4

TT1-400 rawlnut into concrete installation guidelines Rev. 4

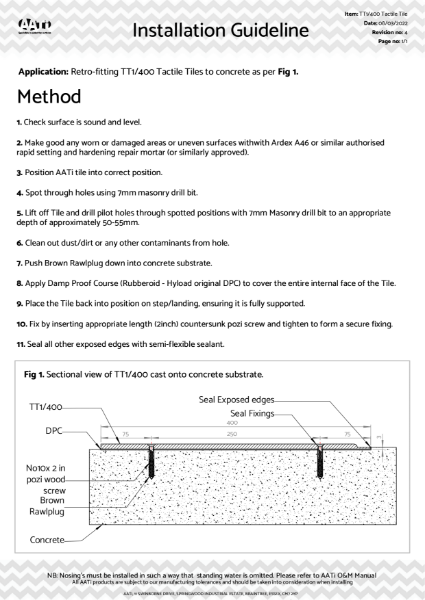

TT1-400 woodscrew into concrete installation guidelines Rev. 4

TT1-400 woodscrew into concrete installation guidelines Rev. 4

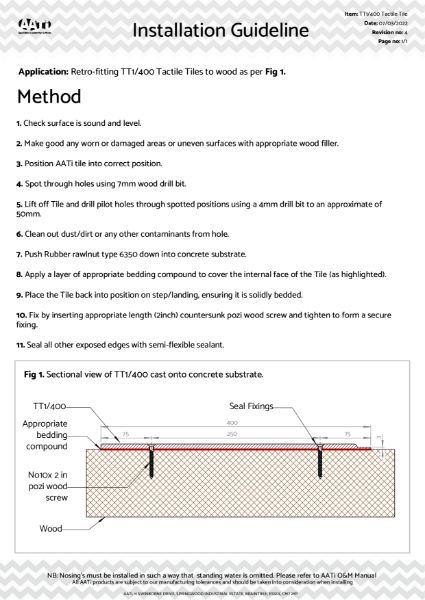

TT1-400 woodscrew into wood installation guidelines Rev. 4

TT1-400 woodscrew into wood installation guidelines Rev. 4
