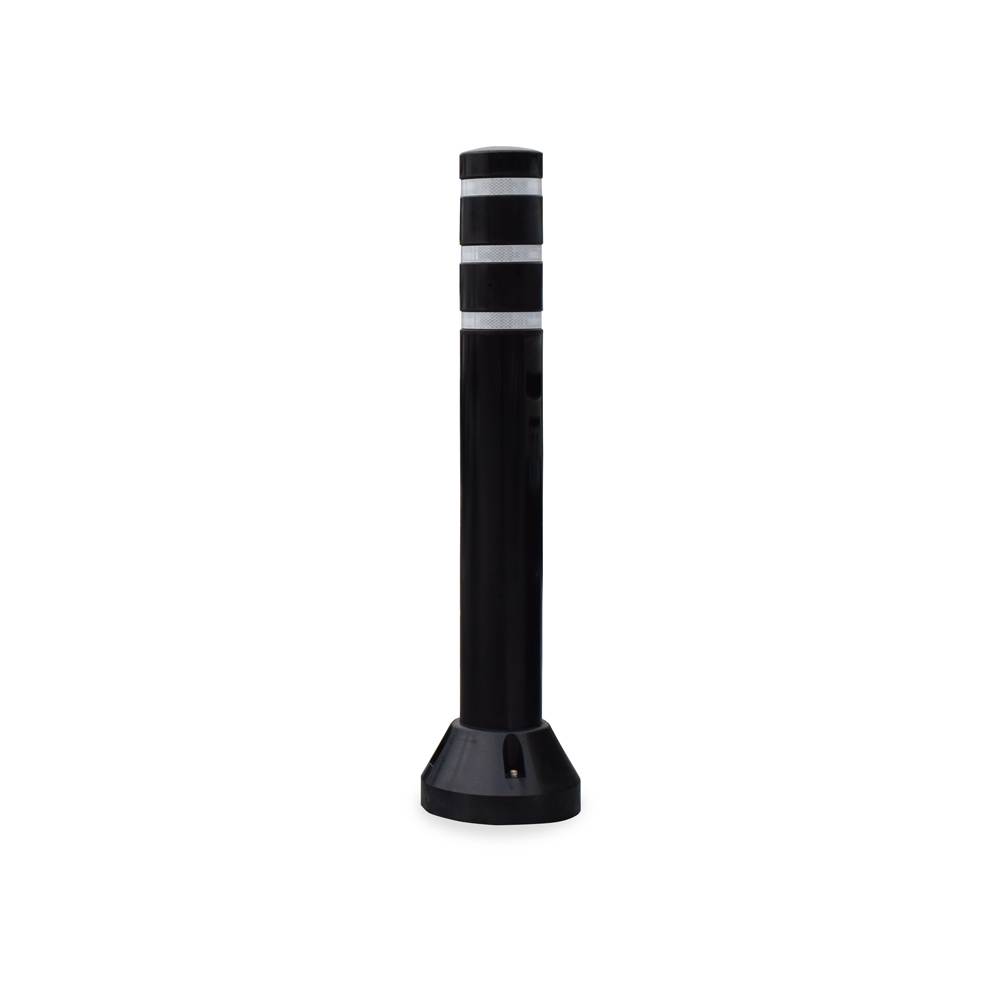

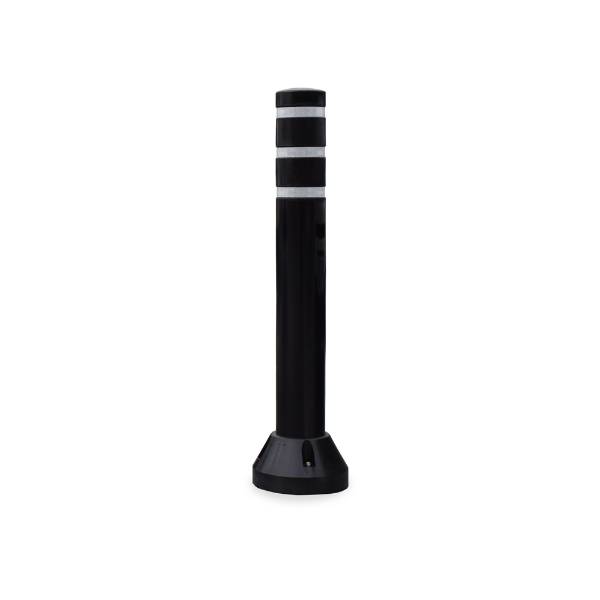

TS130 Waterproof Sealed Impact Flex Baseplate Bollard

Verified by manufacturer 2 months ago

Watts Urethane

Base fixed, lightweight and flexible bollard.

Jump to:
+44 (0)1594847150 Website

Application

Suitable for installation in various applications including multi-story car parks and airports.

Description

TS130 is the same as the base fixed bollard (TB130) with the addition of a specifically designed galvanised base plate that is fixed directly into the concrete base pad with the four threaded location pins facing up. The location pins protrude up through the special external surface floor seal to allow the bollard to be securely fixed in position. This fixing method coupled with the unique flex technology of the bollards greatly reduces any potential for damage to the seal floor when hit by a parking vehicle. The bollards can be accessorised with reflective tape in red, white or yellow.


Features and benefits:

  • Part of the Impact-Flex™ range.
  • Lightweight.
  • Base fixed directly into concrete base pad.
  • The option of red, white or yellow reflective tape.
  • Urethane technology and design.
  • Flexible enough to prevent damage to any ground installation.
  • Low maintenance.
  • Tough and durable.
  • Chip and damage resistant.
  • Weather and abrasion resistant.
  • One person installation.

General information

Color

Black

Red

Yellow

Finish

Smooth

Material

Polyurethane

Width

187 mm

Height

1070 mm

WarrantyDescription

One year

Uniclass

Pr_20_76_08_62 Plastics bollardsPrimary

CAWS

Q50/31 Bollards

Q50/190 Bollards

Specification data - Plastics bollards

Material

Polyurethane.

Steel reinforcement

Not required.

Dimensions

-

Size and profile

187 mm diameter.

Height

1070 mm.

Length below ground

300 mm.

Top profile

Flat.

Base

Flat.

Finishes

-

Colour

Black.

Cast finish

Smooth.

Applied finishes

Retro-reflective tape, red.

Retro-reflective tape, white.

Retro-reflective tape, yellow.

Accessories

Self-righting mechanism.

Fixing

Base plated.

Weight

12 kg.

Environmental information

Contains Red List materials

No

Country of material origin

United Kingdom

Country of product manufacture

United Kingdom

Literature

TS130 Waterproof Sealed Impact Flex Baseplate Bollard

TS130 Waterproof Sealed Impact Flex Baseplate Bollard
