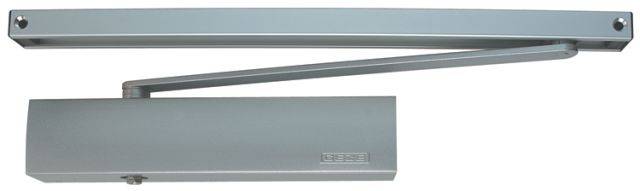

Name: TS 5000 Overhead Door Closer
Brand: 7ULewr8aAUpnoo1xkxV21g
SKU: 9DodSuQX8FQ4T5Ycxgp7a

Certifire Certificate

Certificate type

Features

Non-projecting guide rail arm

Closing force adjustable from front

Optical closing force indicator

Adjustable backcheck

Value adjustable latching speed

All adjustments on front of closer

Tested and approved to BS EN 1154: 1997

Tested to conform with CE requirements

Uniclass 2015

Pr_30_36_59_15 Controlled door closersPrimary

CAWS

P21/12 Overhead door closers

P21/410 Overhead door closers

Product Reference

TS 5000 Overhead Door Closer

Type

931.10.609

TS 5000, standard cover, silver finish.

931.11.810

TS 5000, designer cover, satin stainless steel.

931.11.811

TS 5000, designer cover, polished stainless steel.

931.11.820

TS 5000 S, designer cover, satin stainless steel.

931.11.821

TS 5000 S designer cover, polished stainless steel.

931.11.830

TS 5000 L, designer cover, satin stainless steel.

931.11.831

TS 5000 L, designer cover, polished stainless steel.

931.11.840

TS 5000, standard cover, satin stainless steel finish.

931.11.841

TS 5000, standard cover, polished stainless steel finish.

931.11.848

TS 5000, standard cover, polished brass finish.

931.11.859

TS 5000 S, standard cover, silver finish.

931.11.860

TS 5000 S, standard cover, satin stainless steel finish.

931.11.861

TS 5000 S, standard cover, polished stainless steel finish.

931.11.868

TS 5000 S, standard cover, polish brass finish.

931.11.879

TS 5000 L, standard cover, silver finish.

931.11.880

TS 5000 L, standard cover, satin stainless steel finish.

931.11.881

TS 5000 L, standard cover, polished stainless steel finish.

931.11.888

TS 5000 L, standard cover, polished brass finish.

As schedule ___

Application

1

Standard, closer fixed to pull side of the door.

61

Transom, closer fixed to push side of the door.

66

Parallel arm, closer fixed to push side of door with fixing bracket.

Power size

2

3

4

5

6 Options

Glass clamping plate

Glass mounting plate

Hold open insert

Not for fire doors.

Mounting plate

Soffit bracket, frame mounting

T-stop guide rail

Standard product features

Features:

Non-projecting guide rail arm.

Closing force adjustable from front.

Optical closing force indicator.

Adjustable backcheck.

Value adjustable latching speed.

All adjustments on front of closer.

Tested and approved to BS EN 1154: 1997.

Tested to conform with CE requirements.

Dimensions (l x d x h):

Designer: 337 x 52 x 73 mm.

Standard: 287 x 47 x 60 mm.

Product Options

Cover:

– Designer:

Stainless steel.

Half-radius corners.

– Standard:

Carbon steel.

Electro-plated to a range of finishes.

Power size:

2: Door width (maximum): 850 mm; closing moments (minimum): 13 Nm.

3: Door width (maximum): 950 mm; closing moments (minimum): 18 Nm.

4: Door width (maximum): 1100 mm; closing moments (minimum): 26 Nm.

5: Door width (maximum): 1250 mm; closing moments (minimum): 37 Nm.

6: Door width (maximum): 1400 mm; closing moments (minimum): 54 Nm.
