TS 4000 Electrohydraulic Overhead Door Closer

TS 4000 Electrohydraulic Overhead Door Closer

Third party certifications:
  • Certifire Certificate

    Certifire Certificate

    Certificate type

Hafele UK Ltd

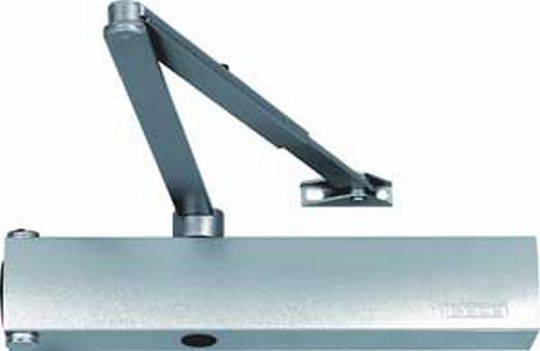

Overhead door closer with electrohydraulic hold-open or free swing.

Jump to:
+44 (0)800 171 2907 www.hafele.co.uk
Description

Surface mounted, rack and pinion door closers with electrohydraulic hold-open or free-swing.

Suitable for interior use only. Units can be supplied non-handed, or with handed stainless steel cover.

General information

Features

Closing force adjustable from front

Optical closing force indicator

Adjustable backcheck

Value adjustable latching speed

All adjustments at front of closer

Tested and approved to BS EN 1155: 1997

Tested to conform with CE requirements

Material

Aluminium body and guide rail, carbon steel arm

Uniclass 2015

Pr_30_36_59_15 Controlled door closersPrimary

CAWS

P21/16 Electromagnetic hold open/ Swing-Free devices

P21/471 Electromagnetic hold open/ swing free devices

Specification data - Controlled door closers

Product Reference

TS 4000 Electrohydraulic Overhead Door Closer

Type

931.16.030

TS 4000 EFS, free swing, left handed, satin stainless steel cover.

931.16.031

TS 4000 EFS, free swing, left handed, polished stainless steel cover.

931.13.339

TS 4000 EFS, free swing, non-handed, electro-plated silver body.

931.16.040

TS 4000 EFS, free swing, right handed, satin stainless steel cover.

931.16.041

TS 4000 EFS, free swing, right handed, polished stainless steel cover.

931.16.050

TS 4000 E, hold-open, left handed, satin stainless steel cover.

931.10.051

TS 4000 E, hold-open, left handed, polished stainless steel cover.

931.16.559

TS 4000 E, hold-open, non-handed, electro-plated silver body.

931.16.060

TS 4000 E, hold-open, right handed, satin stainless steel cover.

931.10.061

TS 4000 E, hold-open, right handed, polished stainless steel cover.

As schedule ___

Application

1

Standard, closer fixed to pull side of the door.

61

Transom, closer fixed to push side of the door.

Power size

1

2

3

4

5

6

Standard product features

Features:

  • Closing force adjustable from front.
  • Optical closing force indicator.
  • Adjustable backcheck.
  • Value adjustable latching speed.
  • All adjustments at front of closer.
  • Tested and approved to BS EN 1155: 1997.
  • Tested to conform with CE requirements.

Material:

Aluminium body and guide rail, carbon steel arm.

Electrical data:

  • Operating voltage: 24 V DC ± 10 %.
  • Connecting load: 45 mA.
  • Permissible ripple (maximum): 20 %.
  • Enclosure rating: IP43.
  • A switch is required for testing.

Product Options

Type:

– TS 4000 EFS:

When voltage applied to closer the door acts as if no closer is present, but when there is no voltage the closer operates.

– TS 4000 E:

When voltage applied to the closer the door is held open, but when there is no voltage the closer operates. The door may also be closed manually at any time.

Power size:

  • 1: Door width (maximum): 750 mm; closing moments (minimum): 9 Nm.
  • 2: Door width (maximum): 850 mm; closing moments (minimum): 13 Nm.
  • 3: Door width (maximum): 950 mm; closing moments (minimum): 18 Nm.
  • 4: Door width (maximum): 1100 mm; closing moments (minimum): 26 Nm.
  • 5: Door width (maximum): 1250 mm; closing moments (minimum): 37 Nm.
  • 6: Door width (maximum): 1400 mm; closing moments (minimum): 54 Nm.

Third party certifications
  • CF145 : 120 mins, timber
