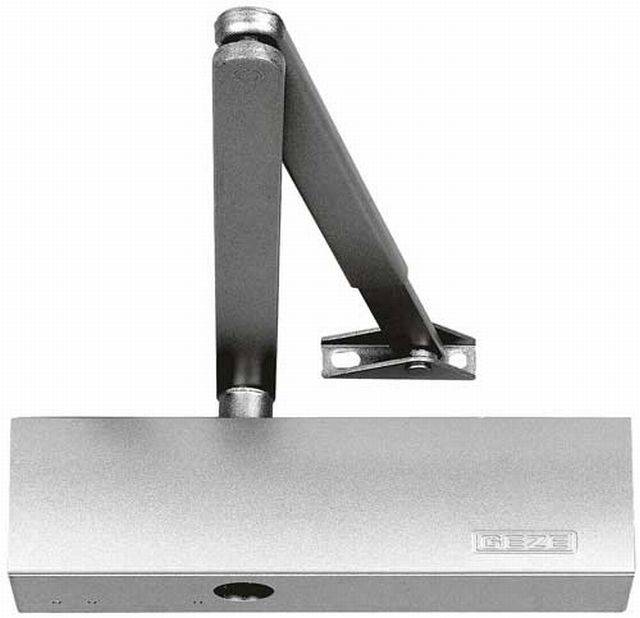

TS 3000 BC Overhead Door Closer

Third party certifications:
  • Certifire Certificate

    Certificate type

Hafele UK Ltd

Surface mounted, overhead rack and pinion, guide rail door closer, for doors to 1100 mm wide.

Jump to:
+44 (0)800 171 2907 www.hafele.co.uk
Description

Surface mounted, eccentric rack and pinion door closer with guide rail. Suitable for doors up to 1100 mm wide.

General information
Features

Non-projecting guide rail arm

Closing force adjustable from front

Optical closing force indicator

Adjustable backcheck (TS 3000 BC only)

Valve adjusting latching speed

Valve adjusting closing speed

Tested and approved to BS EN 1154: 1997

Tested to conform with CE requirements

Uniclass 2015
Pr_30_36_59_15 Controlled door closersPrimary
Specification data - Controlled door closers
Product Reference

TS 3000 BC Overhead Door Closer

Type

931.16.149

TS 2000 NV, standard cover, electro-plated silver.

931.16.150

TS 2000 NV, standard cover, electro-plated satin stainless steel.

931.16.151

TS 2000 NV, standard cover, electro-plated polished stainless steel.

931.16.158

TS 2000 NV, standard cover, electro-plated polished brass.

931.16.169

TS 2000 NVBC, standard cover, electro-plated silver.

931.16.170

TS 2000 NVBC, standard cover, electro-plated satin stainless steel.

931.16.171

TS 2000 NVBC, standard cover, electro-plated polished stainless steel.

931.16.178

TS 2000 NVBC, standard cover, electro-plated polished brass.

931.16.180

TS 2000 NVBC, designer cover, satin stainless steel.

931.16.181

TS 2000 NVBC, designer cover, polished stainless steel.

As schedule ___

Application

1

Standard, closer fixed to pull side of the door.

61

Transom, closer fixed to push side of the door.

66

Parallel arm, closer fixed to push side of door with fixing bracket.

Power size

1

Not TS 3000 B.

2

3

4

Other requirements

Glass clamping plate

Glass mounting plate

Hold open insert

Not for fire doors.

Mechanical backcheck

Not for fire doors.

Mounting plate

Soffit bracket, frame mounting

T-stop guide rail

Standard product features

Features:

  • Non-projecting guide rail arm.
  • Closing force adjustable from front.
  • Optical closing force indicator.
  • Adjustable backcheck (TS 3000 BC only).
  • Valve adjusting latching speed.
  • Valve adjusting closing speed.
  • Tested and approved to BS EN 1154: 1997.
  • Tested to conform with CE requirements.

Dimensions (l x d x h):

  • Designer: 277 x 52 x 73 mm.
  • Standard: 226 x 46 x 60 mm.
  • TS 3000 B: 260 x 40 x 50 mm.

Product Options

Cover:

– Designer:

  • Stainless steel.
  • Half-radius corners.

– Standard:

  • Carbon steel.
  • Electro-plated to a range of finishes.

Power size:

  • 1: Door width (maximum): 750 mm; closing moments (minimum): 9 Nm.
  • 2: Door width (maximum): 850 mm; closing moments (minimum): 13 Nm.
  • 3: Door width (maximum): 950 mm; closing moments (minimum): 18 Nm.
  • 4: Door width (maximum): 1100 mm; closing moments (minimum): 26 Nm.

Third party certifications
  • CF145 : 120 mins, timber
