Trueline Pressed Aluminium Fascia and Soffit
Verified by manufacturer 2 months ago
A range of fascias and soffits manufactured from aluminium.
Application
Suitable for residential and commercial applications.
Description
A range of bespoke fascias and soffits manufactured from aluminium. Aluminium fascias have become the widely preferred option owing to their lightweight, corrosion-resistant, low maintenance and aesthetically pleasing characteristics.
Trueline aluminium fascia and soffit can be used behind architectural guttering or can form an integrated eaves/soffit feature incorporating concealed guttering.
Trueline fascia and soffit range of components are available in various girths from 250 mm to 525 mm and various profiles. Other profiles and girths are available.
Features and benefits:
- Made from 1050AH14 grade aluminium sheet to BS 2997 (EN 612) with thickness determined by overall girth required. Up to 450 mm: 2 mm sheet; Over 450 mm: 3 mm sheet.
- 100% recyclable, lightweight and strong.
- Various fascia profiles including L shape, box section, angled drip edge and radius fascias are available.
- Available mill finished (uncoated) or polyester powder coated in RAL or BS standard colours.
General information
Color | Other |
Finish | Mill Powder-coated |
Material | Aluminium |
Shape | Other |
Length | Bespoke |
Width | Bespoke |
Height | Bespoke |
Uniclass | |
CAWS | G20/950 Fascias/ barges/ soffits G20/99 Fascias/ barges/ soffits R10/321 Combined fascia, soffit and gutter R10/13 Combined fascia, soffit and gutter |
Specification data - Aluminium combined fascias, soffits and gutters
Form | Fascia and soffit. |
Fascias | |
Profile | L shapeBox section.Angled drip edge.Radius. |
Size | Manufacturer guidanceInsert requirements or refer to a drawing. |
Thickness or gauge | 2 mm.3 mm.Manufacturer guidanceThe thickness is determined by the overall girth required. Up to 450 mm: 2 mm sheet. Over 450 mm: 3 mm sheet. |
Finish | Mill.Powder coating. |
Colour | Manufacturer guidancePolyester powder-coating is available in a choice of RAL or BS standard colours. Consult manufacturer and insert requirements. |
Soffits | |
Size | Manufacturer guidanceInsert requirements or refer to a drawing. |
Thickness or gauge | 2 mm.3 mm.Manufacturer guidanceThe thickness is determined by the overall girth required. Up to 450 mm: 2 mm sheet. Over 450 mm: 3 mm sheet. |
Finish | Mill.Powder coating. |
Colour | Manufacturer guidancePolyester powder-coating is available in a choice of RAL or BS standard colours. Consult manufacturer and insert requirements. |
Sustainability data
Contains Red List materials | No |
Country of product manufacture | United Kingdom |
Material | Aluminium |
Manufacturing plant location | |
Recyclability | 100% recyclable |
Expected Life | 30 year |
Literature

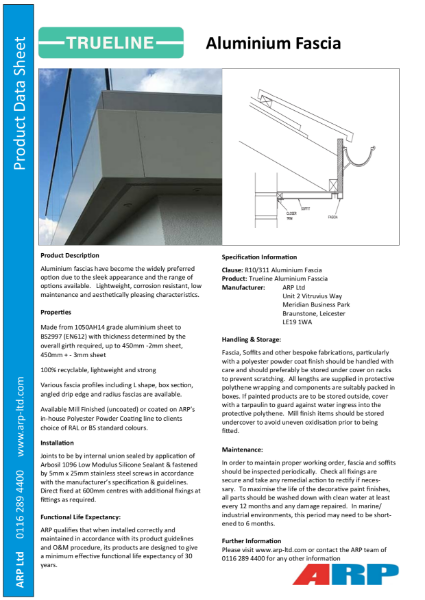

Trueline Fascia Data Sheet
Case studies
Bespoke Aluminium Skylights and Column Casings for Blind Veterans UK
Irwin Place - Bespoke Aluminium Rainwater and Roofline Products
