Trovex

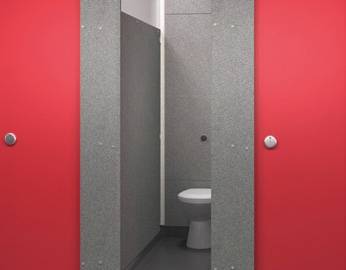

Duct panelling which conceals pipework and provides easy access for maintenance. For use in conjunction with Trovex T1:90 cubicles.

Jump to:
+44 (0)1707 254170 www.trovex.com
Description

Duct panelling which conceals pipework and provides easy access for maintenance. For use in conjunction with Trovex T1:90 cubicles.

Features and benefits:

  • Wide choice of laminate finishes and unique colourful designs.
  • Full height or cubicle height duct panelling.
  • Easy access, concealed clip-fixing system.
  • Custom dimensions to suit the project.
  • Pre-drilled components for accurate on-site assembly.
  • SGL (solid grade laminate) material.
  • All clips and fixings are supplied with panels.

General information

Finish

Wide choice of laminate finishes, contact manufacturer for details

Color

Wide range of colour schemes for personality and brand statement, contact manufacturer for details

Features

Simple installation, easy access, concealed clip-fixing system, custom dimensions to suit the project, pre-drilled components for accurate on-site assembly, all clips and fixings are supplied with panels

Material

12 mm thick solid grade laminate

WarrantyDescription

Lifetime guarentee

Uniclass 2015

Ss_25_25_45_25 Duct and wall panel lining systemsPrimary

CAWS

K32/140 Duct/ wall linings – panels only

K32/15 Duct/ wall lining panels

K32/160 Duct linings – preplumbed panels and proprietary frames

Specification data - Duct and wall panel lining systems

Product Reference

Trovex T1:90 Duct Panelling

Height

Cubicle height

Full height

Width

Insert requirement.

Colour/ Finish

Insert requirement from manufacturer's literature.

Standard product features

Material:

12 mm thick solid grade laminate (SGL).

Edges:

Radiused and polished.

Product Options

Height:

Panels commence 100 mm above FFL to allow for skirting detail (supplied by others).

Fixing:

Hung on concealed clips which locate in groove on flashgap panels, screw fixed to 44 x 44 mm PSE softwood frame (supplied by others).

Digital objects
Platform Compatible Version Certified to
Revit
-

1

2.1
IFC
-

1

2.1
Download now from NBS National BIM Library
