Description

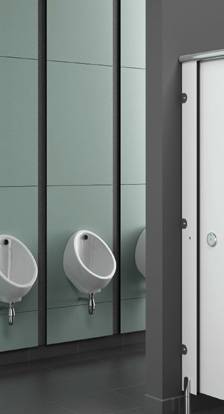

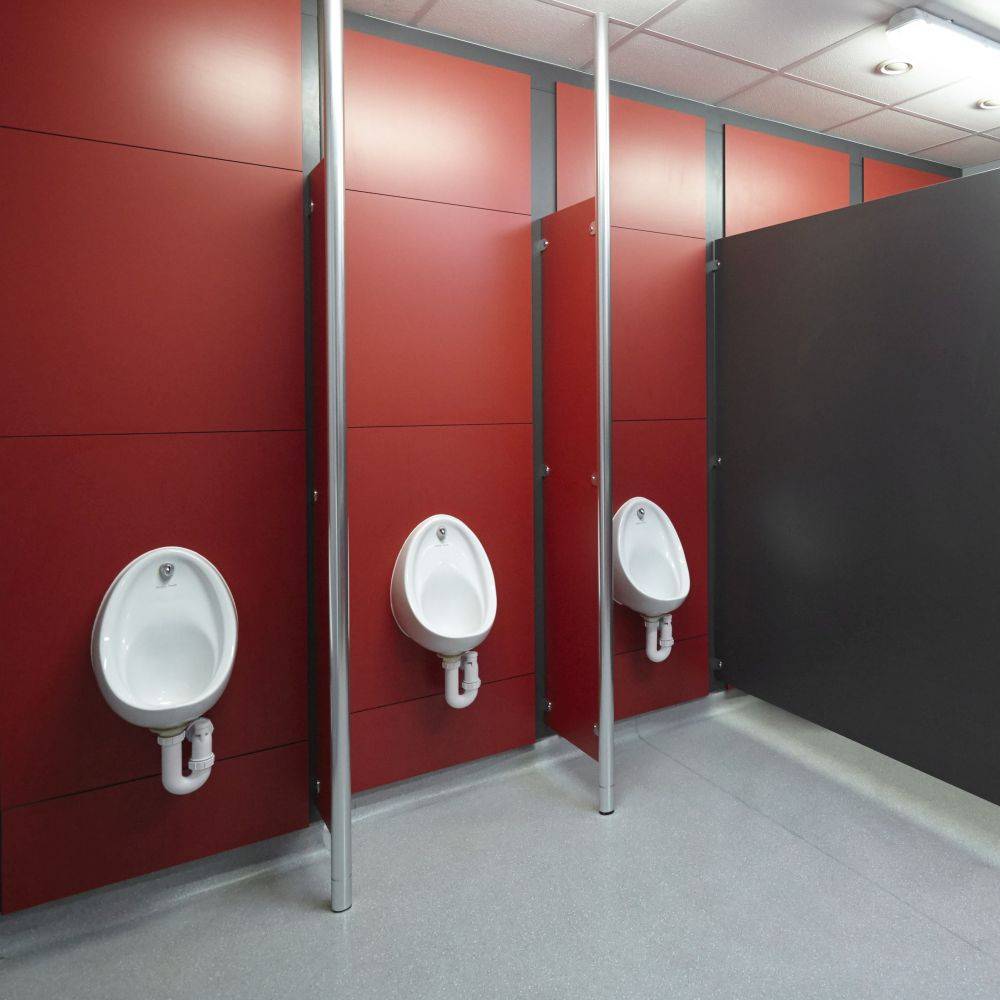

Duct panelling which conceals pipework and provides easy access for maintenance. For use in conjunction with Trovex S3:60 cubicles.

Features and benefits:

  • Wide choice of laminate finishes and unique colourful designs.
  • Full height, cubicle height or low level duct panelling.
  • Easy access, concealed clip-fixing system.
  • Custom dimensions to suit the project.
  • Pre-drilled components for accurate on-site assembly.
  • Durable SGL (solid grade laminate) panels.
  • All clips and fixings are supplied with panels.

General information
Material

SGL

12 mm thick solid grade laminate.

Color

Choice available from Trovex laminate colour range

Choice available from Trovex laminate colour range

Features

Choice of laminate finishes and colour designs, easy access concealed clip fixing system, custom dimensions

Size

1200 x 250 x 800 mm

2400 x 250 x 800 mm

1960 x 250 x 800 mm

Uniclass 2015 Duct and wall panel lining systems (Ss_25_25_45_25)
Specification data
Product Reference

Trovex S3:60 Duct Panelling

Height

Cubicle height

Full height

Low height

Width

Insert requirement.

Material

SGL

12 mm thick solid grade laminate.

Colour/ Finish

Insert requirement from manufacturer's literature.

Standard product features

Edges:

Radiused and polished.

Product Options

Height:

Panels commence 100 mm above FFL to allow for skirting detail (supplied by others).

Fixing:

Hung on concealed clips which locate in groove on flashgap panels, screw fixed to 44 x 44 mm PSE softwood frame (supplied by others).

Digital objects
PlatformCompatibleVersionCertified to
IFC
- 1 2.1
Revit
- 1 2.1
Download now from NBS National BIM Library
