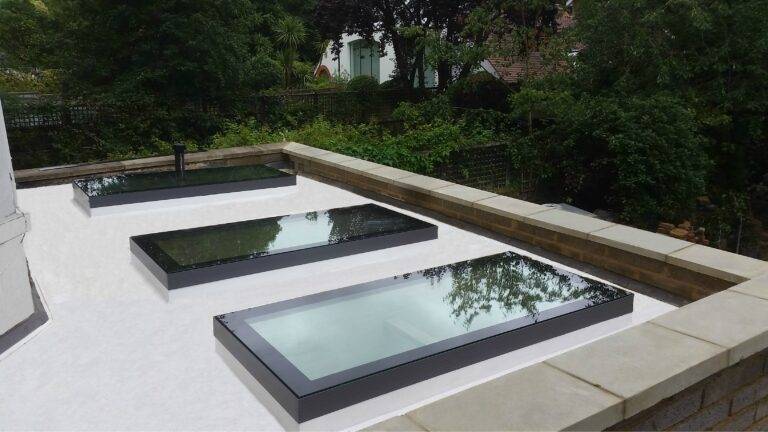

TRL90 Rooflight
Verified by manufacturer 27 days ago
Flat aluminium rooflight.
Application
Aluminium framed rooflight for residential and commercial buildings. The TRL90 rooflight is particularly suitable for retrofitting old skylights or introducing natural light to a wide range of spaces, including:
- Housing.
- Retail.
- Sports and leisure facilities.
- Medical facilities.
- Educational buildings.
Description
The TRL90 flat aluminium rooflight brings in light as well as style to residential and commercial properties. The clean lines offer a modern architectural, flush finish that is suitable for both new-build and retrofit projects. It has been designed to be a product that is simple and straightforward to manufacture.
Features and benefits:
- Frame value of just 1.0 W/m²K.
- Additional transom profile available to create larger rooflight spans.
- Compatible with both double and triple glazed units.
- A fully bonded glazing process offers impressive strength and high levels of thermal efficiency.
- Modern architectural looks.
- Flush finish.
- For commercial or residential applications.
- For retrofit or new-build.
- Easy to fabricate.
- Easy to fit.
- Available in any standard RAL colour.
General information
Color | Clear Beige Black Blue Bronze |
Finish | Powder-coated Glazed |
Material | Glass Aluminium |
Shape | Rectangle |
Length | Bespoke |
Width | Bespoke |
Height | Bespoke |
Uniclass | |
CAWS | L10/45 Rooflights L10/460 Rooflights |
SKU Code | TRL90 |
Specification data - Framed rooflights
Classification data | |
Form | Flat. |
Size | Manufacturer guidanceConsult manufacturer for details and insert requirements. |
Product performance | |
Whole window U-value | 1.0 W/m2K. |
Frame | |
Material | Aluminium. |
Finish | |
Coating | Powder-coated. Guidance for specification option: All powder coating undertaken by Qualicoat approved supplier. |
Colour | Manufacturer guidanceInsert requirements.
|
Film thickness (minimum) | Coating applicator to determine. |
Glazing or infill | |
Type | Insulating glass units. |
Construction | Double glazed, 32 mm. Triple glazed, 44 mm. |
Colour | Clear. |
Coating | Manufacturer guidanceConsult with glass supplier for required specification to suit and insert requirements. |
Integral kerb | Aluminium. |
Accessories | Manufacturer guidanceConsult manufacturer for details and insert requirements or omit. |
Sustainability data
Material | Glass Aluminium |
