NBS Source
Triton TRIFIX ADHESIVE

Application

Formulated as an adhesive for bonding and anchoring most building materials.

Description

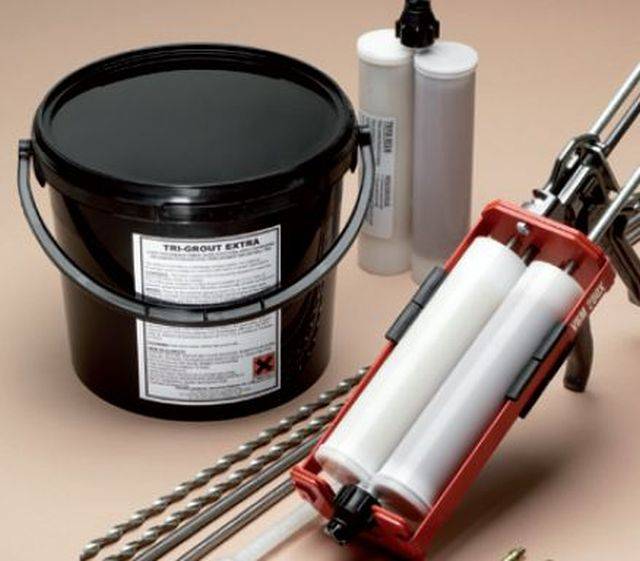

A two component epoxy resin system formulated for use with twin component side by side cartridges using either hand operated or, more normally, air operated guns, using 'at the nozzle' static spiral mixer or pot mix for larger applications. It is colour coded for visual assurance so that the two components are fully mixed. The product is solvent free, thixotropic (will not readily slump), and cures in cold, damp conditions.


Trifix is formulated as an adhesive for bonding and anchoring most building materials e.g. brick, stone, steel, mortar and timber.


Features and benefits:

  • Once cured, Triton Trifix creates a strong stress free joint regardless of the surrounding environment.
  • The colour, but no other ingredient, may be changed at the manufacturers discretion. The change will not affect the cured product in any way.

General information

Color

Orange

Red

Material

Epoxy resin

Shape

Formless

Liquid adhesive.

Length

400 mL side-by-side cartridge.

-

Width

400 mL side-by-side cartridge.

-

Height

400 mL side-by-side cartridge.

-

Uniclass

Pr_20_31_53_27 Epoxy resin groutsPrimary

CAWS

C41/620 Resin injection repair of cracks

C41/640 Pinning

C42/155 Crack repairs

Specification data - Epoxy resin grouts Enhanced data

Colour

Orange.

Trifix resin.

Red.

Trifix hardener.

Density

At 25°C.

1.7.

Trifix resin.

1.2.

Trifix hardener.

TensileStrength

Properties after curing 21 days at 20°C.

35 MPa.

Standard

ISO/R 527, ISO 178.

Flexural strength

Properties after curing 21 days at 20°C.

30 MPa.

Compression strength

Properties after curing 21 days at 20°C.

60 MPa.

Size:

400 mL side-by-side cartridge.
