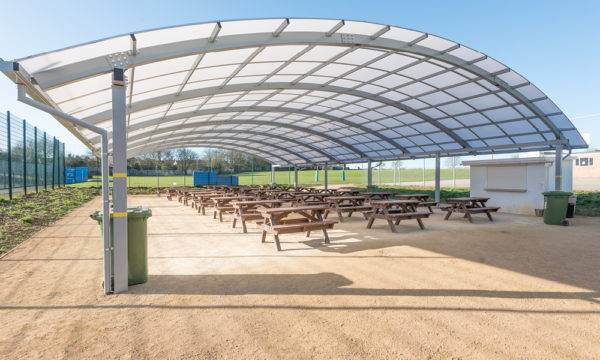

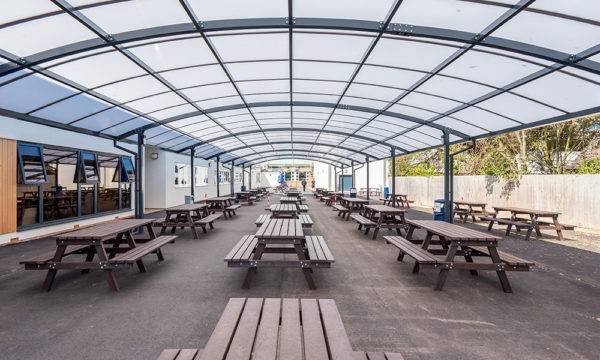

TRITON Symmetric Polycarbonate Canopies

Verified by manufacturer 3 months ago

urbanspec Third party certifications:
  • ISO 14001 Environmental Management Systems

    Certificate type

  • Alcumus SafeContractor

    Alcumus SafeContractor

    Certificate type

  • CHAS

    CHAS

    Certificate type

  • Constructionline

    Constructionline

    Certificate type

  • ISO 9001 Quality Management

    Certificate type

  • smas WORKSAFE

    smas WORKSAFE

    Certificate type

With their versatile modular design, curved roof, and durable materials, Triton canopies are ideal for various outdoor uses, offering clearspan structures up to 15 metres wide.

Jump to:
01227 200404 Website

Application

Suitable for outdoor dining areas, social spaces, playgrounds as well as many other uses.

Description

With its unobtrusive curved roof design, the TRITON Maxx can be constructed in widths of up to 15 metres as clearspan structures, and more with the use of intermediate columns.


TRITON canopies are based around a modular design theme, providing a consistent aesthetic and efficient cost structure with the flexibility for specific site requirements and constraints.


The standard roof specification is the advanced multiwall polycarbonate providing a bright atmosphere without glare, with an aluminium glazing system ensuring a reliable and easy to maintain roof cover for the long term.


Features and benefits:

  • Designed and manufactured in accordance with BS EN 1090 EXC 2 accreditation.
  • Offers high durability from an all steel-frame with polyester powder-coat finish, multiwall polycarbonate roof panels, aluminium glazing system and galvanized steel rainwater goods.
  • The roof radius and column positions can be adjusted to suit adjacent building design.
  • 25 year structure and 15 year roof covering warranties.
  • Can be further enhanced with glass or polycarbonate vertical cladding for more exposed locations.

General information

Color

Blue

Black

Brown

Grey

Green

Show more

Finish

Powder-coated

Galvanized

Material

Steel

Polycarbonate

Shape

Other

Length

Bespoke

Width

Bespoke

Height

Bespoke

Warranty description

15 year

Guidance for specification option:

Structure warranty.

25 year

Guidance for specification option:

Roof warranty.

Uniclass

Pr_20_65_78_58 Open-sided sheltersPrimary

CAWS

B91/385 Shelter

B91/330 Canopy

Specification data - Open-sided shelters

Description

Open-sided shelter.

Manufacturer

Urbanspec.

Shelter description

Curved roof canopy shelter.

Dimensions

-

Plan size

-

Manufacturer guidance

Can be constructed in widths from 1–15 m as clearspan structures. Wider spans can be achieved using intermediate columns. Contact manufacturer for details and insert requirements.

Height

-

Manufacturer guidance

Contact manufacturer for details and insert requirements.

Frame

-

Material

Steel.

Finish

Polyester powder-coated.

Guidance for specification option:

As standard. Colours selected from a basic range or from the RAL colour selector. Contact manufacturer for details.

Hot dip galvanized.

Guidance for specification option:

Specified for the harshest environments where a decorative finish is not required.

Colour

Galvanized.

Guidance for specification option:

Hot dip galvanized.

RAL colour.

Guidance for specification option:

Insert requirements only when specified with polyester powder-coated finish.

Roof covering

Multiwall polycarbonate

Guidance for specification option:

Offering a good balance of light transmission and minimal glare. Available in colours if required. Contact manufacturer for details.

Clear solid polycarbonate

Guidance for specification option:

A cost effective and lighter weight alternative to glass that is significantly more resistant to impact damage.

Profiled steel sheet.

Guidance for specification option:

Profiled steel roof cladding is available in a range of standard top coat colours with white underside.

Bespoke.

Guidance for specification option:

Glass and steel roof types can be specified as a bespoke option. Contact manufacturer for details.

Openings

-

Windows

Not required.

Solid polycarbonate.

Multiwall polycarbonate.

Aluminium glazed curtain walling.

Planar glass.

Rainwater drainage

Not required.

Guttering.

Guidance for specification option:

Designed with integral steel guttering, colour powder-coated to match the canopy steel frame for long term durability and ease of maintenance.

Downpipes.

Guidance for specification option:

Aluminium downpipes custom manufactured for each canopy with integral connections for maximum durability. Colour powder-coated finishes match the guttering and steel frame.

Accessories

Not required.

Lighting.

Guidance for specification option:

Lighting solutions are available to extend safe use of your covered space or walkway outside of daylight hours.

IR heaters.

Guidance for specification option:

External grade radiant electric heaters can be fitted to TRITON canopies to provide warmth in colder weather.

Timber post cappings.

Guidance for specification option:

Timber post cappings can help soften the appearance of a steel frame structure.

Post protector pads.

Guidance for specification option:

Foam protector pads with heavy duty PVC covers can be fitted to canopy posts for structures situated in play areas.

Mounting

Free standing.

Guidance for specification option:

As standard.

Cantilevered structures.

Wall mounted.

Guidance for specification option:

Providing the wall meets the appropriate structural requirements. Contact manufacturer for details.

Post centres

3.5–5.5 m.

Guidance for specification option:

Variations within the structural design achievable to avoid doorways, access routes or underground services. Contact manufacturer for details.

Sustainability data

Country of product manufacture

United Kingdom

Material

Steel

Polycarbonate

Manufacturing plant location

Recyclability


All non-production steel is 100% recycled and separated at source from fabrication and sheet metal processes.
All timber cladding products are sustainably sourced and certified with non-production material separated at source for 100% recycling.

Expected Life

25 year

Third party certifications

Third party certifications

ISO 14001 Environmental Management Systems

ISO 14001 Environmental Management Systems

ISO 14001:2015 Environmental Management System

Alcumus SafeContractor

Alcumus SafeContractor

Alcumus SafeContractor

CHAS

CHAS

CHAS Advanced

Constructionline

Constructionline

Constructline Gold Member

ISO 9001 Quality Management

ISO 9001 Quality Management

ISO 9001:2015 Quality Management System

smas WORKSAFE

smas WORKSAFE

smas WORKSAFE
