TRITON Asymmetric Polycarbonate Canopies
Verified by manufacturer 4 months ago

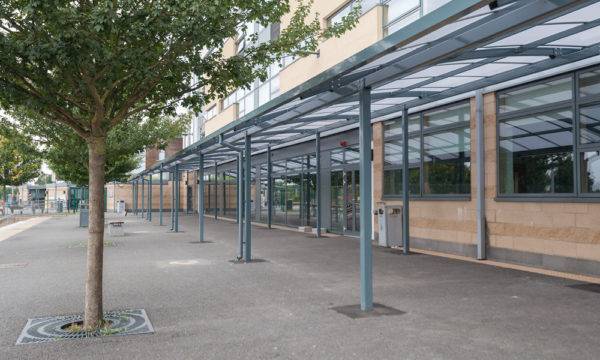

Asymmetric polycarbonate canopy with a curved roof profile that seamlessly integrates with existing architecture.
Application
Suitable for canopies situated alongside buildings for outdoor dining areas, social spaces and playgrounds, as well as many other uses.
Description
For canopies situated alongside buildings, the TRITON Maxx-A has an asymmetric curved roof profile that blends seamlessly with the existing architecture. With the potential to powder-coat the steelwork to any RAL colour, the canopy can be matched to the adjoining buildings to facilitate fully integrated design. Rainwater flows into guttering to the front edge of the canopy for ease of maintenance.
TRITON canopies are based around a modular design theme, providing a consistent aesthetic and efficient cost structure with the flexibility for specific site requirements and constraints.
The standard roof specification is the advanced multiwall polycarbonate providing a bright atmosphere without glare, with our proven aluminium glazing system ensuring a reliable and easy to maintain roof cover for the long term.
Features and benefits:
- Designed and manufactured in accordance with BS EN 1090 EXC 2 accreditation.
- Offers high durability from an all steel frame, multiwall polycarbonate roof panels, aluminium glazing system and galvanized steel rainwater goods.
- Multiple roofing options including polycarbonate and steel sheeting.
- The roof pitch and column positions can be adjusted to suit adjacent building design.
- 25 year structure and 15 year roof covering warranties.
- Can be further enhanced with glass or polycarbonate vertical cladding for more exposed locations.
General information
Color | Blue Black Brown Grey Green |
Finish | Powder-coated Galvanized |
Material | Steel Polycarbonate |
Shape | Other |
Length | Bespoke |
Width | Bespoke |
Height | Bespoke |
Warranty description | 15 year Guidance for specification option: Structure warranty. 25 year Guidance for specification option: Roof warranty. |
Uniclass | |
CAWS | B91/385 Shelter B91/330 Canopy |
Specification data - Open-sided shelters
Description | Open-sided shelter. |
Manufacturer | Urbanspec. |
Shelter description | Canopy shelter with an asymmetric curved roof profile. |
Dimensions | |
Plan size | Manufacturer guidanceCan be constructed in widths from 1–15 m as clearspan structures. Wider spans can be achieved using intermediate columns. Contact manufacturer for details and insert requirements. |
Height | Manufacturer guidanceContact manufacturer for details and insert requirements. |
Frame | |
Material | Steel. |
Finish | Polyester powder-coated.Guidance for specification option: As standard. Colours selected from a basic range or from the RAL colour selector. Contact manufacturer for details. Hot dip galvanized.Guidance for specification option: Specified for the harshest environments where a decorative finish is not required. |
Colour | Galvanized.Guidance for specification option: Hot dip galvanized. RAL colour.Guidance for specification option: Insert requirements only when specified with polyester powder-coated finish. |
Roof covering | Multiwall polycarbonate.Guidance for specification option: Offering a good balance of light transmission and minimal glare. Available in colours if required. Contact manufacturer for details. Clear solid polycarbonate.Guidance for specification option: A cost effective and lighter weight alternative to glass that is significantly more resistant to impact damage. Profiled steel sheet.Guidance for specification option: Profiled steel roof cladding is available in a range of standard top coat colours with white underside. Bespoke.Guidance for specification option: Glass and steel roof types can be specified as a bespoke option. Contact manufacturer for details. |
Openings | |
Windows | Not required.Solid polycarbonate.Multiwall polycarbonate.Aluminium glazed curtain walling.Planar glass. |
Rainwater drainage | Not required.Guttering.Guidance for specification option: Designed with integral steel guttering, colour powder-coated to match the canopy steel frame for long term durability and ease of maintenance. Downpipes.Guidance for specification option: Aluminium downpipes custom manufactured for each canopy with integral connections for maximum durability. Colour powder-coated finishes match the guttering and steel frame. |
Accessories | Not required.Lighting.Guidance for specification option: Lighting solutions are available to extend safe use of your covered space or walkway outside of daylight hours. IR heaters.Guidance for specification option: External grade radiant electric heaters can be fitted to TRITON canopies to provide warmth in colder weather. Timber post cappings.Guidance for specification option: Timber post cappings can help soften the appearance of a steel frame structure. Post protector pads.Guidance for specification option: Foam protector pads with heavy duty PVC covers can be fitted to canopy posts for structures situated in play areas. |
Mounting | Free standing. Guidance for specification option: As standard. Cantilevered structures. Wall mounted. Guidance for specification option: Providing the wall meets the appropriate structural requirements. Contact manufacturer for details. |
Post centres | 3.5–5.5 m. Guidance for specification option: Variations within the structural design achievable to avoid doorways, access routes or underground services. Contact manufacturer for details. |
Sustainability data
Country of product manufacture | United Kingdom |
Material | Steel Polycarbonate |
Manufacturing plant location | |
Recyclability |
|
Expected Life | 25 year |
Case studies

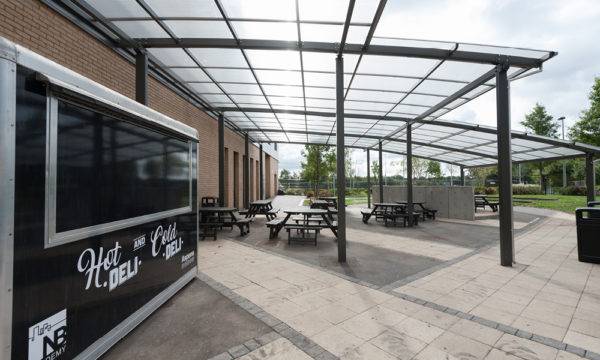

North Birmingham Academy
Sandringham High School, St Albans
The Compton School, North Finchley, London
