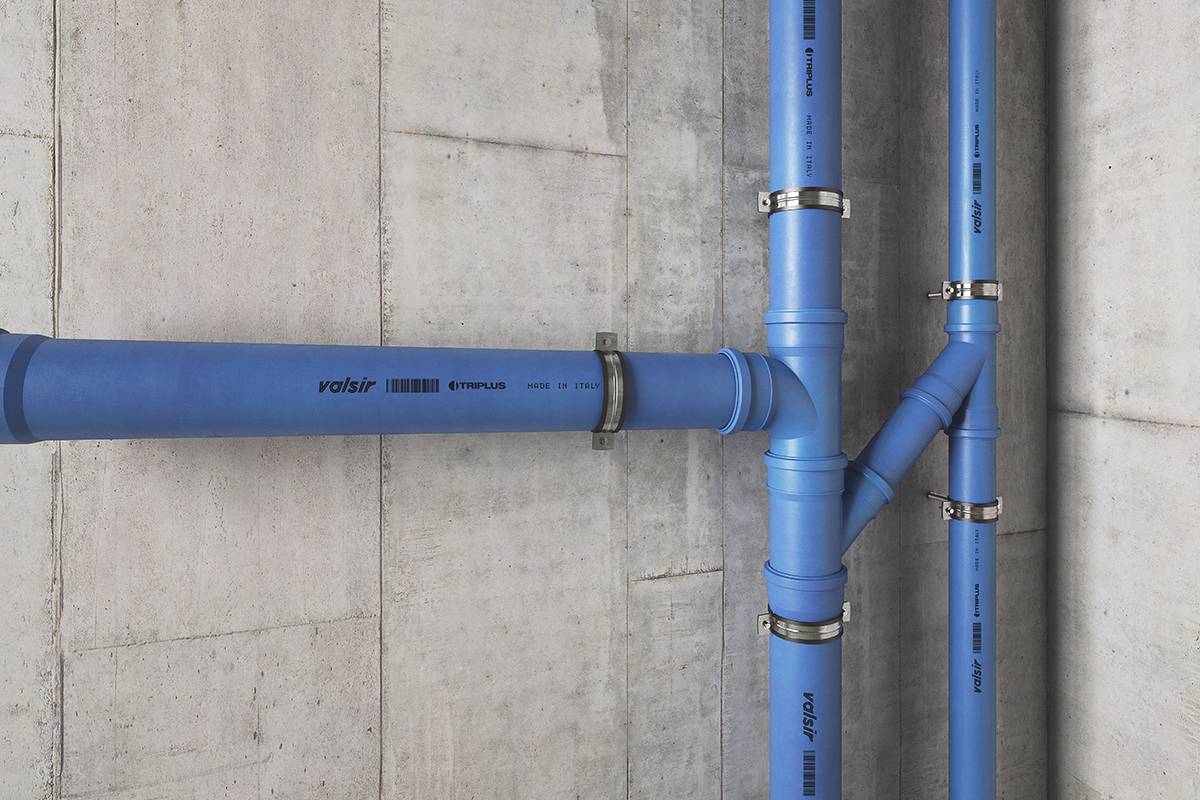

Triplus - Drainage System
Verified by manufacturer 24 days ago
EPD
Certificate type
Certificate of Compliance
Certificate type
Silent drainage system, 12 dB(A) at 4 L/s, triple-layer with rubber lining, pH 2–12, -25°C/+95°C, Ø32–250 mm. No lagging required for top acoustic comfort.
Application
- Residential and commercial buildings requiring silent drainage systems
- Hospitals, hotels, and schools where noise levels must be minimised
- Commercial and industrial plants with chemically aggressive wastewater (pH 2–12)
- Food processing and laboratory environments
- Replacement for lagged PVC pipes in acoustic-sensitive areas
- Any installation exposed to variable or extreme temperatures
- Embedded into the concrete
Description
Triplus is a drainage system with vulcanized rubber lining offering noise insulation. Certified 12 dB(A) at 4 L/s in compliance with EN 14366, tested by the Fraunhofer Institute, matching the performance of PVC pipes with 50 mm lagging, without external acoustic insulation.
Features and benefits:
- Pipe diameters: 32–250 mm.
- Impact and abrasion resistance, even at low temperature.
- Suitable for indoor and outdoor (protected from direct sunlight) installations.
- Triple-layer polypropylene (PP) construction with vulcanised rubber lining and mineral charge.
- Push-fit installation system with a wide range of fittings.
General information
Color | Blue |
Finish | Matt |
Material | Polypropylene |
Shape | Circle |
Length | 150 mm 250 mm 500 mm 1000 mm 1500 mm |
Width | 30 mm 40 mm 50 mm 70 mm 90 mm |
Height | Bespoke |
Warranty description | Ten year |
Uniclass | |
CAWS | R11/11 Plastics branch pipework R11/355 Polypropylene pipework |
SKU Code | VS065xxxx |
Specification data - Polypropylene (PP) above-ground wastewater pipes and fittings
Classification data | |
Standard | To BS EN 1451-1, application area code B. |
Jointing type | Push-fit socket. Sliding sleeve. Double socket fitting. |
Nominal sizes | DN 30. DN 40. DN 50. DN 70. DN 90. DN 100. DN 125. DN 150. DN 200. DN 250. |
Colour | Blue. |
Reaction to fire | To EN 13501-1, Class D-s2,d0. |
Chemical resistance | pH 2–12. |
Temperature resistance | -25°C to +95°C. |
AcousticRating | To EN 14366, 12 dB(A) at 4 L/s. Manufacturer guidanceLevels of sound pressure measured behind the installation wall for the Valsir Triplus® 110 x 3.4 mm pipe, measurements performed and formulated by the Fraunhofer Institute of Stuttgart (Germany). |
Sustainability data
Contains Red List materials | No |
Country of product manufacture | Italy |
Manufacturing plant location | |
Material | Polypropylene |
| Carbon dioxide equivalent | |
Carbon dioxide equivalent, as defined in BS EN 15804 Certified | |
Stage Normalised unit (kg CO₂ eq/kg) Declared unit (kg CO₂ eq/unit) Stage:A1–A3 ('Production stage') Normalised unit : 2.258 (kg CO₂ eq/kg) Declared unit : 56.44 | |
Recyclability | After the demolition and deconstruction phase, can be incinerated, sent to landfill or recycled |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 0 % |
Expected Life | 50 year |
Product certifications
Product certifications
Literature
Literature type
Triplus Brochure
Triplus Technical Data Sheet
