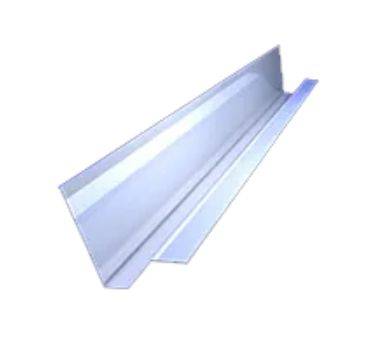

TrimFix Fascia - Brake-Pressed Aluminium System
Verified by manufacturer 2 months ago
TrimFix Fascia x2 bent
TrimFix Fascia x2 bent
Warringtonfire
Certificate type
Brake-pressed aluminium fascia for protecting timber or steel eaves structures from attack by the elements.
Application
Protection of timber or steel eaves structures. Verges and mono-ridges can be protected in the same way. TrimFix Fascia.
Description
Brake-pressed aluminium fascia systems.
Features and benefits:
- Economical and highly decorative way of protecting timber or steel eaves structures from attack by the elements.
- Low maintenance: TrimFix in a polyester powder-coated finish with up to 25 years coating warranty will only need the occasional wipe clean.
- Available in 0.9, 1.5, 2.0, 2.5 and 3.0 mm thicknesses to suit any requirement,
- Can be used with an exposed or hidden gutter.
- Verges and mono-ridges can be protected in the same way.
- Fascia and soffit combinations to satisfy architectural requirements.
- Discreet airflow ventilation.
- Appropriate gauge aluminium to ensure strength yet lightweight ease of handling.
- Matching soffit available, specified separately.
General information
Color | Silver Other Beige Black Blue |
Finish | Powder-coated Anodized Textured Metallic Other |
Material | Aluminium |
Shape | Other |
Length | 3000 mm Bespoke |
Width | Bespoke |
Height | Bespoke |
Warranty description | Other Manufacturer guidanceFinish warranty available and determined upon applicated based upon geographical location. |
Uniclass | Pr_65_50_35_02 Aluminium combined fascias, soffits and gutters |
CAWS | R10/13 Combined fascia, soffit and gutter R10/321 Combined fascia, soffit and gutter G20/99 Fascias/ barges/ soffits G20/950 Fascias/ barges/ soffits |
Specification data - Aluminium flashings
Material | Aluminium long strip. |
Item | Fascia. |
Form of delivery | Preformed item. |
Size | |
Thickness (minimum) | 0.9 mm.1.5 mm.2.0 mm.2.5 mm.3.0 mm. |
Width | Guidance for specification option: Consult manufacturer for options and insert requirements. Sizes vary and made to order. profile can vary for project specific application to architects intent. |
Fixing | Guidance for specification option: Consult manufacturer for options and insert requirements. Suitable for LBS2 joint types. |
Finish | Polyester powder-coated to BS 6496.Guidance for specification option: Standard; insert colour requirements below. Anodized.Guidance for specification option: Insert colour requirements below. Heritage textured.Guidance for specification option: Insert colour requirements below. Metallic.Guidance for specification option: Insert colour requirements below. Special.Guidance for specification option: Insert colour requirements below. |
Colour | RAL, colour.Guidance for specification option: Insert requirements (polyester powder coating only). BS 4800, colour.Guidance for specification option: Insert requirements (polyester powder coating only). Syntha Pulvin, colour.Guidance for specification option: Insert requirements (polyester powder coating only). Other.Guidance for specification option: Insert requirements (all finishes). |
Texture | As Finish. |
Profile | x2 bent. |
Sustainability data
Contains Red List materials | No |
Country of material origin | United Kingdom |
Country of product manufacture | United Kingdom |
Embodied carbonA1-A3 (production stage) as defined in BS EN 15804 | 16 kg CO₂ eq/kg |
Recyclability | Potential 95% + recyclability |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 95 % |
Third party certifications
Warringtonfire
UK Fire Test Results
Case studies
Weston College
Hemisphere
