TriGrip® Construction Rivets
Verified by manufacturer 2 months ago

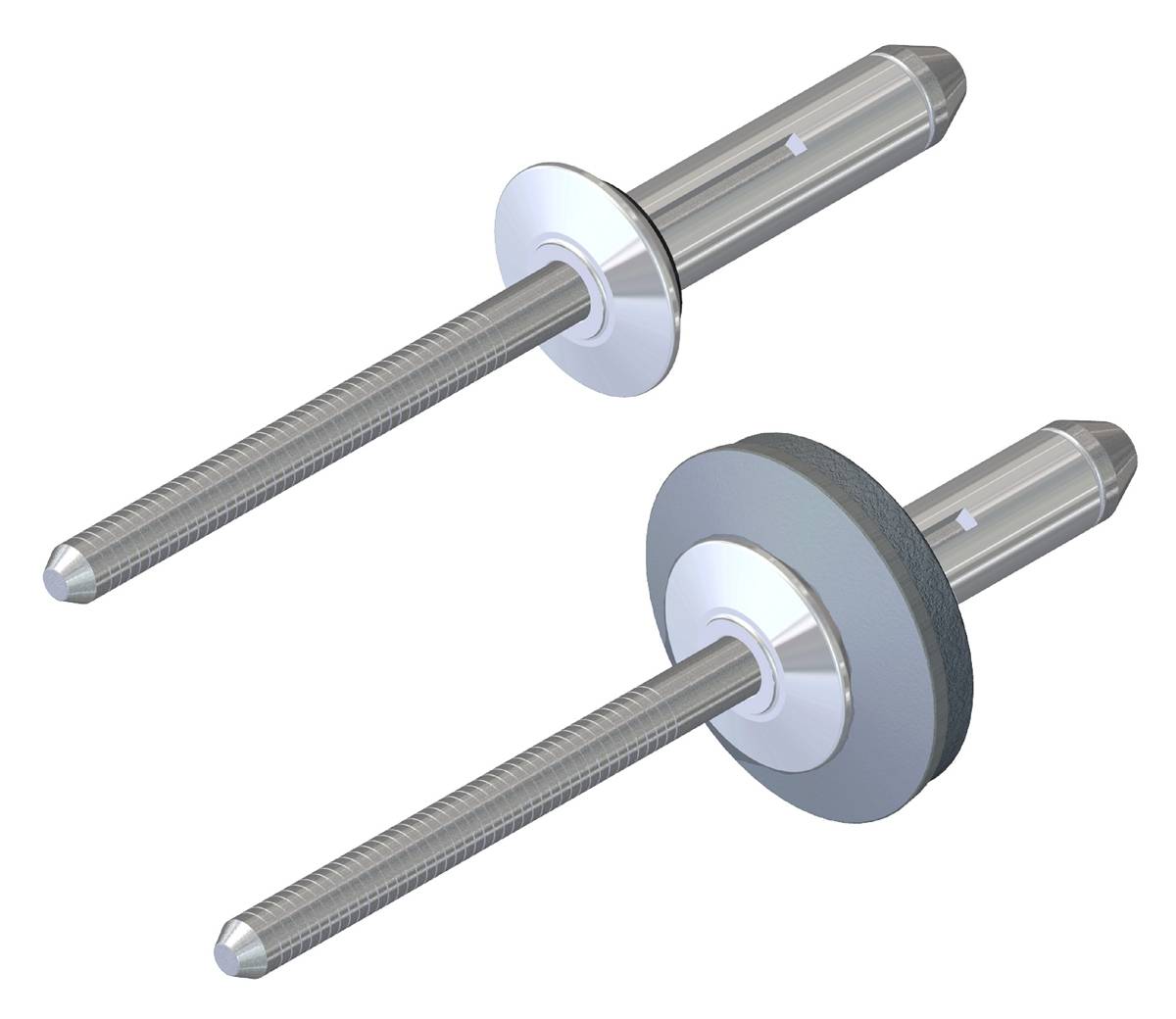

TriGrip® rivets, used for sheeting and cladding and available with aluminium bonded washer.
Application
If used without aluminium bonded washer:
- Sheeting and cladding.
- Flashings, gutter, fascias, soffits.
- Thin sheet applications.
If used with aluminium bonded washer:
- Repair of misplaced fastener penetrations.
- Jointing of fragile materials.
- Where additional load spreading and weatherproofing is required.
Fixfast products must be used with tools and accessories as recommended - consult manufacturer for details.
Description
TriGrip® rivets, used for sheeting and cladding and available with aluminium bonded washer.
Features and benefits:
- Provides a clamping force with no radial pressure or expansion.
- The slotted body spreads to form a three-pronged, bearing surface.
- Good material clamping across wide grip range.
- Neoprene washer provides a watertight seal.

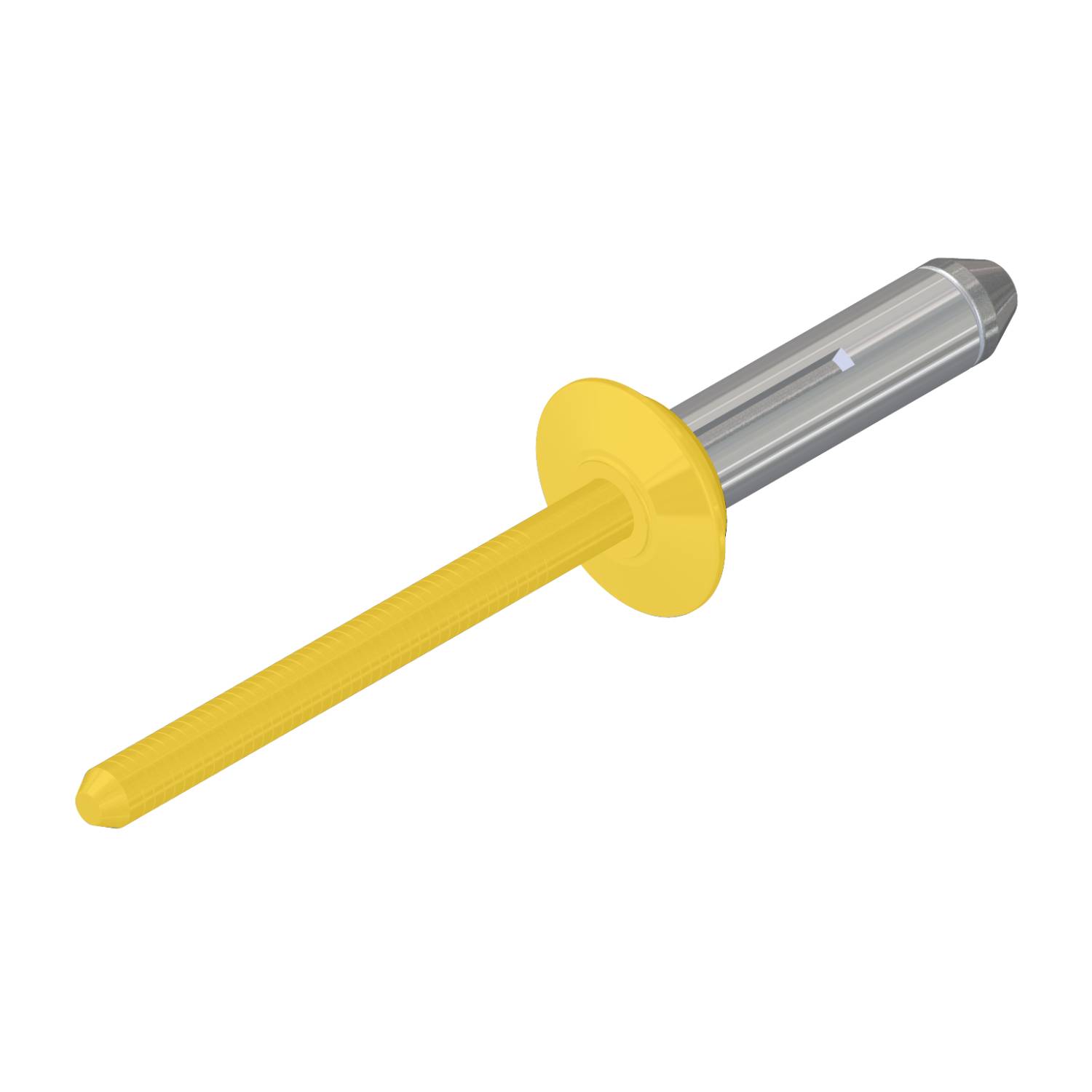

- Can be colour capped to match material.
- Manufactured in accordance with ISO 9001 and ISO 14001 Quality and Management Systems.
Drill size:
5.3 mm.
Head diameter:
11.5 mm.
General information
Color | Silver Other |
Finish | Mill Powder-coated |
Material | Aluminium |
Length | 18 mm 19 mm 23 mm 26 mm 29 mm |
Width | 5.2 mm |
Uniclass | |
CAWS | H31/10 Metal H31/110 Metal H31/120 Metal H32/110 Plastics H32/120 Plastics H43/10 Metal insulating sandwich panel H43/120 Metal insulating sandwich panel H67/110 Metal roof tiling H67/120 Metal roof tiling with counterbattens H67/130 Metal vertical tiling H67/3 Metal roof tiling H67/5 Metal roof tiling H67/8 Metal vertical tiling |
Product range |
Specification data - Blind (pop) rivets
Material | Aluminium. |
Form | TriGrip® Rivets, RTG-AA-5.2 x 18.Guidance for specification option: 18 x 5.2 mm (l x diameter). 0.5–4.7 mm maximum grip range. TriGrip® Rivets, RTG-AA-5.2 x 19.Guidance for specification option: 19 x 5.2 mm (l x diameter). 1.5–6.3 mm maximum grip range. TriGrip® Rivets, RTG-AA-5.2 x 23.Guidance for specification option: 23 x 5.2 mm (l x diameter). 4.7–9.5 mm maximum grip range. TriGrip® Rivets, RTG-AA-5.2 x 25.5.Guidance for specification option: 25.5 x 5.2 mm (l x diameter). 8–12.7 mm maximum grip range. TriGrip® Rivets, RTG-AA-5.2 x 29.Guidance for specification option: 29 x 5.2 mm (l x diameter). 11.6–15.8 mm maximum grip range. TriGrip® Rivets, RTG-AA-5.2 x 32.Guidance for specification option: 32 x 5.2 mm (l x diameter). 14.3–19 mm maximum grip range. TriGrip® Rivets with Aluminium Bonded Washer, RTG-AA-5.2 x 23 A19.Guidance for specification option: 23 x 5.2 mm (l x diameter). 0.6–5.4 mm maximum grip range. TriGrip® Rivets with Aluminium Bonded Washer, RTG-AA-5.2 x 26 A19.Guidance for specification option: 25.5 x 5.2 mm (l x diameter). 3.9–8.6 mm maximum grip range. TriGrip® Rivets with Aluminium Bonded Washer, RTG-AA-5.2 x 29 A19.Guidance for specification option: 29 x 5.2 mm (l x diameter). 7.5–11.5 mm maximum grip range. TriGrip® Rivets with Aluminium Bonded Washer, RTG-AA-5.2 x 32 A19.Guidance for specification option: 32 x 5.2 mm (l x diameter). 10.2–14.9 mm maximum grip range. |
Size | See 'Form' above. |
Colour | Guidance for specification option: Colour-matching available. Consult manufacturer and insert requirements. |
Sustainability data
Contains Red List materials | No |
Material | Aluminium |
