Triflow Solder Ring

Application

Drinking water, hot and cold drinking water, waste, natural and LPG gas, compressed air with and without oil content, fuel, oil, rainwater.

Description

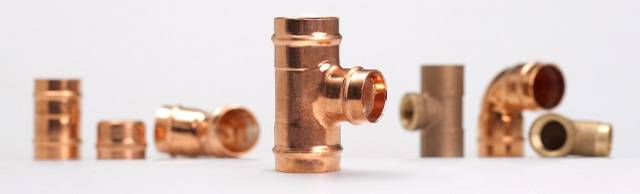

Triflow Solder Ring fittings are manufactured from copper and copper alloy with an integral lead-free solder ring that provides a mechanically strong, leak-proof joint without any waste or mess. An easy-to-use fitting, that is safe to use in a variety of water related applications.


Features and benefits:

  • Integrated lead-free solder.
  • Corrosion resistant.
  • Anti-microbial material.

General information

Material

Copper

Copper, gunmetal, DZR body, lead-free solder ring compliant to EN 29453 and ISO 9453 (S-Sn99Cu1 tin-copper).

Shape

Dependent on type.

-

Size

15–54 mm

WarrantyDescription

25 years

From the date of first purchase.

Uniclass 2015

Pr_65_52_63_18 Copper pipeline fittingsPrimary

CAWS

S90/110 Mains cold water supply

S90/120 Storage cold water supply

S90/110 Mains cold water supply

S90/130 Instantaneous hot water supply

S90/120 Storage cold water supply

S90/140 Direct hot water storage supply

S90/130 Instantaneous hot water supply

S90/150 Indirect hot water storage supply

S90/140 Direct hot water storage supply

S90/150 Indirect hot water storage supply

S90/160 Rainwater/ greywater recycling system

Specification data - Copper pipeline fittings Enhanced data

Standards

-

Capillary

To EN 29453, ISO 9453, EN 1254-1; EN 1057.

Product Reference

Triflow Solder Ring - Air Vent Copper

Available 15 mm.

Triflow Solder Ring - Bent Cylinder Union (Coned)

Available 22 x 1” to 28 x 1.1/4”.

Triflow Solder Ring - Bent Tap Connector

Available 15 x 1/2” to 22 x 3/4”.

Triflow Solder Ring - Elbow

Available 8–67 mm

Triflow Solder Ring - Female Adaptor Parallel Thread

Available 15 x 1/2” to 22 x 3/4”.

Show more

Operating parameters

6–16 bar.

  • 16 bar at operating temperatures of up to 30°C.
  • 10 bar at operating temperatures of up to 65°C.
  • 7 bar at operating temperatures of up to 95°C.
  • 6 bar at operating temperatures of up to 110°C.


Third party certifications

  • WRAS kitemark
