Trianco Activair R290 Commercial Air Source Heat Pump - Air Source Heat Pump
Verified by manufacturer today
High temperature air source heat pump with R290 refrigerant, smart app control, and up to 75°C flow temperature for commercial heating applications.
Application
- Designed for commercial heating applications.
- It is suitable for use in a wide variety of commercial settings and can be cascaded up to 16 units for larger heating demands.
Description
The Trianco Activair High Temperature Air Source Heat Pump uses R290 refrigerant and is designed to provide efficient heating solutions with high flow temperatures up to 75°C.
Features and benefits:
- High efficiency with outputs suitable for commercial heating applications.
- Compact and unobtrusive design with plastic weatherproof casing.
- Low energy costs and high savings on CO2 emissions.
- Smart app controls with remote monitoring via built-in 4G Data Transfer Unit.
- Optional mounting plates for floor or wall installation.
- Anti-frost protection and minimal maintenance required.
- Can cascade up to 16 units for larger applications.
- Up to five year warranty when registered.
General information
Color | Black |
Material | Plastic Metal |
Shape | Rectangle |
Length | 1195 mm |
Width | 980 mm |
Height | 1900 mm |
Warranty description | Three year |
Uniclass | |
CAWS | T90/505 Air-to-water heat pumps |
Specification data - Air-to-water heat pumps
Classification data | |
Standards | |
Test requirements | To BS EN 14511-1, BS EN 14511-2, BS EN 14511-3 and BS EN 14511-4. |
Electrical safety | To BS EN 14511-102013. |
Heat pump type | Monobloc. |
Mode | Heating. Cooling. |
Coefficient of performance (minimum) | Manufacturer guidanceDependant on size. Consult manufacturer and insert requirements. |
Energy efficiency | Manufacturer guidanceDependant on size. Consult manufacturer and insert requirements. |
Integrated service fittings | Heating circulating pump. |
Output | |
Heating | 50 kW. |
Cooling | 50 kW. |
Fan | |
Fan drive | Direct. |
Configuration | Horizontal. |
Electrical supply type | Three-phase. |
Compressor | |
Type | Scroll. |
Drive | Inverter-driven. |
Accessories | Manufacturer guidanceConsult manufacturer and insert requirements or omit. |
Refrigerant | R290. |

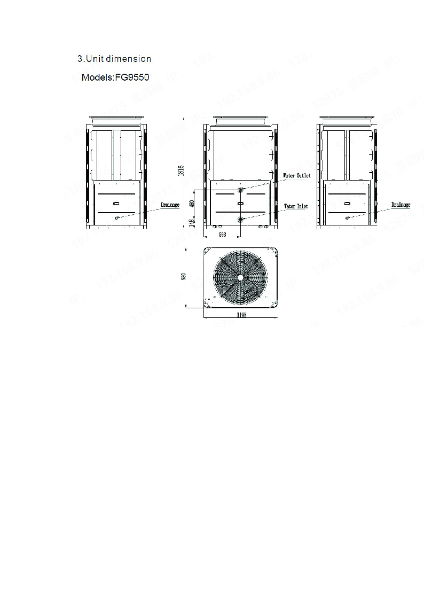

Dimensions | 1900 x 1195 x 980 mm. Manufacturer guidanceHeight x depth x width. |
Weight | 490 kg. |
Sustainability data
Material | Plastic Metal |
Literature

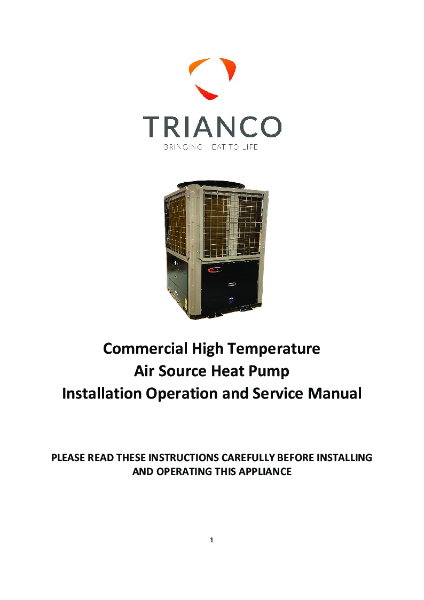

Activair High Temp Heat Pump Brochure - compressed
