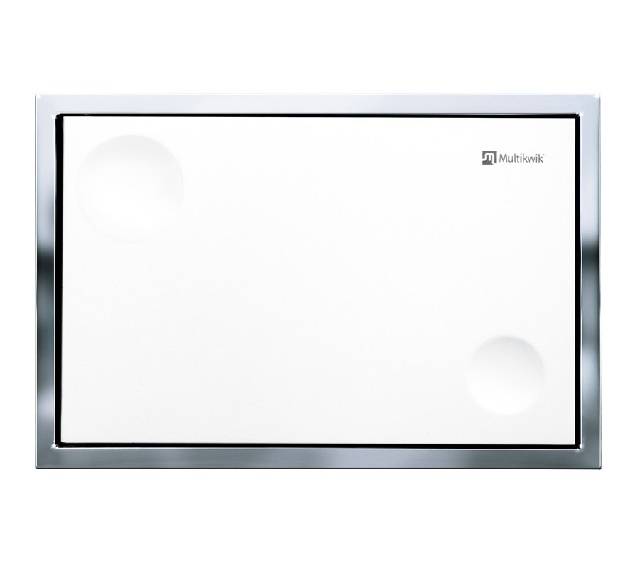

TRF0400AT Multikwik Flush Plate - Atlas Recessed (White Finish)
Description

Recessed mounted dual flush plate with a white finish and atlas profile. For use with concealed cistern/ WC sanitary frame.

Features:

  • Dual flush buttons - cable operated.
  • Plastic buttons and face plate.
  • Mounted onto an exposed, polished stainless steel support frame of 6 mm wide and 1 mm thick.
  • For use with concealed cistern TRC1120 and TRV0001, and WC sanitary frames (TRM1120, TRM1121 or with concealed cistern fitted with MKSP0048 Ineo Flush Valve).
  • Multikwik logo mark on face plate.

Installation:

Must be fitted to a cistern or cistern frame with a minimum of 35 mm substrate between the face of the finished wall covering and front edge of cistern, or installed within 2 x 12.5 mm plasterboard.

General information
Features

Dual flush buttons - cable operated

Plastic buttons and face plate

Mounted onto an exposed, polished stainless steel support frame of 6 mm wide and 1 mm thick

For use with concealed cistern TRC1120 and TRV0001, and WC sanitary frames (TRM1120, TRM1121 or with concealed cistern fitted with MKSP0048 Ineo Flush Valve)

Multikwik logo mark on face plate

Finish

White

Material

Frame: Polished stainless steel

Flush plate: Acrylonitrile butadiene styrene (ABS) plastic

Uniclass 2015
Pr_40_20_93_87 WC cistern fittingsPrimary
CAWS

N13/10 WC pans and flushing arrangements

N13/300 WCs and cisterns

Specification data - WC cistern fittings
Product Reference

TRF0400AT Multikwik Flush Plate - Atlas Recessed (White Finish)

Standard product features

Size (h x w x d):

122 x 182 x 1.5 mm.

Material:

  • Frame: Polished stainless steel.
  • Flush plate: Acrylonitrile butadiene styrene (ABS) plastic.

Finish:

White.
