Description

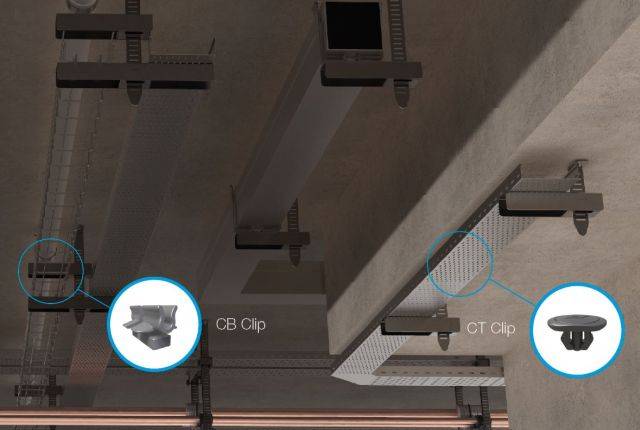

Clips developed for the quick fastening of cable basket/ tray to Gripple Universal Brackets, Fast Trak and G Brackets.

Features and benefits:

  • Prevent uplift and slide of cable basket/ tray.
  • Two sizes available.
  • Easy tool-free, quarter turn installation.
  • push fit fixing saves time on the install when compared to traditional methods.

General information
Material

Acetal copolymer (POM C, ERCACETAL C)

Size

CT Clip: 22 x 19 x 13 mm (l x w x h)

CT Clip: 30 x 17 mm (l x h)

Uniclass 2015 Channel supports (Pr_80_77_27_15)
Specification data
Product Reference

CB Clip, 4/2 mm

Clip for 4 mm thick cable basket wire and 2 mm thick bracket, grey.

CB Clip, 4/3 mm

Clip for 4 mm thick cable basket wire and 3 mm thick G300 or G400 brackets, blue.

CB Clip, 5/2 mm

Clip for 5 mm thick cable basket wire and 2 mm thick bracket, black.

CB Clip, 5/3 mm

Clip for 5 mm thick cable basket wire and 3 mm thick G300 or G400 brackets, navy.

CT Clip, 2 mm

Clip for 2 mm thick cable tray, grey.

CT Clip, 3 mm

Clip for 3 mm thick cable tray, black.

Standard product features

Material:

Acetal copolymer (POM C, ERCACETAL C).

Size:

  • CT Clip: 22 x 19 x 13 mm (l x w x h).
  • CT Clip: 30 x 17 mm (l x h).
