Traffidor Clear - Fully Glazed Steel Door System (Stainless Steel)

Verified by manufacturer 5 months ago

Tekta UK Third party certifications:
  • Alcumus SafeContractor

    Alcumus SafeContractor

    Certificate type

  • ISO 9001 Quality Management

    Certificate type

  • ISO 14001 Environmental Management Systems

    Certificate type

  • Constructionline Gold

    Constructionline Gold

    Certificate type

  • CHAS

    CHAS

    Certificate type

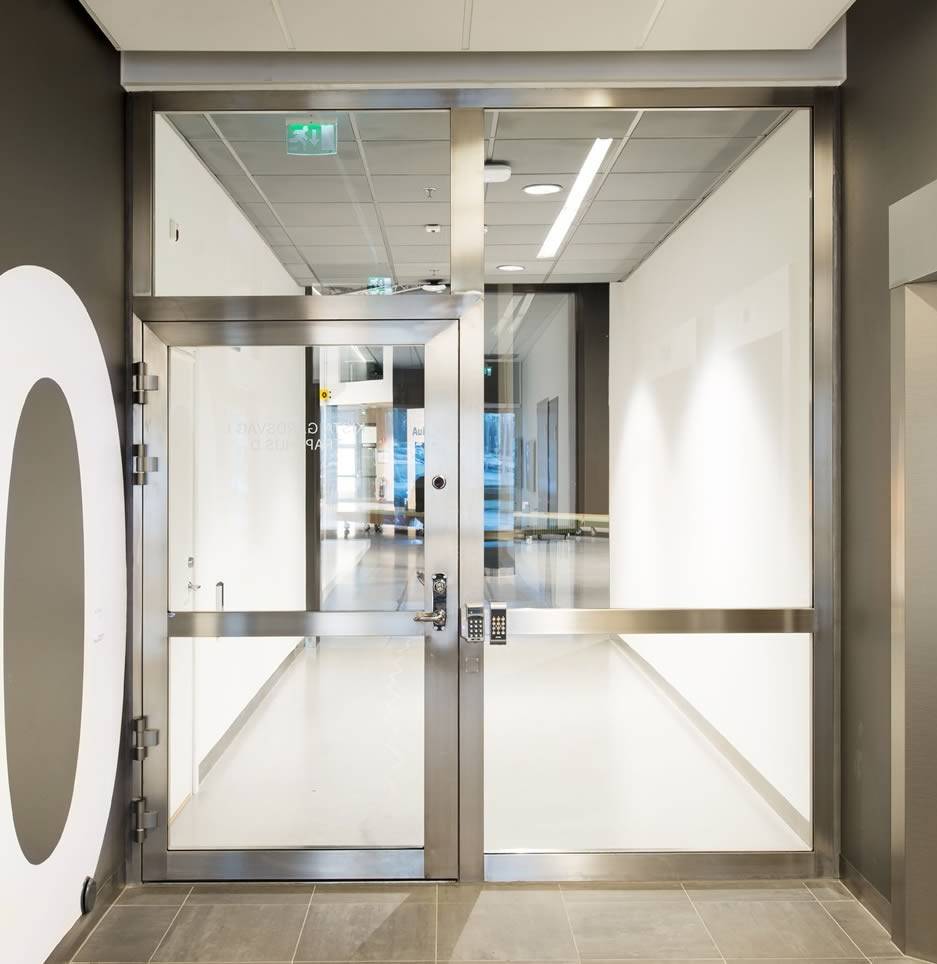

The Traffidor Clear door is designed for use where a fully glazed door is required.

Jump to:
+ (44) 0330 7000 333 Website

Application

  • Food and Hygiene facilities.
  • Cleanrooms.
  • Demanding environments.
  • Airtight zones.
  • Firewalls.

Description

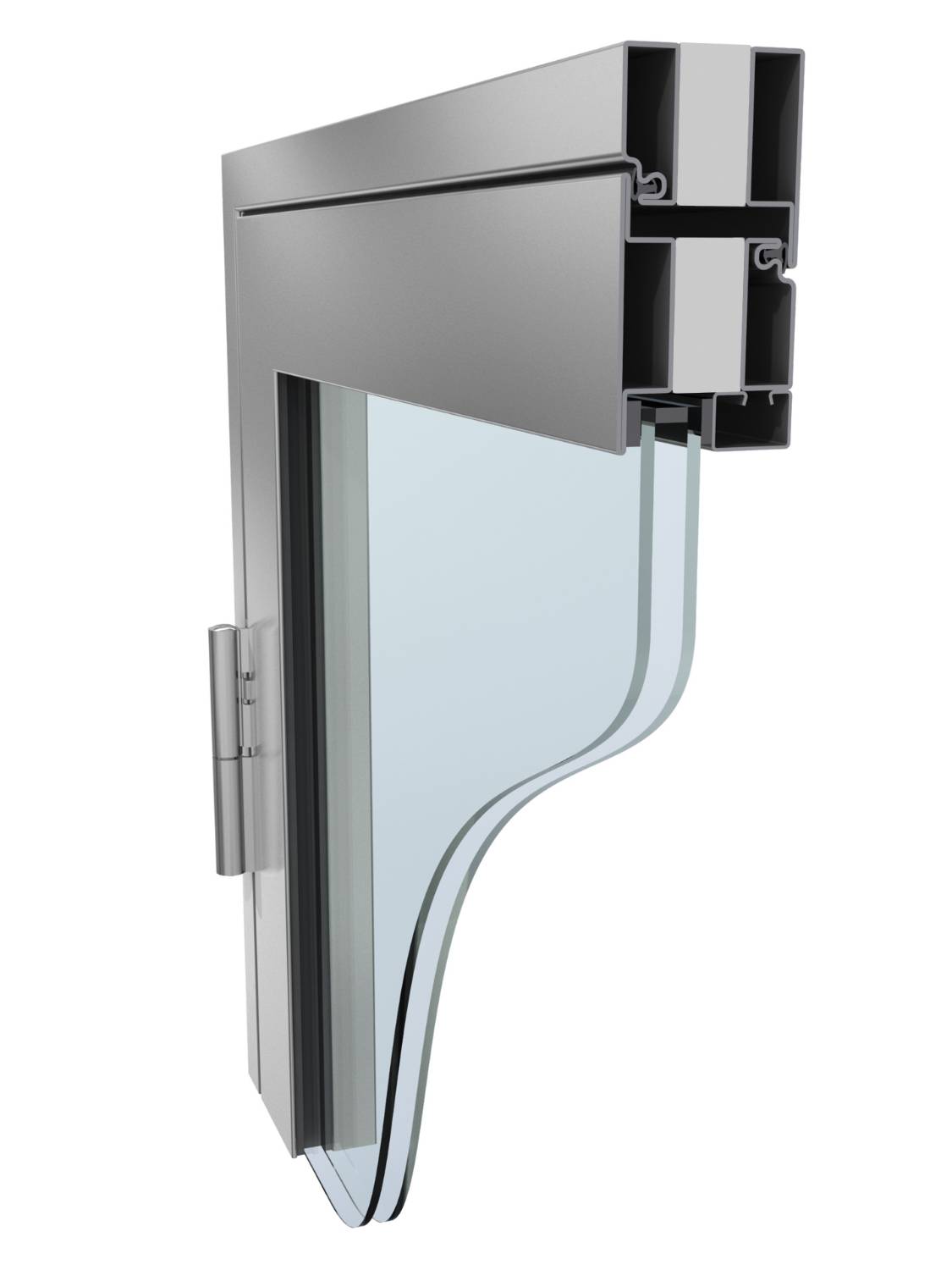

Constructed from a profiled steel frame and inlayed with glazing panels, the door can be manufactured from grade 1.4301 (304) or 1.4401 (316) stainless steel, providing a solid and durable construction that requires minimal maintenance.


The door is available with a brushed stainless steel finish, providing an attractive appearance that is easy to clean for hygienic environments. Fixed side and overpanels can be constructed to match the door where a fully glazed screen is required. It has a wide range of ironmongery and sizes available to suit all applications, offering flexibility in design and functionality.


The door has been tested for durability up to a million cycles and offers excellent insulation values. When required, the Traffidor Clear offers excellent fire protection. The door is fire-rated for internal and external doorways and certified according to EN-16034-1.Security ratings up to RC4 class are also available.


It is available with certification including airtightness, insulation, up to 120-minute fire rating, acoustic ratings, security ratings smoke sealing, and water

tightness.



Features and benefits:

  • Advanced fully glazed door.
  • Up to 120 minute fire rating available.
  • Wide range of ironmongery.
  • Highly durable design.

General information

Color

Silver

Finish

Brushed

Smooth

Material

Stainless steel

Shape

Rectangle

Square

Length

Bespoke

Width

Bespoke

Height

Bespoke

Warranty description

One year

Uniclass

Pr_30_59_24_85 Stainless steel doorsetsPrimary

CAWS

L20/55 Doorsets

L20/480 Doorsets

Specification data - Stainless steel doorsets

Standard

To EN 16034-1.

Doorset size

-

Manufacturer guidance

Varying profile depths and widths available.

Performance

-

Fire resistance

-

Integrity

EI30.

EI60.

EI120.

Guidance for specification option:

Optional.

NFR.

Insulation

As Integrity.

Smoke leakage

Sa and S200 Smoke seal.

Not applicable.

Acoustic performance

Up to 45 dB.

Thermal

-

Manufacturer guidance

U-value: Up to 0.9 w/m²K (dependent on glazing selection).


Frame

-

Material

Steel.

Finish

-

Coating

Powder coated.

Colour

-

Manufacturer guidance

Powder-coated finish in any standard RAL colour. Insert requirements.

Door leaf

-

Core

Full vision.

Material

Grade 1.4301 (304) Stainless steel.

Grade 1.4401 (316) Stainless steel.

Glazing

-

Type

-

Manufacturer guidance

Wide range of bespoke glazing, including 120 minute fire-rated and acoustic. Insert requirements.

Finish

-

Coating

Powder coated.

Texture

Brushed.

Smooth.

External colour

Silver.

Internal colour

As External.

Hardware

Level handles

Door closers

Kick plates.

Latch.

Guidance for specification option:

Fire doors to include a compulsory latch.

Manufacturer guidance

Wide range of ironmongery available including level handles, door closers, kickplates, panic hardware.

Supporting structure

Flexible.

Rigid.

Manufacturer guidance

Fire tested supporting structure.

Air permeability

Class 4.

SecurityRating

Up to RC4.

Watertightness

Up to class 9A (outward opening).

Wind resistance

Up to class C3.

Sustainability data

Material

Stainless steel

Third party certifications

Third party certifications

Alcumus SafeContractor

Alcumus SafeContractor

Safe Contractor Certificate

ISO 9001 Quality Management

ISO 9001 Quality Management

ISO 9001

ISO 14001 Environmental Management Systems

ISO 14001 Environmental Management Systems

ISO 14001

Constructionline Gold

Constructionline Gold

Constructionline Gold Certificate

CHAS

CHAS

CHAS Certificate

Literature

Traffidor Clear Datasheet

Traffidor Clear Datasheet
