Traditional Tilt & Turn Timber Windows – Tilt & Turn Over Tilt & Turn

Verified by manufacturer 3 months ago

TRC Windows Third party certifications:
  • CHAS

    CHAS

    Certificate type

  • Constructionline

    Constructionline

    Certificate type

  • Certificate of Compliance

    Certificate type

  • Health & Safety Accreditation

    Health & Safety Accreditation

    Certificate type

  • UL Certified

    UL Certified

    Certificate type

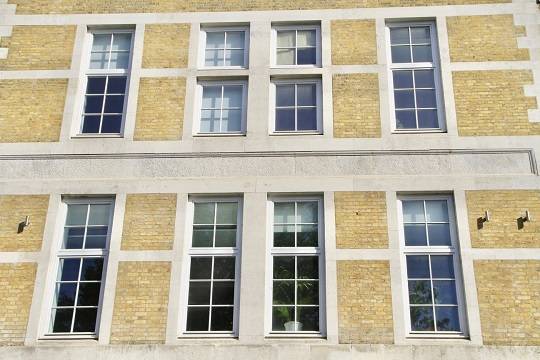

Tilt and turn wooden windows.

Jump to:
BOS
+44 (0) 1858 469225 Website

Application

Suitable for high-rise developments.

Description

Tilt and turn wooden windows.


Features and benefits:

  • These windows provide a lavish operable sash size of up to 3m in height, conveying grandeur and natural light in abundance.
  • Discreet internal beading aids both aesthetics and security, and they hold Secured By Design (SBD) approval.
  • They are inward opening and side hinged, with the option of tilt-only hinging.
  • Double and triple glazed options are available as standard, with a choice of glass types, frame timbers and colours.
  • They are thoroughly tested for thermal, acoustic and weather containment plus wind resistance.
  • FSC certified.


Guarantees:


TRC Contracts Ltd offers robust guarantees on all TRC window ranges we supply and install. The following general terms apply on all new windows:

  • Expected Lifespan: All our windows are designed with a 60-year service life guarantee.
  • Manufacturing and Material Defects: 10-year guarantee.
  • Finishes: The standard three-coat opaque finished joinery is guaranteed for 10 years, and the stain finishes are guaranteed against blistering or flaking for six years.
  • Seals: The seals on double-glazed units are guaranteed for 10 years (from the date of delivery).
  • Ironmongery: Functional failure is guaranteed on ironmongery for two years.


General information

Color

Black

Brown

Grey

White

Manufacturer guidance

Multiple options available. RAL classic range.

Finish

Painted

Guidance for specification option:

Applied factory finish using water based micro-porous satin paint (three coats).

Material

Timber

Shape

Rectangle

Length

Bespoke

Width

Bespoke

Height

Bespoke

Warranty description

Ten year

Uniclass

Pr_30_59_98_96 Wood window unitsPrimary

CAWS

L10/10 Wood windows

L10/210 Wood windows

Specification data - Wood window units

Standard

To BS EN 6375-1, EN ISO 10077 and ISO 9001.

Third-party certification

FSC Certified and Secured By Design (SBD) Certified.

Dimensions and configurations

As drawing.

Guidance for specification option:

Insert reference.

As schedule.

Guidance for specification option:

Insert reference.

Product performance

-

Weather performance

-

UK exposure category

To BS 6375-1, 2000 Pa.

Air permeability

To BS 6375-1, Class 4.

Watertightness

To BS 6375-1, Class 9A.

Resistance to wind load

To BS 6375-1, Class A5.

Durability

-

Operation and strength characteristics

To BS 6375-2.

Safety

-

Security level

To PAS 24.

Environmental

-

Background ventilation

Available.

Acoustic performance rating

To BS EN ISO 717-1, 51 dB.

Thermal

-

Whole window U-value

0.8 W/m2K.

Guidance for specification option:

Triple glazed.

1.2 W/m2K.

Guidance for specification option:

Double glazed.

British Fenestration Rating Council Window Energy Rating

A.

Frame

-

Profile

78 x 78 mm.

Guidance for specification option:

As standard.

92 x 78 mm.

Guidance for specification option:

Enhanced thermal performance.

Wood species

Engineered Accoya.

Engineered European oak.

Engineered hardwood.

Engineered redwood.

Guidance for specification option:

As standard.

Appearance class

For opaque finishing: to BS EN 942, J10 for glazing beads, drip mouldings and the like. J40 or better for all other members.

Finish as delivered

Factory finished.

Preservative treatment to wood components

Preservative Treated.

Ventilator

Trickle ventilator, EA 1700, 4400, 5000 mm² .

Frame horns

Not required.

Glazing or infill

-

Requirements

Double glazed, 4/16/4 low-E.

Guidance for specification option:

As standard.

Triple glazed 4 low-E /18/4/18/4 low-E.

Hardware

SIEGENIA TITAN AF.

Operation

-

Electrical supply

Electric actuators.

Configurations

Direct glazed.

Direct glazed over direct glazed.

Direct glazed over tilt and turn.

Double direct glazed.

Double tilt and turn.

Show more

Frame profile moulding

25 mm.

Sash

78 x 78 mm.

Sill projection

50 mm.

60 mm.

70 mm.

80 mm.

90 mm.

Show more

MoistureContent

12–19%.

Perimeter spacer bars

White.

Guidance for specification option:

As standard.

Black.

Silver.

Glazing beads

Internally beaded.

Sustainability data

Contains Red List materials

No

Country of material origin

Latvia

Country of product manufacture

Lithuania

Embodied carbon

A1-A3 (production stage) as defined in BS EN 15804

0.5 kg CO₂ eq/m

Recyclability

Yes

Manufacturer guidance

Recyclable parts of product timber, glass, gaskets.

Recycled content

As defined in clause 7.8 of BS EN ISO 14021

0 %
