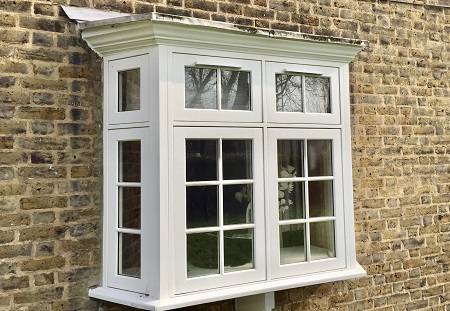

Traditional Flush Casement Timber Windows - Double Side Hung Floating Mullion

Name: Traditional Flush Casement Timber Windows - Double Side Hung Floating Mullion
Brand: TRC Windows
SKU: xuNFacP4cWMEW2F2gqukTR

Verified by manufacturer 1 month ago

TRC Windows

Third party certifications:

CHAS
Certificate type
Constructionline
Certificate type
Certificate of Compliance
Certificate type
Health & Safety Accreditation
Certificate type

Traditional flush casement timber windows.

Jump to:

BOS

+44 (0) 1858 469225 Website

Application

Suitable for high-rise developments.

Description

Traditional flush casement timber windows with double side hung floating mullion layout.

Features and benefits:

With smooth lines, these traditional flush timber casement windows sit beautifully in the frame, and are Secured By Design (SBD) certified.
These flush casement timber windows open outwards and can be top or side hung.
They can also be supplied fully reversible to enable external glass to be cleaned safely from inside the building: perfect for high-rise developments.
Available in four glass options, mounted in hardwood of softwood frames.
Double and triple glazing is available.
With double gasketing, weather containment is assured; and beading is mounted internally to enhance security.
FSC certified.

Guarantees:

TRC Contracts Ltd offers robust guarantees on all TRC window ranges we supply and install. The following general terms apply on all new windows:

Expected Lifespan: All our windows are designed with a 60-year service life guarantee.
Manufacturing and Material Defects: 10-year guarantee.
Finishes: The standard three-coat opaque finished joinery is guaranteed for 10 years, and the stain finishes are guaranteed against blistering or flaking for six years.
Seals: The seals on double-glazed units are guaranteed for 10 years (from the date of delivery).
Ironmongery: Functional failure is guaranteed on ironmongery for two years.

General information

Color	Clear Cream Green White Other Manufacturer guidance Multiple options available. RAL classic range.
Finish	Painted Guidance for specification option: Applied factory finish using water based micro-porous satin paint (three coats).
Material	Timber
Shape	Rectangle Guidance for specification option: Special shapes available. Triangle Circle
Length	Bespoke Guidance for specification option: Project specific.
Width	Bespoke Guidance for specification option: Project specific.
Height	Bespoke Guidance for specification option: Project specific.
Warranty description	Ten year

Uniclass	Pr_30_59_98_96 Wood window unitsPrimary
CAWS	L10/10 Wood windows L10/210 Wood windows

Specification data - Wood window units

Standard	To BS EN 6375-1, EN ISO 10077 and ISO 9001.
Third-party certification	FSC Certified and Secured By Design (SBD) Certified.
Dimensions and configurations	As drawing. Guidance for specification option: Insert reference. As schedule. Guidance for specification option: Insert reference.
Product performance	-
Weather performance	-
UK exposure category	To BS 6375-1, 2000 Pa.
Air permeability	To BS 6375-1, Class 4.
Watertightness	To BS 6375-1, Class 7A.
Resistance to wind load	To BS 6375-1, Class A5.
Durability	-
Operation and strength characteristics	To BS 6375-2.
Safety	-
Security level	To PAS 24.
Environmental	-
Background ventilation	Available.
Acoustic performance rating	To BS EN ISO 717-1, 45 dB.
Thermal	-
Whole window U-value	1.2 W/m2K. Guidance for specification option: Double glazed. 0.8 W/m2K. Guidance for specification option: Triple glazed.
Frame	-
Profile	Ovolo 22 mm. Ovolo 18 mm. Lambs tongue 22 mm. Lambs tongue 18 mm.
Wood species	Engineered Accoya. Engineered European oak. Engineered hardwood. Engineered redwood . Guidance for specification option: Standard.
Finish as delivered	Dual finish. Guidance for specification option: Insert requirement. RAL classic range. Guidance for specification option: Insert requirement. Stain. Guidance for specification option: Insert requirement.
Preservative treatment to wood components	TEKNOS preservative system.
Ventilator	Through sash head trickle ventilator, EA 1700, 4400, 5000 mm².
Glazing or infill	-
Requirements	Double glazed, 4/16/4 low-E. Guidance for specification option: Standard. Special order. Guidance for specification option: Insert requirements.
Hardware	Nico Manufacturing Ltd.
Operation	-
Electrical supply	Electric actuators.

Configuration	Direct glazed. Direct glazed over direct glazed. Double direct glazed. Double side-hung. Double side-hung floating mullion. Side-hung next to direct glazed. Top-hung. Top-hung over direct glazed. Top-hung over side-hung. Show more
Frame profile moulding	Ovolo 18 mm. Ovolo 22 mm. Lambs tongue 18 mm. Lambs tongue 22 mm.
Sash	46 x 68 mm.
Sill projection	50 mm. 60 mm. 70 mm. 80 mm. 90 mm. 100 mm. 110 mm. Show more
Perimeter spacer bars	White. Guidance for specification option: As standard. Silver. Black.
MoistureContent	12-19%.
Glazing beads	Internally beaded.

Sustainability data

Contains Red List materials	No
Country of material origin	Latvia
Country of product manufacture	Lithuania
Embodied carbon A1-A3 (production stage) as defined in BS EN 15804	0.5 kg CO₂ eq/kg Self declared
Recyclability	Recyclable parts of product timber, glass, gaskets. Manufacturer guidance Recyclable parts of product timber, glass, gaskets.
Recycled content As defined in clause 7.8 of BS EN ISO 14021	0 %
