Traditional Flush Casement Timber Windows - Direct Glazed
Traditional Flush Casement Timber Windows - Direct Glazed
Application
External windows.
Description
Traditional Flush Casement Timber Windows - Direct Glazed
With smooth lines, these traditional flush timber casement windows sit beautifully in the frame, and are Secured By Design (SBD) certified.
These flush casement timber windows open outwards and can be top or side hung. They can also be supplied fully reversible to enable external glass to be cleaned safely from inside the building: perfect for high-rise developments.
Available in four glass options, mounted in hardwood of softwood frames. Double and triple glazing is available. With double gasketing, weather containment is assured; and beading is mounted internally to enhance security.
General information
Color | Many options available. RAL classic range |
Finish | Three coat spray applied factory finish using water based micro-porous satin paint |
Material | Timber. |
Shape | Rectangle |
Size | 630 x 1050 mm |
WarrantyDescription | 10 year |
Uniclass 2015 |

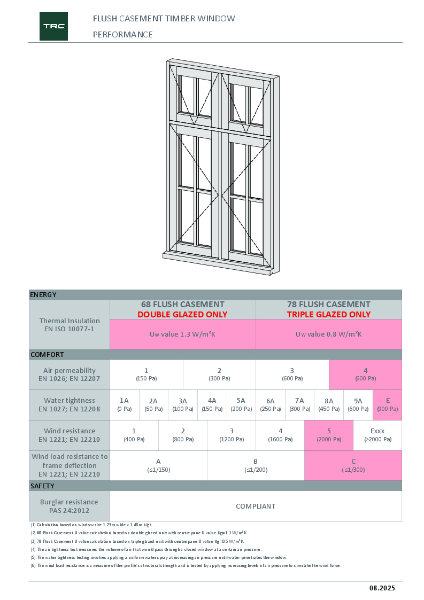

Specification data - Wood window units Enhanced data
Standard | To BS EN 6375-1: 2009.To EN ISO 10077-1: 2006.To ISO 9001. |
Third-party certification | Secured By Design (SBD) Certified.FSC Certified. |
Dimensions and configurations | As drawing.Insert reference. As schedule.Insert reference. |
Product performance | - |
Weather performance | - |
UK exposure category | To BS 6375-1, 2000 Pa. |
Air permeability | To BS 6375-1, Class 4. |
Watertightness | To BS 6375-1, Class 7A. |
Resistance to wind load | To BS 6375-1, Class A5. |
Durability | - |
Operation and strength characteristics | To BS 6375-2 |
Safety | - |
Security level | To PAS 24. |
Environmental | - |
Background ventilation | Available. |
Acoustic performance rating | To BS EN ISO 717-1, 45 dB. |
Thermal | - |
Whole window U-value | 1.2 W/m2K.Double glazed 0.8 W/m2K.Triple glazed |
Frame | - |
Profile | Ovolo 22 mm.Ovolo 18 mm.Lambs tongue 22 mm.Lambs tongue 18 mm. |
Wood species | Engineered Accoya.Engineered European oak.Engineered hardwood.Engineered redwood.As standard |
Finish as delivered | Dual finish.Insert requirement. RAL classic range.Insert requirement. Satin.Insert requirement. |
Preservative treatment to wood components | Preservative treated. |
Ventilator | Through sash head trickle ventilator, EA 1700, 4400, 5000 mm² |
Frame horns | Not required. |
Glazing or infill | - |
Requirements | Double glazed, 4/16/4 low-E.As standard Triple glazed 4 low-E /18/4/18/4 low-E. |
Hardware | Nico Manufacturing Ltd |
Operation | - |
Electrical supply | Electric Actuators. |
Configurations | Direct glazed. Direct glazed over direct glazed. Double direct glazed. Double side-hung. Double side-hung floating mullion. |
Sash | 46 x 68 mm |
Sill projection | 50 mm. 60 mm. 70 mm. 80 mm. 90 mm. |
MoistureContent | 12–19% |
Glazing beads | Internally beaded |
Perimeter spacer bars | White. As standard Black. Silver. |
Environmental information
Country of material origin | Lithuania |
Country of product manufacture | Lithuania |
Recyclability | Recyclable parts of product Timber, Glass, Gaskets |
Digital objects
| Platform | Compatible | Version | Certified to |
|---|---|---|---|
 IFC | - | 1 | 2.1 |
 Revit | Revit 2017 | 1 | 2.1 |
