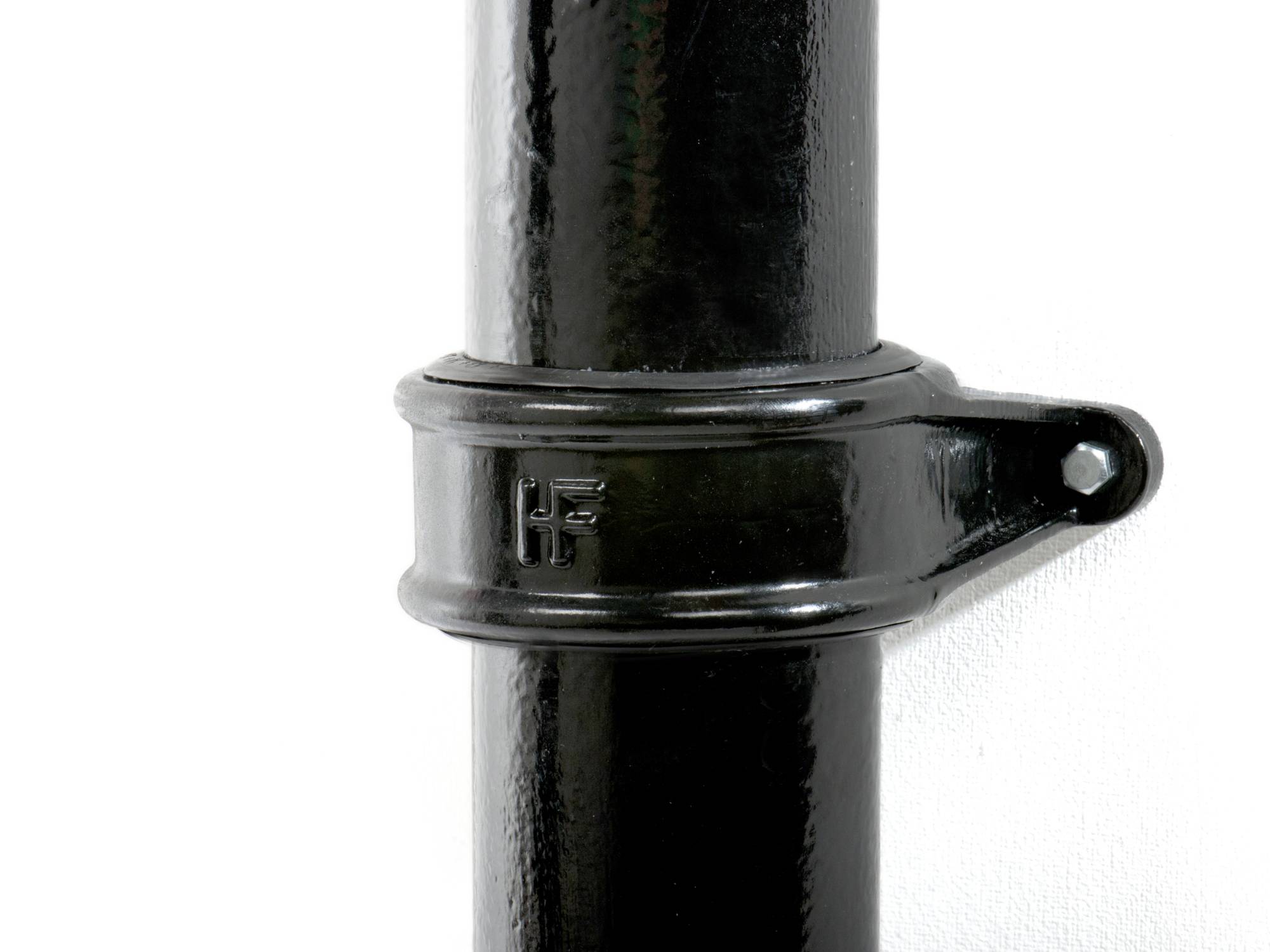

Traditional Express Cast Iron Push Fit Soil Pipe

Verified by manufacturer 19 hours ago

Hargreaves Foundry Drainage Ltd

Cast iron external soil and waste push fit pipe system to BS 416. Available in 50 mm and 100 mm diameters.

Jump to:
01422 330607 Website

Application

External soil system/ Heritage projects/ Listed buildings/ Residential and commercial

Description

Traditional Express (TX) is a push fit cast iron soil system with the appearance of traditional cast iron soil systems, but it requires no caulking or sealing.


Pipe diameters:

  • 50 mm
  • 100 mm


Pipe lengths:

  • 3000 mm
  • 1800 mm (100 mm diameter)
  • 1500 mm (50 mm diameter)


Fittings available:

  • Push fit sockets eared/ plain
  • Push fit slip sockets
  • Ductile iron couplings
  • Short radius bends
  • Long radius bends
  • Short radius access bends
  • Long radius access bends
  • Long tail bends
  • Single branches
  • Access branches
  • Double branches
  • Boss branches
  • Access pipes
  • Offsets
  • Boss pipes
  • Strap on bosses
  • Blank ends
  • Cowl
  • Pipe tapers
  • Adjustable brackets
  • Lubricant


Standard: BS 416.

General information

Color

Black

Grey

Other

Finish

Gloss

Material

Cast iron

Shape

Circle

Length

1500 mm

1800 mm

3000 mm

Width

50 mm

100 mm

Warranty description

Other

Uniclass

Pr_65_52_03_10 Cast iron above-ground discharge and ventilation pipesPrimary

CAWS

R11/335 Cast iron pipework – spigot and socket

SKU Code

TX4001

Specification data - Cast iron above-ground discharge and ventilation pipes

Standard

To BS 416.

Section

Round.

Form

With ears.
Without ears.

Sizes (nominal)

50 mm.
100 mm.

Finish and colour

-

Finish

Primer with rust inhibitors.
Two-pack polyurethane high gloss topcoat.

Colour

Primer (grey).
RAL 9005.

Guidance for specification option:

As standard.

RAL/ BS colour.

Guidance for specification option:

Insert requirements.

Integral accessories

Push fit sockets.

Guidance for specification option:

 Eared, plain or slip.

Ductile iron couplings.
Short radius bends.

Guidance for specification option:

45°, 67.5°, 87.5°.

Long radius bends.

Guidance for specification option:

87.5°, 22°.

Short radius bends with access door.

Guidance for specification option:

87.5°.

Long radius bends with access door.

Guidance for specification option:

87.5°.

Single branches.

Guidance for specification option:

45°, 67.5°, 87.5°.

Single radius curve branches.

Guidance for specification option:

87.5°.

Single radius curve branch with access door.

Guidance for specification option:

87.5°.

Double radius curve branch.

Guidance for specification option:

87.5°.

Single radius curve branches with 2" boss.

Guidance for specification option:

LH/ RH/ Back - 87.5°.

Access pipe round/ rectangular door.
Offsets.

Guidance for specification option:

75 mm, 130 mm, 300 mm.

Boss pipe 2" BSPT.
Boss pipes double 2" BSPT.

Guidance for specification option:

90°, opposed.

Strap on boss 2" BSPT.
Blank end.
Blank end drilled and tapped 2" BSPT.
Cowl.
Pipe taper - 100 x 50 mm.
Lubricant.

Sustainability data

Contains Red List materials

No

Material

Cast iron

Recyclability

100%

Expected Life

100 year

Literature

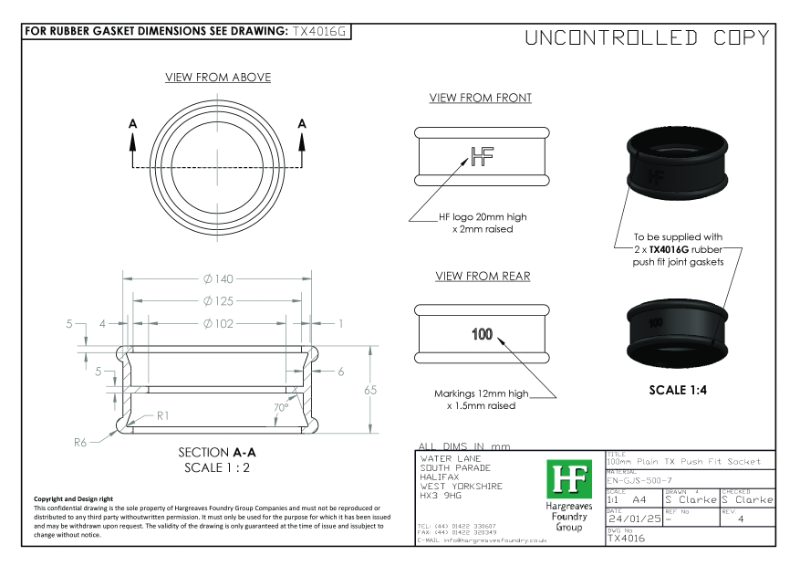

100mm TX Plain Socket Drawing

100mm TX Plain Socket Drawing

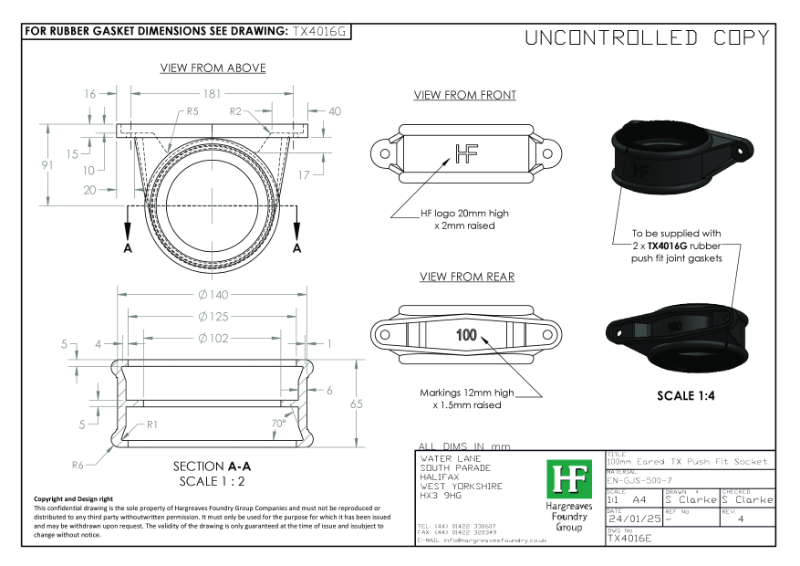

100mm TX Eared Socket Drawing

100mm TX Eared Socket Drawing

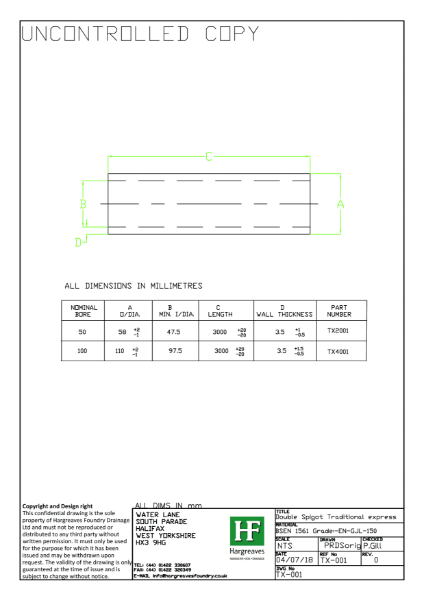

TX Pipe Drawing

TX Pipe Drawing

2023 / 2024 Trade Price List

2023 / 2024 Trade Price List

DATASHEET - Traditional Express (TX) System

DATASHEET - Traditional Express (TX) System

Case studies

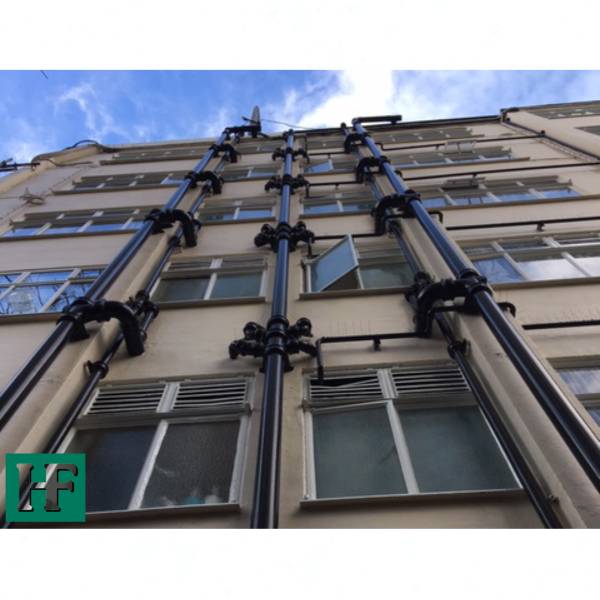

Romney Court, Shepherd's Bush - Tradition Express Soil
