Traditional 2500 Tilt & Turn - TT3 Opener/Opener
Verified by manufacturer over a year ago
BSI Kitemark
Certificate type

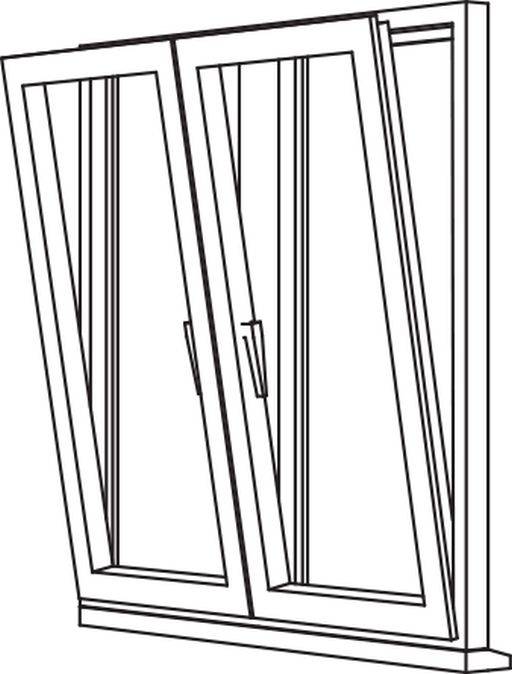

Opening light next to an opening light style window with a chamfered design frame.
Application
Suitable for commercial projects.
Description
PVC-U tilt & turn windows, available in range of styles in three standard finishes. Years of research and development has resulted in a technically advanced system ideal for commercial projects.
With two sash sizes (88 mm & 110 mm), two frame sizes (52 mm & 70 mm), and a slim (68 mm) intermediate (88 mm) or large (110 mm) transom/mullion option.
Features and benefits:
- The Traditional 2500 is a window and door system that offers the best in weather-proofing technology, energy efficiency and security.
- The system is available in 18 laminate colourways from stock providing the ultimate convenience regarding supply.
- Environmental product declaration: EPD-QKE-20150313-IBG1-EN.
General information
Shape | Rectangle |
Color | White Guidance for specification option: RAL 9016 (standard). Other Guidance for specification option: Laminated foil, Decoroc colour (RAL). |
Material | PVC-U |
Warranty description | Guidance for specification option: Manufacturer warranty. |
Size | Guidance for specification option: As drawing.
|
Uniclass | |
CAWS | L10/30 PVC-U windows L10/350 PVC-U windows |
Product range |
Specification data - Unplasticized polyvinyl chloride (PVC-U) window units
Standard | To BS 7412. |
Third-party certification | BSI Kitemark. |
Dimensions and configurations | Dual tilt and turn opening lights. |
Product performance | |
Fire performance | |
Fire egress | Required.Guidance for specification option: Emergency egress is an inherent characteristic of tilt & turn style hardware. |
Weather performance | |
UK exposure category | To BS 6375, Class A5 (2000 Pa). |
Air permeability | To BS 6375, Class 4 (600 Pa). |
Watertightness | To BS 6375, Class 8A (450 Pa). |
Resistance to wind load | To BS 6375, Class A5 (2000 Pa). |
Durability | |
Operation and strength characteristics | Operating forces Class 1, resistance to static torsion Class 3 and racking Class 3. |
Loadbearing capacity of safety devices | Maco Multi-Trend (tilt mode, 350 N).Maco Multi-Matic (tilt mode, 350 N).Segenia Favorit (tilt mode, 350 N).Roto Designo (tilt mode, 350 N). |
Safety | |
Security level | To PAS 24. |
Environmental | |
Background ventilation | Not required.Proprietary ventilation device. |
Acoustic performance rating | 32—43 dB. |
Thermal | |
Whole window U-value | Guidance for specification option:
|
British Fenestration Rating Council Window Energy Rating | A+ to C. |
Frame | |
Profile | To BS EN 12608.Guidance for specification option: Hollow PVC-U chamfered profile manufactured in accordance with BS EN 12608. |
Reinforcement | Galvanized steel. |
Colour and texture | White - RAL 9016.Guidance for specification option: As standard. Laminated foil.Guidance for specification option: Insert requirement. Decoroc colour (RAL).Guidance for specification option: Insert requirement. |
Ventilator | Not required.Proprietary ventilation device. |
Glazing or infill | |
Requirements | Single glazed.Double glazed.Triple glazed. |
Hardware | Guidance for specification option:
|
Operation | |
Type | Manual. |
Fixing features | Through frame fasteners.Fixing lug. |
Size (w x h) | As drawing. Guidance for specification option:
|
Outer frame size | 52 mm. 70 mm. |
Sash | Heavy duty. Standard. |
Transoms and mullions | 68 mm. 88 mm. 110 mm. |
Couplings | Not required. 3310 Slimline coupler. 3312 Slimline coupler. 3197 Slimline coupler. 3705 Reinforced coupler. Manufacturer guidanceWindow frame clouplings. |
Extensions | Not required. 2455 Head section. Guidance for specification option: Accommodates proprietary trickle ventilators. 3300 Add-on. Guidance for specification option: Allows additional clearance for hinges. 3301 Add-on. Guidance for specification option: Accommodates proprietary trickle ventilators. 3302 Add-on. Guidance for specification option: Frame build-up for conservatories. Manufacturer guidanceWindow frame extensions. |
Bay corner posts | Not required. 3196 Bay post. Guidance for specification option: Fixed 135° angle. 3313/3327 Slimline bay pole and adaptor. Guidance for specification option: Angles of 138–222°. 6916/ 3311 Bay pole and adaptor. Guidance for specification option: Angles of 90–270°. 6920 Bay post. Guidance for specification option: Fixed 90° square post. Manufacturer guidanceWindow fame bay corner posts. |
Architraves | Not required. 1044 D-mould. Guidance for specification option: 30 mm wide. 1087 Architrave. Guidance for specification option: 40 mm wide. 1178 Quadrant. Guidance for specification option: 19 mm. 3341 Add-on. Guidance for specification option: Architrave adaptor. |
Options | Not required. Georgian bars. Leaded lights. Manufacturer guidanceGlazing options. |
Thickness | 5—42 mm. Manufacturer guidanceGlazing thickness. |
Ironmongery | As section P21. |
Bead | Internal. |
Type | Chamfered. Guidance for specification option: As standard. Other. Manufacturer guidanceBeading type. |
Seal | Weatherseal. Guidance for specification option: High-performance integral multifunctional seal/ gasket |
ThermalTransmittance | 0.97. |
Hinges | Maco Multi-Trend. Maco Multi-Matic. Segenia Favorit. Roto Designo. Manufacturer guidanceHardware hinge options. |
BIM objects
NBS BIM Object Standard
This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.
Find out more about the NBS BIM Object Standard.
| Platform | Compatible | Version |
|---|---|---|
 Revit | Revit 2016 | 3 |
 IFC | - | 2 |
Third party certifications
BSI Kitemark
PAS24 certificate - Doors
Literature
09. Specification Guide - Traditional 2500 chamfered series windows & doors
