Description

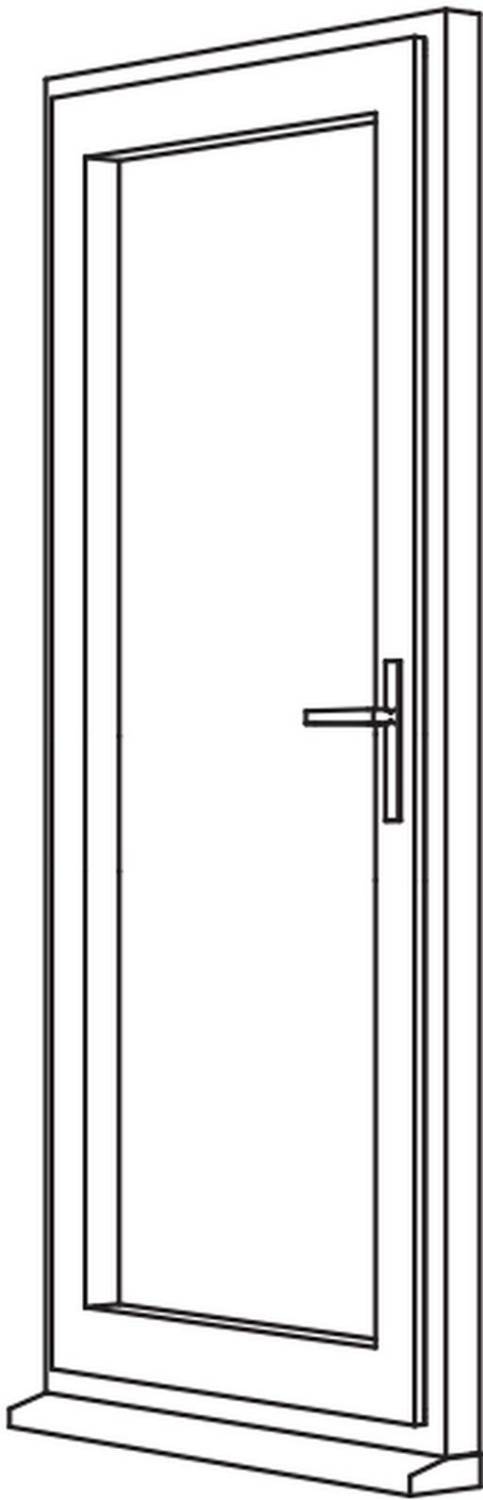

A range of PVC-U single residential doors, available in a range of styles, framing options in three standard finishes.

General information
Material

PVC-U

WarrantyDescription

Manufacturer warranty

Uniclass 2015
Pr_30_59_24_92 Unplasticized polyvinyl chloride (PVC-U) doorsetsPrimary
Specification data - Unplasticized polyvinyl chloride (PVC-U) doorsets
Product Reference

2500 Chamfered Doors – Residential

Doors -
Size (w x h)

___ x ___ mm

As drawing ___

Transoms and mullions

68 mm

88 mm

110 mm

Opening

Inward

Outward

Door frame -
Size

52 mm

70 mm

Type

Fanlight

Sidelight

Standard

Couplings

Not required

3197 Slimline coupler

3310 Slimline coupler

3312 Slimline coupler

3705 Reinforced coupler

6975 Reinforced coupler

Lightweight

Structural

Extensions

Not required

2455 Head section

Accommodates proprietary trickle ventilators.

3300 Add-on

Allows additional clearance for hinges.

3301 Add-on

Accommodates proprietary trickle ventilators.

3302 Add-on

Frame build-up for conservatories.

3336 Add-on

Provides clearance over existing plaster or tiling.

3340 Add-on

Reveal liner adaptor.

Projecting sill

Not required

3338 Projecting sill

150 mm.

3339 Projecting sill

180 mm.

3258 End cap

For 3338 Projecting sill.

3259 End cap

For 3339 Projecting sill.

Stub-sill

Not required

3337 Stub-sill

95 mm.

3257 End cap

For 3337 Stub-sill.

Low threshold

Not required

2976 AM3-70 open-in low threshold

2977 AM5EX-70 open-out low threshold

14647 low threshold

Weather bars

Not required

3303 Head drip

3306 Weather bar

Bay corner posts

Not required

3313/3327 Slimline bay pole and adaptor

Angles of 138–222°.

6916/ 3311 Bay pole and adaptor

Angles of 90–270°.

6920 90° Square corner post

3196 Bay post

Fixed 135° angle.

Standard

Structural

As drawing ___

Architraves

Not required

1044 D-mould

30 mm wide.

1087 Architrave

40 mm wide.

1178 Quadrant

19 mm.

3341 Add-on

Architrave adaptor.

3342 Architrave

30 mm wide.

3343 Architrave

35 mm wide.

Fabrication

Fully welded

Mechanically jointed

Colour

RAL 9016 Traffic White

Decoroc patented coating system. Colour RAL ___

Insert requirement.

Wood grain foil laminate. Finish ___

Insert requirement.

Glazing -
Type

Double glazed

Single glazed

Triple glazed

Glazing beads

As drawing ___

Options

Not required

Georgian bars

Leaded lights

Ventilation

Not required

Proprietary ventilation device ___

Insert requirements.

Ironmongery

As section P21

Accessories

Not required

Finishing trims

Low threshold

Reveal liners

Standard product features

Accreditation (BS 7412, BS 6375, PAS24):

- Maximum sizes tested:

  • Single leaf: 900 mm wide x 2150 mm high.
  • Coupled side panel: 1100 mm wide x 2150 mm high.
  • Open-in or open-out, double glazed, with or without mid-rail, standard or low PVC-U or aluminium threshold, DK (key-key) D KT (key-thumbturn), with or without letter plate.

- Performance:

  • Air permeability: Class 4.
  • Exposure category: Class A3.
  • Water tightness: Class 3A.

Framing:

70 mm outer frame as standard.

Hardware:

  • Will accept hardware from most manufacturers.
  • Full depth euro-groove.
  • Secure retention of hardware.

Security:

  • Internally glazed as standard.
  • Single doors and with coupled sidelights have been assessed to PAS 24 (enhanced security standard).

Reinforcing:

Galvanized steel profiles optimized for strength and secure hardware attachment.

Seals and gaskets:

Main profiles supplied with high-performance integral multifunctonal seal and gasket.

Thermal insulation:

  • Whole door ‘U’ values comply with Approved Document L (Eng/Wales) Section 6 (Scotland) of the Building Regulations.
  • Lower ‘U’ values can be achieved.
  • Door energy ratings E to A++ can be achieved.

Product Options

Accessories:

Reveal liners and finishing trims.

Fabrication:

  • Fully welded construction as standard.
  • Option for mechanically jointed transom or mullion.

Framing:

  • Dedicated sashes for both inward and outward opening doors.
  • Choice of three transom and mullion sizes (68, 88 and 110 mm).
  • Frame extensions, sills and weathering trims.
  • Lightweight and structural coupling members.
  • Standard and structural bay corner posts.
  • Low threshold to suit inward and outward opening doors to improve access for the disabled and wheelchair users.

Glazing:

  • Choice of four glazing bead styles.
  • Accepts units from 5 mm up to 42 mm thick.
  • Georgian bar and leaded light options.

Features:

  • Designed for use with entrance units and conservatories.
  • Modern shape complements classical and contemporary architecture.
  • Personalisation with glazing bead options.
  • Clip-fit detail ensures positive fixing of accessories.

Ventilation:

Proprietary ventilation devices can be fitted to the doors and sidelights in compliance with Building Regulations.

Digital objects
PlatformCompatibleVersionCertified to
IFC
IFC2X3 1 1.3
Revit
Revit 2016 2 2.0
Download now from NBS National BIM Library
Literature
Third party certifications
  • BS 7412
  • BS 6375
  • PAS24
