Traditional 2500 Casement - C3 Single Opener

Verified by manufacturer over a year ago

Deceuninck Ltd Third party certifications:
  • BSI Kitemark

    BSI Kitemark

    Certificate type

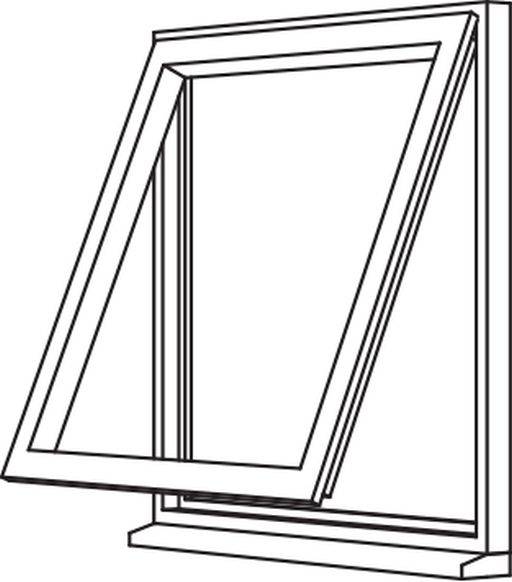

Opening light (top hung) style window with a chamfered design frame.

Jump to:
BOS
 +44 (0)1249 816969 Website

Application

Suitable for commercial projects.

Description

PVC-U casement windows, available in range of styles in three standard finishes.


Years of research and development has resulted in a technically advanced system ideal for commercial projects.

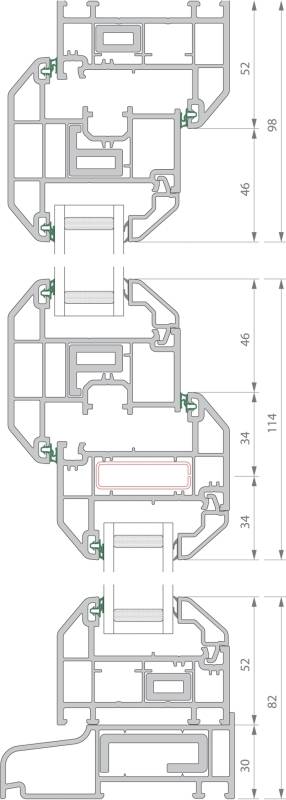

With one sash size (75 mm), two frame sizes (52 mm & 70 mm), and a slim (68 mm) intermediate (88 mm) or large (110 mm) transom/mullion option.


Features and benefits:

  • The Traditional 2500 is a window and door system that offers the best in weather-proofing technology, energy efficiency and security.
  • The system is available in 18 laminate colourways from stock providing the ultimate convenience regarding supply.
  • Environmental product declaration: EPD-QKE-20150313-IBG1-EN.


General information

Shape

Rectangle

Color

White

Guidance for specification option:

RAL 9016 (standard).

Other

Guidance for specification option:

Laminated foil, Decoroc colour (RAL).

Material

PVC-U

Warranty description

Guidance for specification option:

Manufacturer warranty.

Size

Guidance for specification option:

As drawing.

Maximum tested sizes:

  • Top hung: 1200 mm wide x 1500 mm high.
  • Side hung: 900 mm wide x 1400 mm high.
  • Fixed light: 3000 mm wide x 3000 mm high (maximum perimeter: 8000 mm).
  • Multilight windows with reinforced transom or mullions: 2400 mm wide x 2400 mm high (maximum perimeter: 7600 mm; maximum transom or mullion span: 1400 mm).

Uniclass

Pr_30_59_98_92 Unplasticized polyvinyl chloride (PVC-U) window unitsPrimary

CAWS

L10/30 PVC-U windows

L10/350 PVC-U windows

Product range

Casement Window (PVC-U) / Chamfered

Specification data - Unplasticized polyvinyl chloride (PVC-U) window units

Standard

To BS 7412.

Third-party certification

BSI Kitemark.

Dimensions and configurations

Top hung casement.

Product performance

-

Fire performance

-

Fire egress

Not required.

Required.

Guidance for specification option:

Yale F2 egress hinge, Yale Defender egress hinge, Cotswold egress hinge and Nico egress hinge.

Weather performance

-

UK exposure category

To BS 6375, Class A5 (2000 Pa).

Air permeability

To BS 6375, Class 4 (600 Pa).

Watertightness

To BS 6375, Class E1050 (1050 Pa).

Resistance to wind load

To BS 6375, Class A5 (2000 Pa).

Durability

-

Operation and strength characteristics

Operating forces Class 1, resistance to static torsion Class 3 and racking Class 3.

Loadbearing capacity of safety devices

Yale Defender Restricted hinge (350 N).

Nico Restricted hinge (350 N).

Cotswold Sinidex Restricted hinge (350 N).

VBH Delta Restricted hinge (350 N).

Safety

-

Security level

To PAS 24.

Environmental

-

Acoustic performance rating

32—43 dB.

Thermal

-

Whole window U-value

Guidance for specification option:

  • Whole window ‘U’ values comply with Approved Document L (Eng/Wales) Section 6 (Scotland) of the Building Regulations.
  • Lower ‘U’ values can be achieved.
  • Window energy ratings C to A++ can be achieved.

British Fenestration Rating Council Window Energy Rating

A++ to C.

Frame

-

Profile

To BS EN 12608.

Guidance for specification option:

Hollow PVC-U chamfered profile manufactured in accordance with BS EN 12608.

Reinforcement

Galvanized steel.

Colour and texture

White - RAL 9016.

Guidance for specification option:

As standard.

Laminated foil.

Guidance for specification option:

Insert requirement.

Decoroc colour (RAL).

Guidance for specification option:

Insert requirement.

Ventilator

Not required.

Proprietary ventilation device.

Glazing or infill

-

Requirements

Single glazed.

Double glazed.

Triple glazed.

Hardware

Guidance for specification option:

  • Will accept hardware from most manufacturers.
  • Full depth euro-groove.
  • Secure location of hardware.

Operation

-

Type

Manual.

Fixing features

Through frame fasteners.

Fixing lug.

Size (w x h)

As drawing.

Guidance for specification option:

Maximum tested sizes:

  • Top hung: 1200 mm wide x 1500 mm high.
  • Side hung: 900 mm wide x 1400 mm high.
  • Fixed light: 3000 mm wide x 3000 mm high (maximum perimeter: 8000 mm).
  • Multilight windows with reinforced transom or mullions: 2400 mm wide x 2400 mm high (maximum perimeter: 7600 mm; maximum transom or mullion span: 1400 mm).

Outer frame size

52 mm.

70 mm.

Transoms and mullions

68 mm.

88 mm.

110 mm.

Couplings

Not required.

3197 Slimline coupler.

3310 Slimline coupler.

3312 Slimline coupler.

3705 Reinforced coupler.

Show more

Manufacturer guidance

Window frame couplings.

Extensions

Not required.

2455 Head section.

Guidance for specification option:

Accommodates proprietary trickle ventilators

3300 Add-on.

Guidance for specification option:

Allows additional clearance for hinges.

3301 Add-on.

Guidance for specification option:

Accommodates proprietary trickle ventilators.

3302 Add-on.

Guidance for specification option:

Frame build-up for conservatories.

Show more

Manufacturer guidance

Window frame extensions.

Projecting sill

Not required.

3338 Projecting sill.

Guidance for specification option:

150 mm.

3339 Projecting sill.

Guidance for specification option:

180 mm.

3258 End cap.

Guidance for specification option:

For 3338 Projecting sill.

3259 End cap.

Guidance for specification option:

For 3339 Projecting sill.

Manufacturer guidance

Window frame projecting sill.

Stub-sill

Not required.

3337 Stub-sill.

Guidance for specification option:

95 mm.

3257 End cap.

Guidance for specification option:

For 3337 Stub-sill.

Manufacturer guidance

Window frame stub sill.

Low threshold

Not required.

2976 AM3-70 open-in low threshold.

2977 AM5EX-70 open out low threshold.

Manufacturer guidance

Window frame low threshold.

Weather bars

Not required.

3303 Head drip.

3306 Weather bar.

Manufacturer guidance

Window frame weather bars.

Bay corner posts

Not required.

3196 Bay post.

Guidance for specification option:

Fixed 135° angle.

3313/3327 Slimline bay pole and adaptor.

Guidance for specification option:

Angles from 138°-222°.

6916/ 3311 Bay pole and adaptor.

Guidance for specification option:

Angles from 90°-270°.

6920 90° Square corner post.

Show more

Manufacturer guidance

Window frame bay corner posts.

Options

Not required.

Georgian bars.

Leaded lights.

Manufacturer guidance

Glazing options.

Thickness

5—42 mm.

Manufacturer guidance

Glazing thickness.

Ironmongery

As section P21.

Bead

Internal.

Type

Chamfered.

Guidance for specification option:

As standard.

Other.

Guidance for specification option:

Four glazing bead styles available.

Manufacturer guidance

Beading type.

Seal

Weatherseal.

Guidance for specification option:

High-performance integral multifunctional seal/ gasket.

ThermalTransmittance

0.85.

Hinges

Yale F2 hinge.

Yale Defender hinge.

Cotswold Sinidex hinge.

Nico hinge.

Manufacturer guidance

Hardware hinge options.

Securing

Yale Encloser espag.

Maco RAIL espag.

Roto TSL espag.

Kenricks Easy-Fit espag.

Yale Shootbolt espag.

Show more

Manufacturer guidance

Hardware securing device options.

BIM objects

BOS

NBS BIM Object Standard

This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.

Find out more about the NBS BIM Object Standard.

Platform Compatible Version
IFC

IFC2X3

1

Revit

Revit 2016

2

Third party certifications

BSI Kitemark

BSI Kitemark

PAS24 certificate - Doors

Literature

09. Specification Guide - Traditional 2500 chamfered series windows & doors

09. Specification Guide - Traditional 2500 chamfered series windows & doors
