Townscape PAS 68 Counter Terror Concrete Block Planter Ultra Shallow Mount - Hostile Vehicle Mitigation Planter

Verified by manufacturer 23 days ago

Artisan Precast Concrete Exposed Cleehill Dark Grey

Townscape Products Ltd Variant:

Precast concrete planter with 15 mm chamfers to all edges.

Jump to:
+44 (0)1623 513355 Website

Application

Hostile vehicle mitigation measures designed to protect public spaces from vehicle attacks.

Description

Counter terror block vehicle defence barrier planter with 15 mm chamfer edges as standard.


Features and benefits:

  • PAS 68:2010 tested.
  • Block vehicle defence barrier.
  • 15 mm chamfers to all edges.
  • A range of artisan concrete finishes.
  • Optional timber deck cladding and integrated LED lighting.


Speed rating options:

  • 30 mph test – single block: V/7500/N2/48/90/6.6/0.0.
  • 40 mph test – single block: V/7500/N2/64/90/12.3/2.2.

Tested block size 1490 x 990 x 600 mm.

General information

Color

Finish

Smooth

Textured

Guidance for specification option:

Exposed aggregate.

Material

Precast concrete

Timber

Shape

Rectangle

Length

1490 mm

2000 mm

2500 mm

3000 mm

1790 mm

Width

990 mm

1525 mm

Height

1000 mm

Uniclass

Pr_45_63_63_15 Concrete and reconstituted aggregate plant containersPrimary
Pr_20_76_08_67 Precast concrete bollards

CAWS

Q50/31 Bollards

Q50/190 Bollards

Q31/292 Prefabricated plant containers

Q10/25 Concrete block

Q10/150 Concrete block

Specification data - Concrete and reconstituted aggregate plant containers

Material

Concrete.

Colour

Cleehill dark grey.

Shape

Rectangle.

Dimensions

1490 x 990 x 1000 mm.

2000 x 990 x 1000 mm.

2500 x 990 x 1000 mm.

3000 x 990 x 1000 mm.

1790 x 1525 x 1000 mm.

Drainage holes

Manufacturer's standard.

Manufacturer guidance

Consult manufacturer for further information.

Finish

Exposed aggregate.

Standard

In accordance with PAS 68.

Speed rating

30 mph test – single block: V/7500/N2/48/90/6.6/0.0.

40 mph test – single block: V/7500/N2/64/90/12.3/2.2.

Edge

15 mm chamfered edge.

Timber

Not required.

Hardwood deck cladding to all sides.

Accessories

Not required.

Integrated LED lighting.

Sustainability data

Contains Red List materials

No

Country of product manufacture

United Kingdom

Material

Precast concrete

Timber

Manufacturing plant location

Recyclability

100%

Expected Life

25 year

Literature

Townscape 1490x990x1000 HVM Concrete Planter Specification Sheet VED0044PLT

Townscape 1490x990x1000 HVM Concrete Planter Specification Sheet VED0044PLT

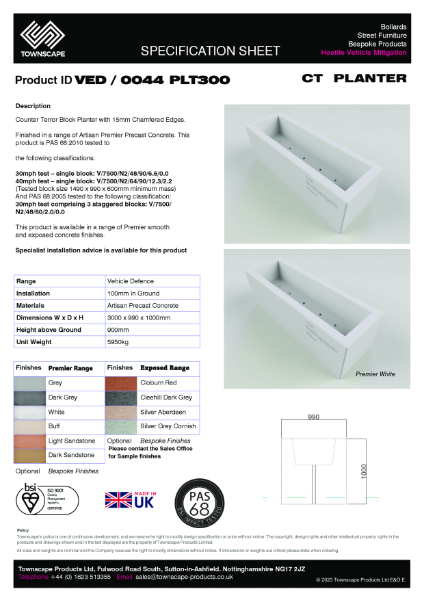

Townscape 3000x990x1000 HVM Concrete Planter Specification Sheet VED0044PLT300

Townscape 3000x990x1000 HVM Concrete Planter Specification Sheet VED0044PLT300

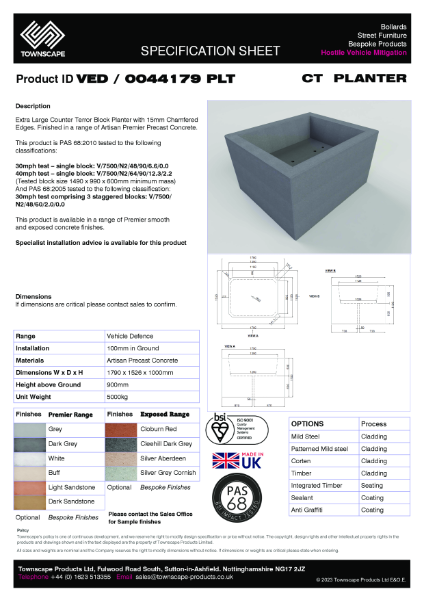

Townscape 1800x1525x1000 HVM Concrete Planter VED0044179PLT

Townscape 1800x1525x1000 HVM Concrete Planter VED0044179PLT
