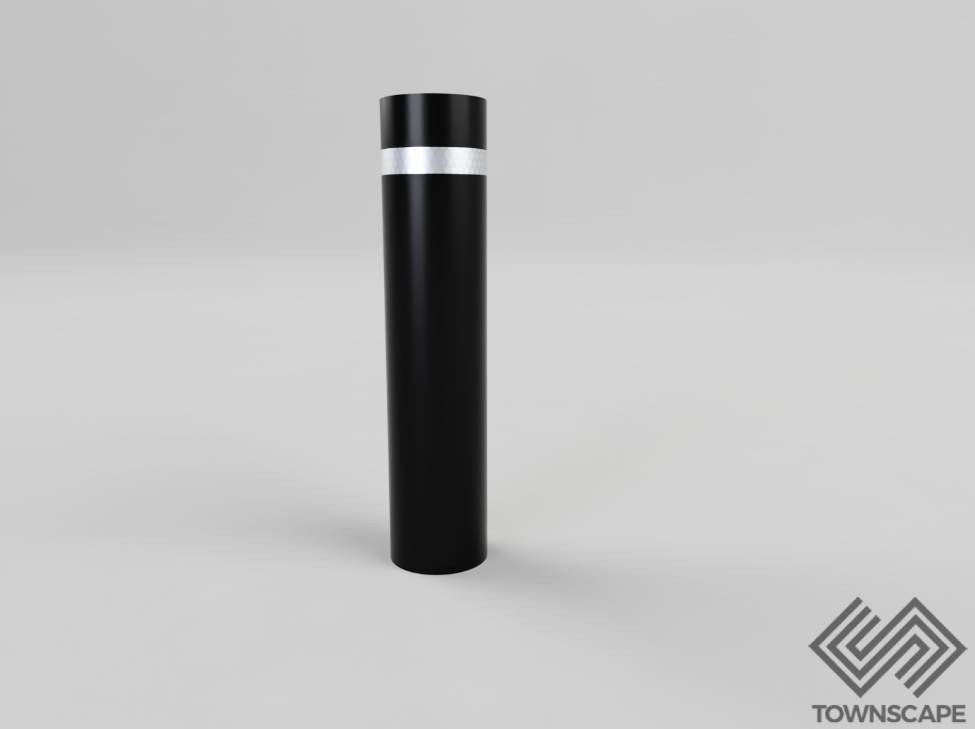

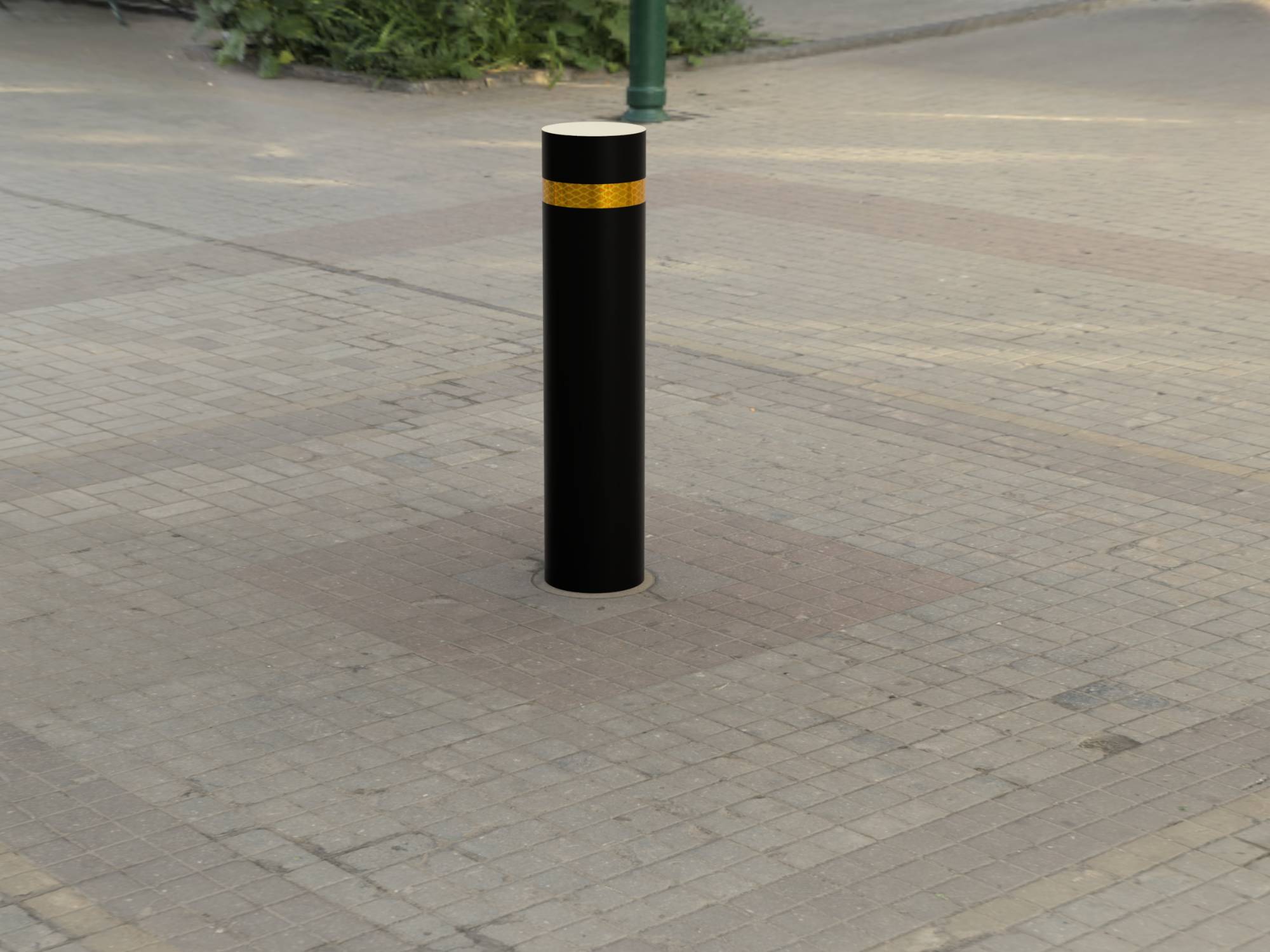

Townscape PAS 68 Bollard CT30 - Hostile Vehicle Mitigation Bollard
Verified by manufacturer 14 days ago
High security bollard designed to mitigate vehicle attacks.
Application
Counter terror bollard suitable for use as a hostile vehicle mitigation measure designed to protect public spaces from vehicle attacks.
Description
CT 30 N2/01 mild steel counter terror bollard – 219 mm – with below ground fix.
The CT30 N2/01 is a high security bollard designed to mitigate a vehicle attack at 48 kph. The bollard has been successfully tested and approved by the CPNI. The normal spacing for bollards will be 1200 mm. A reinforced foundation design will be required for this product.
Features and benefits:
- PAS 68:2010 tested.
- Bellow ground fix.
- Counter terror bollard.
- Successfully tested and approved by the CPNI.
- Additional cost sleeve options are available if required.
Speed rating:
- 30 mph test – fixed bollard: V/7500[N2]/48/90:0.0/0.0.
General information
Color | Beige Black Blue Brown Cream |
Finish | Galvanized Powder-coated |
Material | Steel Stainless steel Polymer |
Shape | Circle |
Length | 219 mm |
Width | 219 mm |
Height | 1600 mm |
Uniclass | |
CAWS | Q50/31 Bollards Q50/190 Bollards |
Specification data - Carbon steel bollards
Classification data | |
Standard | In accordance with PAS 68. |
Duty | Heavy. |
Dimensions | |
Size and profile | ⌀219 mm. |
Height | 1000 mm. Manufacturer guidanceAbove ground. |
Length below ground | 600 mm. |
Post top | Flat. |
Post base | Flat. |
Finishes | |
Applied finish | Galvanized. Powder-coated. |
Colour | Manufacturer guidanceDependent on finish. Consult manufacturer and insert requirements. |
Accessories | Not required. Band on sleeve. Removeable bollard. Wessex cycle rack single. Wessex cycle rack double. Guidance for specification option: Available with stainless steel sleeve only. Sheffield cycle rack single. Guidance for specification option: Available with stainless steel sleeve only. Sheffield cycle rack double. Guidance for specification option: Available with stainless steel sleeve only. |
Bollard Sleeve Topping | Not required. Stainless steel premium diamond sleeve. Stainless steel premium diamond sleeve mitred. Polymer senator sleeve. Polymer statesman sleeve. Polymer Manchester sleeve. Polymer Gunwharf sleeve. |
Speed rating | 30 mph test – fixed bollard: V/7500[N2]/48/90:0.0/0.0. |
Sustainability data
Contains Red List materials | No |
Country of product manufacture | United Kingdom |
Material | Steel Stainless steel Polymer |
Expected Life | 25 year |
Literature
PAS 68 Bollard CT30 Specification Sheet VED0009
PAS 68 Removeable Bollard CT30 Specification Sheet VED0009R
