Tower and barrel bolts
Description

A range of tower and barrel door bolts in a variety of materials and sizes.

General information

Uniclass 2015

Pr_30_36_08_77 Single point boltsPrimary

CAWS

P21/34 Door bolts

P21/582 Door bolts

Specification data - Single point bolts

Product Reference

Tower and barrel bolts

Type

900.17.940

Necked barrel bolt, 102 x 25 mm, polished brass

900.17.941

Necked barrel bolt, 102 x 25 mm, satin nickel plated

911.62.481

Necked barrel bolt, 102 x 25 mm, satin anodized aluminium

900.17.942

Necked barrel bolt, 152 x 32 mm, polished brass

900.17.943

Necked barrel bolt, 152 x 32 mm, satin nickel plated

911.62.482

Necked barrel bolt, 152 x 32 mm, satin anodized aluminium

900.17.932

Straight barrel bolt, 76 x 25 mm, polished brass

900.17.936

Straight barrel bolt, 76 x 25 mm, satin nickel plated

911.62.477

Straight barrel bolt, 76 x 25 mm, satin anodized aluminium

900.17.933

Straight barrel bolt, 102 x 32 mm, polished brass

900.17.937

Straight barrel bolt, 102 x 32 mm, satin nickel plated

911.62.478

Straight barrel bolt, 102 x 32 mm, satin anodized aluminium

900.17.934

Straight barrel bolt, 152 x 32 mm, polished brass

900.17.938

Straight barrel bolt, 152 x 32 mm, satin nickel plated

911.62.479

Straight barrel bolt, 152 x 32 mm, satin anodized aluminium

900.17.935

Straight barrel bolt, 203 x 32 mm, polished brass

900.17.939

Straight barrel bolt, 203 x 32 mm, satin nickel plated

911.62.480

Straight barrel bolt, 203 x 32 mm, satin anodized aluminium

911.62.492

Bow handle bolt, 305 mm

911.62.493

Bow handle bolt, 457 mm

938.15.009

Foot bolt

911.62.494

Monkey tail bolt, 305 mm

911.62.495

Monkey tail bolt, 457 mm

911.62.491

Padlock bolt, Brenton pattern

911.62.550

Heavy duty tower bolt

911.62.489

Necked tower bolt, 152 mm

911.62.490

Necked tower bolt, 209 mm

911.62.551

Stainless steel tower bolt

911.62.487

Straight tower bolt, 152 mm

911.62.488

Straight tower bolt, 203 mm

Accessories

911.62.060

Dust excluding socket, 9 mm shoot, polished chrome

911.62.061

Dust excluding socket, 9 mm shoot, polished brass

911.62.062

Dust excluding socket, 11 mm shoot, polished chrome

911.62.063

Dust excluding socket, 11 mm shoot, polished brass

911.62.066

Dust excluding socket, 11 mm shoot, polished chrome

911.62.496

Dust excluding socket, polished brass

911.62.497

Dust excluding socket, satin nickel plated

900.17.990

Easy clean socket, polished brass plated

900.17.991

Easy clean socket, satin nickel plated

4 mm diameter

Hospa special fixing screws

8 mm diameter

Hospa special fixing screws

10 mm diameter

Hospa special fixing screws

911.62.499

Square bolt receiver plate

911.62.500

Square bolt receiver staple

911.62.498

Square bolt socket

Standard product features

Materials:

  • Aluminium: Available in satin anodized finish.
  • Brass: Available in polished brass or satin nickel plated.
  • Steel: Galvanized or powder coated.

Product Options

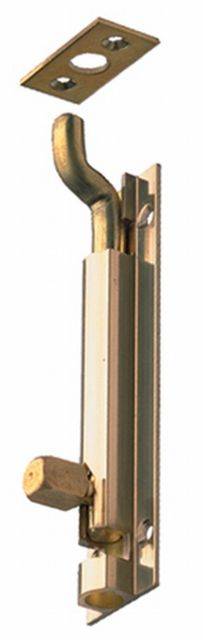

Necked barrel bolt:

  • Face fixing.
  • Staple included.
  • Fixing screws included.
  • Material: Aluminium or brass.

900.17.940 and 941, and 911.62.481.

  • Dimensions: 102 x 25 mm.

900.17.942 and 943, and 911.62.482.

  • Dimensions: 152 x 32 mm.

Straight barrel bolt:

  • Face fixing.
  • Staple included.
  • Fixing screws included.
  • Material: Aluminium or brass.

900.17.932 and 936, and 911.62.477.

  • Dimensions: 76 x 25 mm.

900.17.933 and 937, and 911.62.478.

  • Dimensions: 102 x 32 mm.

900.17.934 and 938, and 911.62.479.

  • Dimensions: 152 x 32 mm.

900.17.935 and 939, and 911.62.480.

  • Dimensions: 203 x 32 mm.

Bow handle bolt:

  • Length: 305 and 457 mm.
  • Back plate: 186 or 222 x 57 mm.
  • 16 mm diameter shoot bolt.
  • Face fixing.
  • Material: Galvanized steel.
  • Fixing screws to be ordered separately: 10 mm diameter Hospa special screws.
  • Receiver plate or staple required, ref: 911.62.499 or 500.

Foot bolt:

  • Dimensions: 187 x 51 mm.
  • Base plate: 51 x 51 mm, included.
  • 16 mm diameter shoot bolt.
  • Face fixing.
  • Material: Galvanized steel.
  • Fixing screws to be ordered separately: 4 mm diameter Hospa special screws.

Monkey tail bolt:

  • Length: 305 and 457 mm.
  • Back plate: 186 and 222 x 57 mm.
  • 16 mm diameter shoot bolt.
  • Face fixing.
  • Material: Galvanized steel.
  • Fixing screws to be ordered separately: 10 mm diameter Hospa special screws.
  • Receiver plate or staple required, ref: 911.62.499 or 500.

Padlock bolt, Brenton pattern:

  • Dimensions: 226 x 44 mm.
  • 12 mm diameter shoot bolt.
  • Face fixing.
  • Staple included.
  • Material: Galvanized steel.
  • Fixing screws to be ordered separately: 8 mm diameter Hospa special screws.

Heavy duty tower bolt:

  • Dimensions: 250 x 62 mm.
  • Suitable for indoor and outdoor use.
  • Electro galvanized shoot bolt.
  • Staple included.
  • Various other keep options are available.
  • Fixing screws not included.
  • Material: Powder coated steel, in pewter finish.

Necked tower bolt:

  • Bolt length: 152 and 209 mm.
  • 11 mm diameter shoot bolt.
  • Face fixing.
  • Staple included.
  • Material: Galvanized steel.
  • Fixing screws to be ordered separately: 4 mm diameter Hospa special screws.

Stainless steel tower bolt:

  • Dimensions: 81 x 55 mm.
  • 12 mm diameter shoot bolt.
  • Staple included.
  • Fixing screws not included.
  • Material: All stainless steel construction.

Straight tower bolt:

  • Bolt length: 152 and 203 mm.
  • 11 mm diameter shoot bolt.
  • Face fixing.
  • Staple included.
  • Material: Galvanized steel.
  • Fixing screws to be ordered separately: 4 mm diameter Hospa special screws.

Accessories:

Dust excluding socket:

911.62.060 to 066.

  • Dimensions: 13, 15 or 19 mm diameter x 36 mm long.
  • Designed to suit 9, 11 or 14 mm diameter shoot bolts.
  • Spring loaded plunger.
  • Material: Brass.
  • Finish: Polished brass or polished chrome.

911.62.496 and 497.

  • Dimensions: 44 mm diameter x 47 mm deep overall.
  • Designed to suit 11 mm diameter shoot bolt.
  • Spring loaded plunger.
  • Screw pattern, fixing screws included.
  • Material: Brass.
  • Finish: Polished brass or satin nickel plated.

Easy clean socket:

  • Dimensions: 63 x 19 mm x 19 mm deep.
  • Designed to suit 13 mm diameter shoot bolt.
  • Supplied with fittings for wood or stone.
  • Material: Zinc diecast.
  • Finish: Polished brass or satin nickel plated.

Hospa special fixing screws:

  • Countersunk head with Pozidriv® cross slot.

Square bolt receiver plate:

  • Dimensions: 51 x 51 mm x 3 mm thick.
  • Soffit fixing plate.
  • Designed to suit 16 mm square shoot bolts.
  • Material: Galvanized steel.
  • Fixing screws to be ordered separately: 10 mm diameter Hospa special screws.

Square bolt receiver staple:

  • Dimensions: 53 x 32 mm.
  • Face fixing.
  • Designed to suit 16 mm square shoot bolts.
  • Designed to suit 16 mm square shoot bolts.
  • Material: Galvanized steel.
  • Fixing screws to be ordered separately: 10 mm diameter Hospa special screws.

Square bolt socket:

  • Dimensions: 49 x 49 mm x 45 mm deep.
  • Cast in pattern.
  • Designed to suit 16 mm square shoot bolts.
  • Material: Galvanized steel.
