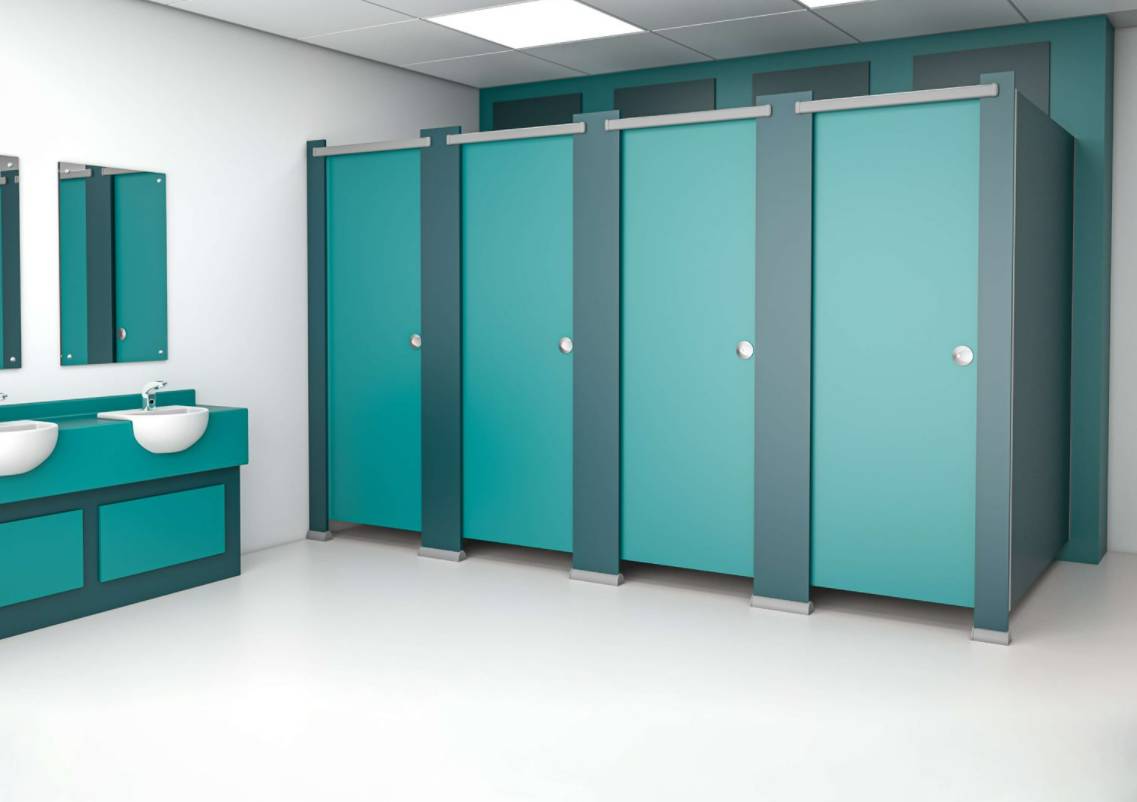

Tough Stuff Panel Cubicle

Verified by manufacturer 5 months ago

MFC

Bushboard Washroom Systems Ltd Variant:

A robust and durable cubicle featuring sturdy floor and wall fixings and robust hardware; ideal for demanding environments.

Jump to:
+44 (0)1536 533620 Website

Application

Suitable for demanding environments, such as secondary schools, universities and staff washrooms.

Description

A tough washroom cubicle available with optional privacy channel and low floor clearance to doors.


Features and benefits:

  • Anti-finger trap hinges as standard.
  • Sturdy floor and wall fixing channels for stability.
  • Through fixed headrail for strength.


Components:

  • HPL: High Pressure Laminate panels, suppled square edged with 1 mm matching PVC lipping.
  • MFC: Melamine faced chipboard panels, supplied square edged with 1 mm matching PVC lipping.
  • SGL: Solid grade laminate panels, supplied with polished black radiused edges.
  • Frame comprising: Pilasters, headrail, legs, hinges and channels.
  • Anti-finger trap hinges come as standard.

General information

Color

Blue

Grey

Manufacturer guidance

34 laminate options and 3 digital prints; select from manufacturer literature.

Finish

Laminated

Guidance for specification option:

Panels.

Smooth

Powder-coated

Guidance for specification option:

Aluminium components.

Material

Laminate

Guidance for specification option:

Panels.

Chipboard

Guidance for specification option:

Core, moisture resistant.

Aluminium

Guidance for specification option:

Frame components.

Shape

Rectangle

Uniclass

Ss_25_12_60_30 Fully-framed panel cubicle systemsPrimary

CAWS

K32/10 Panel cubicles

K32/120 Panel cubicles

Product range

Fully framed cubicles

Specification data - Fully-framed panel cubicle systems

Panels

MFC, 650 kg/mĀ³ grade chipboard backing, square edged.

Guidance for specification option:

  • MFC: Melamine faced chipboard.
  • Moisture resistant chipboard.

Panel supports

Aluminium frames.

Doors

MFC, 650 kg/mĀ³ grade chipboard backing, square edged.

Guidance for specification option:

  • MFC: Melamine faced chipboard.
  • Moisture resistant chipboard.

Lippings

1 mm PVC lipping.

Guidance for specification option:

Supplied.

Hardware

Pilasters, headrail, legs, hinges and channels.

System accessories

Not required.

Soap dispensers.

Paper towel dispensers.

Toilet roll holders.

Hand dryers.

Coat hooks.

Door handles.

Manufacturer guidance

Selection available, consult manufacturer literature.

Pilaster shape

Square.

Floor Clearance

Standard.

Guidance for specification option:

100 mm to doors and partitions.

Other requirements

Not required.

Stylex printed doors.

Colour:

-

Manufacturer guidance

Panels: 34 laminate options and 3 laminate prints; select from manufacturer literature.

Doors, Partitions & Pilasters

Light grey.

Manufacturer guidance

Colour.

Headrail

Light grey.

Manufacturer guidance

Colour.

Faceplate & Pilaster Foot

Light grey.

Manufacturer guidance

Colour.

Hinges & Channels

Light grey.

Manufacturer guidance

Colour.

Overall thickness

19 mm (nominal).

Height

2140mm (overall).

Manufacturer guidance

Panel.
