Tortola Awning - Folding Arm Awning
Verified by manufacturer 4 months ago

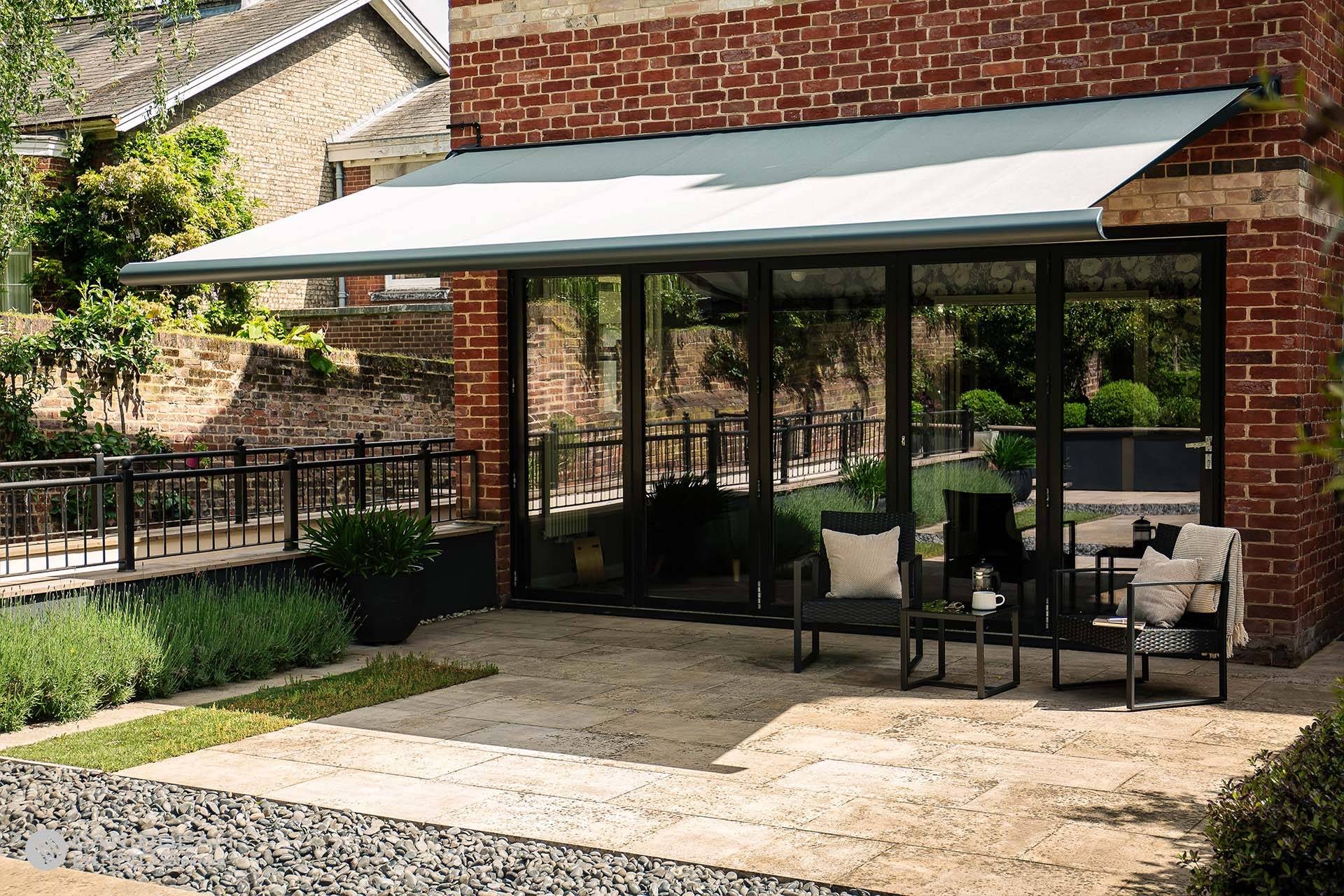

The Tortola awning is our most popular full cassette retractable folding arm awning for residential applications. Available upto 5m wide x 3m projection with an end fix construction for easy mounting.
Application
Suitable for residential and commercial including houses, bungalows, extensions, apartments.
Description
The Tortola Awning is an end fix canopy, offering effective cover to residential patios and smaller outdoor commercial spaces. Powerful folding arms are tensioned using twin hi-tensile, tear resistant, sheathed stainless steel cables and double coiled springs, keeping the fabric taut at every position. The streamline, cylindrical end fix cassette casing is unobtrusive on the façade, protecting the fabric and mechanism when not in use.
Features and benefits:
- Full cassette casing with end fixing points.
- Powerful twin cable tensioned folding arms.
- Adjustable pitch from 0-45° (0-75 cm fall p/m).
- 100’s of hardware (RAL) colours & water repellent fabrics.
- Motorized remote / app control.
- Optional automatic weather sensors (light & wind).
- Face fix and bespoke mounting brackets.
- Up to 5 m wide x 3 m depth.
General information
Color | Manufacturer guidanceAnthracite Grey RAL 7016ST White RAL 9016 Any other RAL colour |
Finish | Powder-coated |
Material | Aluminium Fabric |
Shape | Rectangle |
Length | Bespoke Guidance for specification option: Up to 5m length |
Width | Bespoke Guidance for specification option: Up to 3m width (projection) |
Height | Bespoke |
Warranty description | Five year |
Uniclass | |
CAWS | L10/59 Solar shading system L10/680 Solar shading system B91/330 Canopy |
Specification data - Awnings
Standard | To BS EN 13561. |
Size (width x depth) | Guidance for specification option: Insert requirement, up to 5 m wide x 3 m depth. |
Frame | |
Format | Retractable folding arms.Guidance for specification option: Arms 66 x 25 mm (h x d). |
Material | Powder coated, extruded aluminium. |
Canopy | |
Material | Solution dyed acrylic fabric.Guidance for specification option: World of Sattler collection with TEXgard easy clean coating. |
Colour and pattern | Guidance for specification option: Insert colour code requirement. |
Valance detail | None.Straight.Guidance for specification option: Up to 300 mm high. Loose wave.Guidance for specification option: Up to 300 mm high. |
Headrail | |
Material | Powder coated, extruded aluminium.Guidance for specification option: Cassette 152 x 223 mm (h x d). |
Colour | Anthracite Grey RAL 7016ST.White RAL 9016.Custom RAL.Guidance for specification option: Insert colour code requirement. |
Operation | |
Mode | Integrated radio controlled motor and remote control.Guidance for specification option: Somfy IO motor with 5 m black cable. |
Power supply | 240 v AC.Guidance for specification option: Power draw circa 1.1amps. |
Operating effort | To BS EN 13561, class 2. |
Mechanism endurance | To BS EN 13561, class 2. |
Wind resistance | To BS EN 13561, class 2.Guidance for specification option: Beaufort 5 – 24 mph fresh breeze. |
Total solar energy transmission (maximum) | To BS EN 14501. |
Accessories | Not required.Wind vibration sensor (Eolis 3D wirefree io).Sun & Wind sensor (Soliris wired io).App control (Tahoma switch).LED lighting track beneath cassette (Bermuda, 3,500 k warm white).Infra-red radiant heater (Bahama, 2 kw ultra low-glare). |
Caps | Cast aluminium (colour coded). |
Fixing | Face fix brackets. Top fix brackets. Spreader plates . Cantilever brackets. Stand off brackets. |
Sustainability data
Contains Red List materials | No |
Country of material origin | Belgium |
Country of product manufacture | United Kingdom |
Recyclability | Aluminium is recyclable |
BIM objects
NBS BIM Object Standard
This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.
Find out more about the NBS BIM Object Standard.
| Platform | Compatible | Version |
|---|---|---|
 IFC | - | 1 |
 Revit | - | 1 |
Literature
CB - Tortola Awning | General Arrangement & Mounting | Folding Arm Awning
