Tortola Awning - Folding Arm Awning

Verified by manufacturer 3 months ago

Caribbean Blinds UK Ltd

Retractable folding arm Awning for patios and terraces.

Jump to:
BIM object icon
0344 800 1947 Website

Application

Suitable for residential and commercial including houses, bungalows, extensions, apartments.

Description

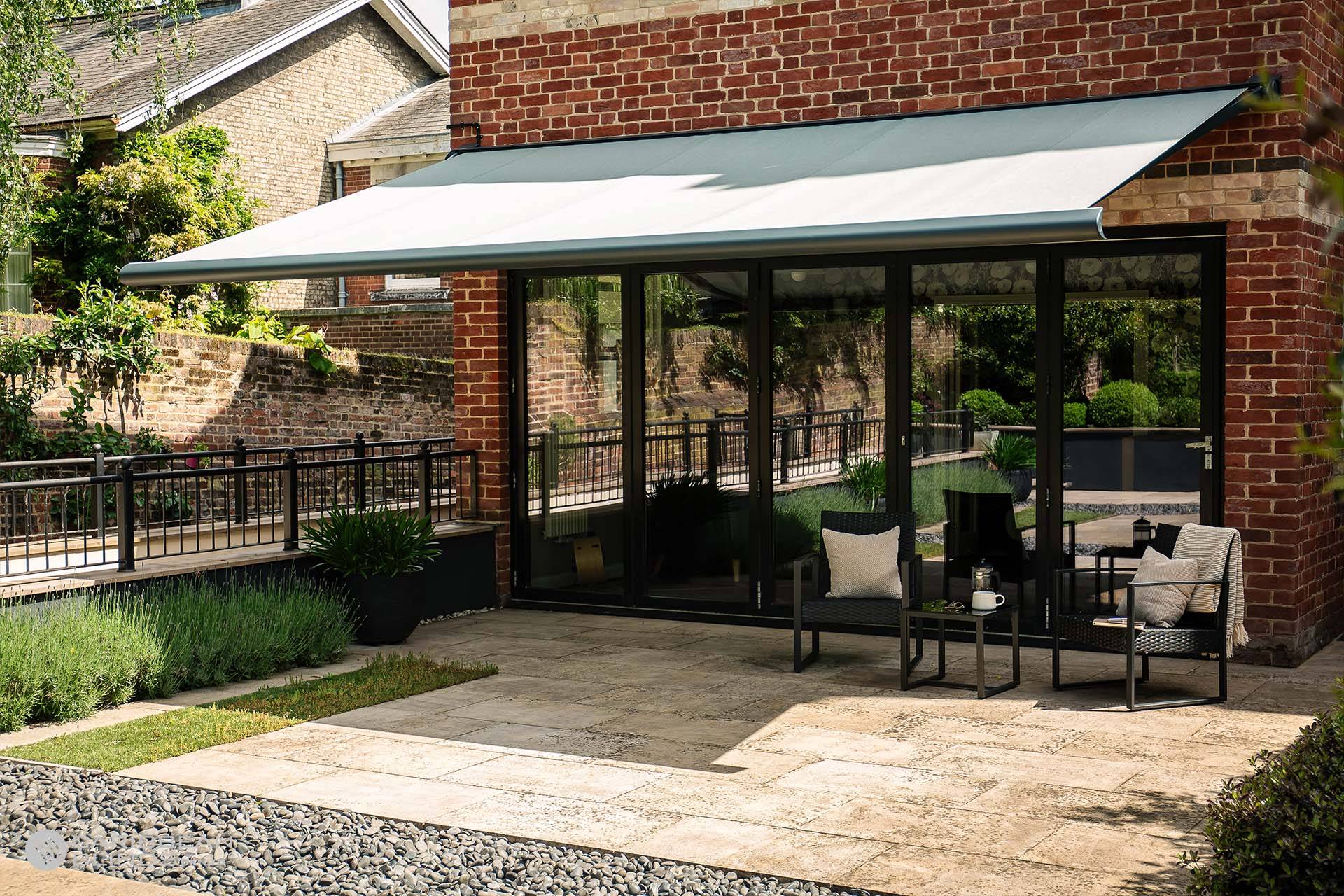

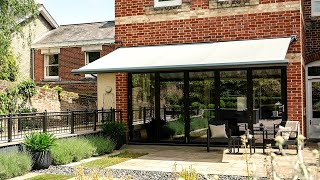

The Tortola Awning is an end fix canopy, offering effective cover to residential patios and smaller outdoor commercial spaces. Powerful folding arms are tensioned using twin hi-tensile, tear resistant, sheathed stainless steel cables and double coiled springs, keeping the fabric taut at every position. The streamline, cylindrical end fix cassette casing is unobtrusive on the façade, protecting the fabric and mechanism when not in use.


Features and benefits:

  • Full cassette casing with end fixing points.
  • Powerful twin cable tensioned folding arms.
  • Adjustable pitch from 0-45° (0-75 cm fall p/m).
  • 100’s of hardware (RAL) colours & water repellent fabrics.
  • Motorized remote / app control.
  • Optional automatic weather sensors (light & wind).
  • Face fix and bespoke mounting brackets.
  • Up to 5 m wide x 3 m depth.


General information

Material

Aluminium

Fabric

Length

Bespoke

Up to 5m length

Width

Bespoke

Up to 3m width (projection)

WarrantyDescription

Five year

Uniclass

Pr_30_59_07_05 AwningsPrimary

CAWS

L10/59 Solar shading system

L10/680 Solar shading system

B91/330 Canopy

Specification data - Awnings

Size (width x depth)

Insert requirement, up to 5 m wide x 3 m depth.

Frame

-

Format

Retractable folding arms.

Arms 66 x 25 mm (h x d).

Material

Powder coated, extruded aluminium.

Canopy

-

Material

Solution dyed acrylic fabric.

World of Sattler collection with TEXgard easy clean coating.

Colour and pattern

Insert colour code requirement.

Headrail

-

Material

Powder coated, extruded aluminium.

Cassette 152 x 223 mm (h x d).

Colour

Anthracite Grey RAL 7016MT.

White RAL 9016SG.

Custom RAL.

Insert colour code requirement.

Operation

-

Mode

Integrated radio controlled motor and remote control.

Somfy IO motor with 5 m black cable.

Power supply

240 v AC.

Power draw circa 1.1amps.

Wind resistance

To BS EN 13561, class 2.

Beaufort 5 – 24 mph fresh breeze.

Accessories

Not required.

Wind vibration sensor (Eolis 3D wirefree io).

Sun & Wind sensor (Soliris wired io).

App control (Tahoma switch).

LED lighting track beneath cassette (Bermuda, 3,500 k warm white).

Infra-red radiant heater (Bahama, 2 kw ultra low-glare).

Environmental information

Country of product manufacture

United Kingdom

BIM objects

BIM object icon

NBS BIM object standard

This BIM object has been authored to meet the requirements of the NBS BIM object standard.

Find out more about the NBS BIM object standard.

Platform Compatible Version
IFC
-

1

Revit
-

1

Literature

CB - Tortola Awning | General Arrangement & Mounting | Folding Arm Awning

CB - Tortola Awning | General Arrangement & Mounting | Folding Arm Awning
