Toplight C

Verified by manufacturer 8 months ago

Tarmac

Lightweight structural concrete.

Jump to:
Website

Application

Can be used in any application where normal weight concrete is specified as follows:

  • To create lighter concrete slabs, foundations, floors and walls.
  • To reduce loads on structures, or composite decking.

Description

Lightweight structural concrete produced using specialist engineered high strength lightweight aggregate and admixtures to provide much lower densities compared to standard conventional concrete.


Features and benefits:

  • Reduces the weight over conventional concrete by 30% (Structural) or 60% (Non-structural).
  • Can be produced with a density of 1800-1900 kg/m³.
  • Structural concrete strengths can be gained up to 50N/mm² compressive strength with non-structural mixes being possible with densities as low as 1000 kg/m³.
  • Reduces the need for propping on metal deck floors improving completion times.
  • Environmentally friendly – the lightweight aggregate is an expanded raw material, producing 300% more aggregate per cubic metre than quarried aggregates thereby reducing demand on natural resources.
  • Can be pumped and placed like normal weight concrete.
  • Improved fire resistance over normal weight concrete.
  • Can support the reduction in steel and foundation size in structures.
  • Improved thermal and acoustic properties over normal weight concrete.
  • Reduces cold bridging.

General information

Color

-

Manufacturer guidance

Custom.

Finish

Smooth

Material

Concrete

Guidance for specification option:

Lightweight structural concrete.

Shape

Formless

Uniclass

Pr_20_31_16_68 Proprietary concretesPrimary

CAWS

E10/181 Proprietary high strength concrete

Specification data - Proprietary concretes

Ready mixed concrete producer

-

Third party accreditation

BSi Kitemark.

Standards

To BS EN 13055.

Guidance for specification option:

Designed in accordance with BS EN 206-1 and BS 8500.

Compressive strength

-

Target compressive strength of foamed concrete

<50 N/mm².

Design chemical class

-

Manufacturer guidance

Consult manufacturer and insert requirement.

Exposure class

-

Manufacturer guidance

Consult manufacturer and insert requirement.

Consistence class

-

Manufacturer guidance

Consult manufacturer and insert requirement.

Aggregates

-

Nominal size (maximum)

0/4–10/20mm.

Colour

-

Manufacturer guidance

Custom. Insert requirements.

Texture

Guidance for specification option:

Consult manufacturer and insert requirement.

Additional mix component requirements

Lightweight aggregates.

Properties of foamed concrete

-

Dry density (maximum)

1900 kg/m³.

Guidance for specification option:

Structural.

Dry density (minimum)

1000 kg/m³.

Guidance for specification option:

Non-structural.

Literature

Tarmac Toplight C - Lightweight structural concrete

Tarmac Toplight C - Lightweight structural concrete

Case studies

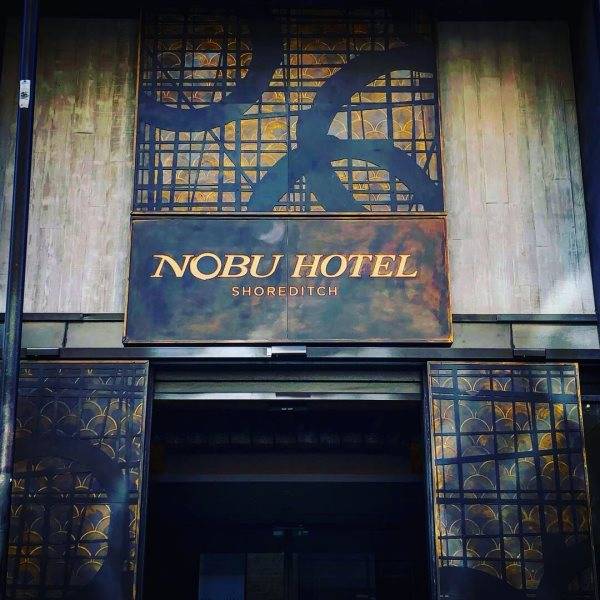

Weight saving structural concrete for hotel rooftop extension

Weight saving structural concrete for hotel rooftop extension

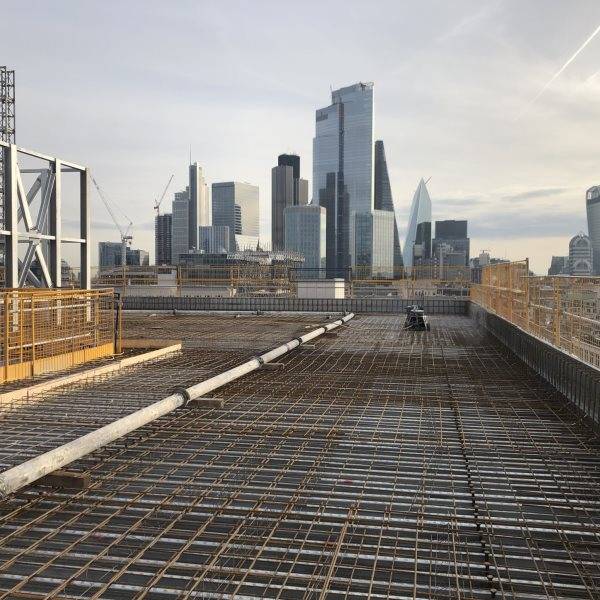

Lightweight structural concrete for composite metal deck floor extension

Lightweight structural concrete for composite metal deck floor extension
