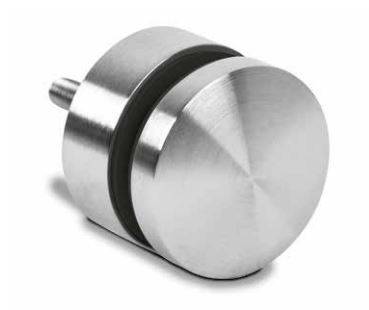

TL-2060 - Glass Adaptor System - Point Fixings

Verified by manufacturer 2 months ago

OnLevel Ltd Product certifications:
  • Load Tolerance Test Certificate

    Certificate type

Glass point fixings, for use in balustrades and Juliet balcony systems.

Jump to:
BOS
+44 (0)161 8049500 Website

Application

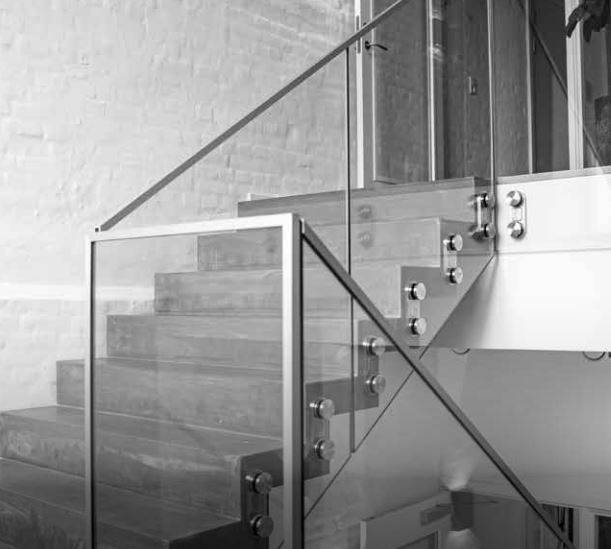

For balustrades and balconies (in correlation with OnLevel Ltd systems).

Description

Glass point fixings, for use in balustrades and Juliet balcony systems.

Features and benefits:

  • Precise point fixing.
  • Effortless installation.
  • Integrates seamlessly into the finished solution.
  • Tested for 0.74 kN and 1.5 kN loading (dependant on glass thickness).
  • Suitable for glass thickness from 13.52–21.52 mm.
  • M12 detachable fixing bar.
  • Tested to BS 6180: 2011.

General information

Color

Silver

Finish

Satin

Material

Stainless steel

Shape

Other

Length

120 mm

130 mm

140 mm

150 mm

160 mm

Width

60 mm

Guidance for specification option:

Point head diameter.

Uniclass

Pr_20_29_34_86 Stainless steel point connectorsPrimary

CAWS

L30/560 Proprietary balustrades

L30/55 Proprietary balustrades

SKU Code

TL-2060

Specification data - Stainless steel point connectors

Material

Stainless steel, Grade 1.4301 (304).

Guidance for specification option:

Internal application.

Stainless steel, Grade 1.4401 (316).

Guidance for specification option:

External application.

Finish

Satin-polished.

Connection

-

Type

Fixed head.

Number of legs

One.

Dimensions

120 x 10 mm.
130 x 20 mm.
140 x 30 mm.
150 x 40 mm.
160 x 50 mm.

Manufacturer guidance

Length x fixing depth.

Sustainability data

Country of product manufacture

Germany

Material

Stainless steel

BIM objects

BOS

NBS BIM Object Standard

This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.

Find out more about the NBS BIM Object Standard.

Platform Compatible Version
Revit
-

1

IFC
-

1

Product certifications

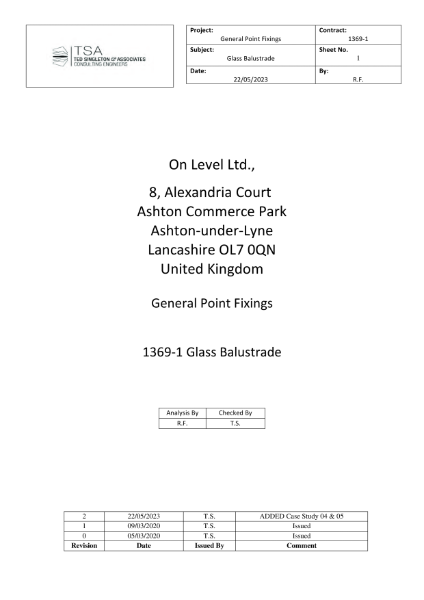

Load Tolerance Test Certificate

Load Tolerance Test Certificate

TSA TL-2060 Test Report

Literature

TL-2060 Flyer

TL-2060 Flyer
