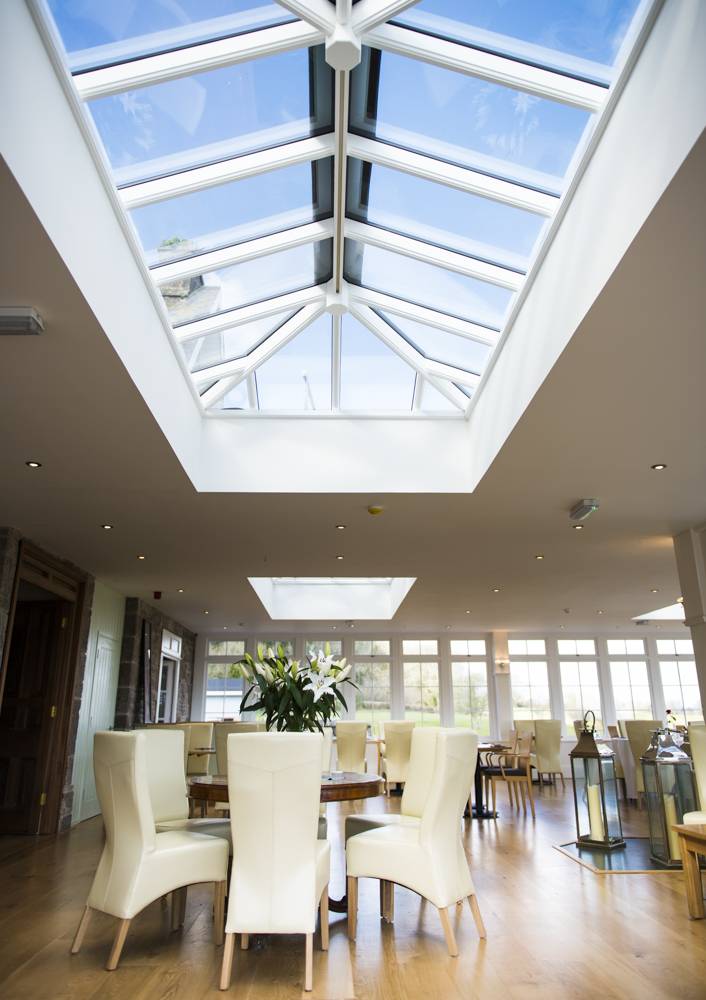

Timber Roof Lantern
Hipped timber roof lantern - manufactured with a simple installation in mind and designed with unique slotted dovetail, mortise and tenon joints and pre-drilled fixing holes.
Timber roof lanterns are manufactured with a simple installation in mind and are designed with unique slotted dovetail, mortise and tenon joints and pre-drilled fixing holes.
Our unique roof system is manufactured by our highly skilled engineers and joiners utilising 5 axis CNC routers with robotic loading.
A full range of glazing options can be accommodated. These include solar control, easy clean and laminated, but anything commercially available can be fitted, including switchable or bullet proof options.
Roof glass units sit on top of a specially designed gasket system, acting as protection against water ingress. Our lantern roofs are capped and finished with a low maintenance aluminium capper which can be powder coated to closely match the timber colour, or another colour of your choosing.
Color | Any RAL |
Features | David Salisbury lantern roofs can be manufactured to a range of sizes, pitch and roof designs including gabled lanterns. Opening roof vents can be added to the product with manual, switched electric or thermostatic and rain sensor operation all available. Standard roof glass is a stepped, double glazed unit however a range of glass options are available including solar control, easy-clean, triple glazed etc. Externally roofs are finished with powder-coated aluminium capping and a ridge designed to lead over on fitting |
Finish | 3 coat, Teknos, microporus, water-based paint system. 30% gloss |
Material | Engineered Siberian Larch, Sapele or European Oak options available |
Shape | Cuboidal |
WarrantyDescription | http://www.davidsalisburycommercial.co.uk/terms.html |
Uniclass 2015 |
| Platform | Compatible | Version | Certified to |
|---|---|---|---|
 Revit | - | 1 | 1.2 |
